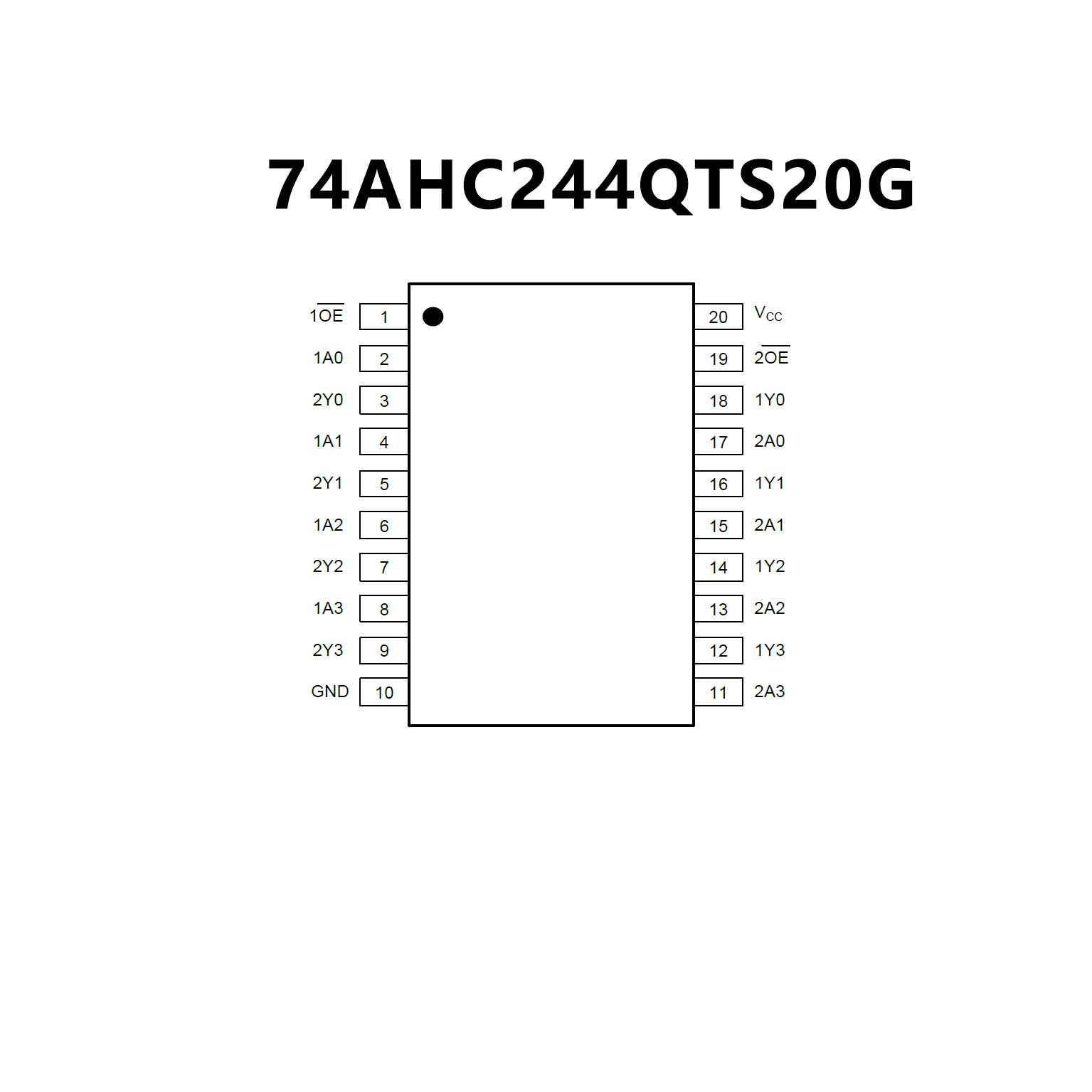

74AHC244Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1TA = -40℃ to +125℃
? Wide Supply Voltage Range: 2.0V to 5.5V
? All Inputs with Schmitt-Trigger Action
? Input Level: CMOS Level
? CMOS Low Power Dissipation
? Inputs are Over-Voltage Tolerant
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-20 Package
? Automotive product qualification
in accordance with AEC-Q100 (Grade 1)
? Specified from -40 °C to +85 °C
and from -40 °C to +125 °C
? Wide supply voltage range from 2.0 V to 5.5 V
? Balanced propagation delays
? All inputs have Schmitt-trigger action
? Overvoltage tolerant inputs to 5.5 V
? High noise immunity
? CMOS low power dissipation
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V (C = 200 pf, R = 0 Ω)
? Latch-up performance exceeds
100 mA per JESD 78 Class II Level A
? Multiple package options
? DHVQFN package with Side-Wettable Flanks
enabling Automatic Optical Inspection (AOI) of solder jointsel
