8-Bit Dual-Supply Bus Transceiver With Configurable Voltage Translation and Tri-State Outputs, 74AXC8T245 P2P SN74AXC8T245RHL.
74AXC8T245.pdf優(yōu)勢(shì)替代
FEATURES
? Qualified fully configurable dual-rail design allows
each port to operate with a power supply range
from 0.65V to 3.6V
? Operating temperature from –40°C to +125°C
? Multiple direction-control pins to allow
simultaneous up and down translation
? Up to 380Mbps support when translating from
1.8V to 3.3V
? VCC isolation feature to effectively Isolate both
buses in a power-down scenario
? Partial power-down mode to limit backflow current
in a power-down scenario
? Compatible with SN74AVC8T245 and
74AVC8T245 level shifters
? Latch-up performance exceeds 100mA per JESD
78, class II
? ESD protection exceeds JESD 22
– 8000-V human-body model
– 1000-V charged-device model

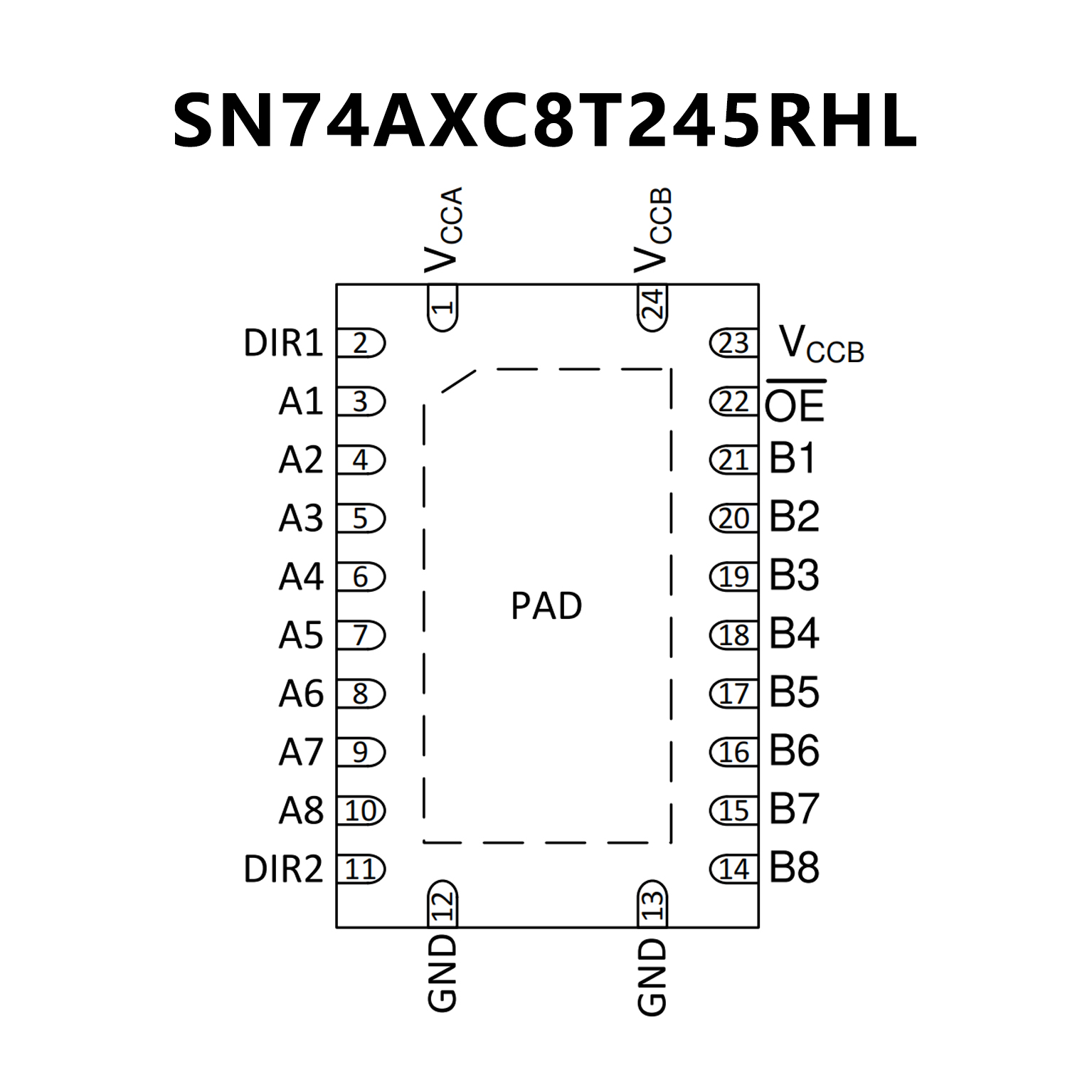

PIN CONFIGUTION
