Single 2 input AND gate, 74LVC1G08XN5G Replace 74LVC1G08GV
74LVC1G08XN5G.pdf優(yōu)勢替代
FEATURES
? Wide supply voltage range from 1.65 V to 5.5 V
? High noise immunity
? ±24 mA output drive (VCC = 3.0 V)
? CMOS low power dissipation
? Direct interface with TTL levels
? Overvoltage tolerant inputs to 5.5 V
? IOFF circuitry provides partial
Power-down mode operation
? Latch-up performance ≤ 250 mA
? Complies with JEDEC standard:
? JESD8-7 (1.65 V to 1.95 V)
? JESD8-5 (2.3 V to 2.7 V)
? JESD8C (2.7 V to 3.6 V)
? JESD36 (4.5 V to 5.5 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? Multiple package options
? Specified from ?40 °C to +85 °C
and ?40 °C to +125 °C

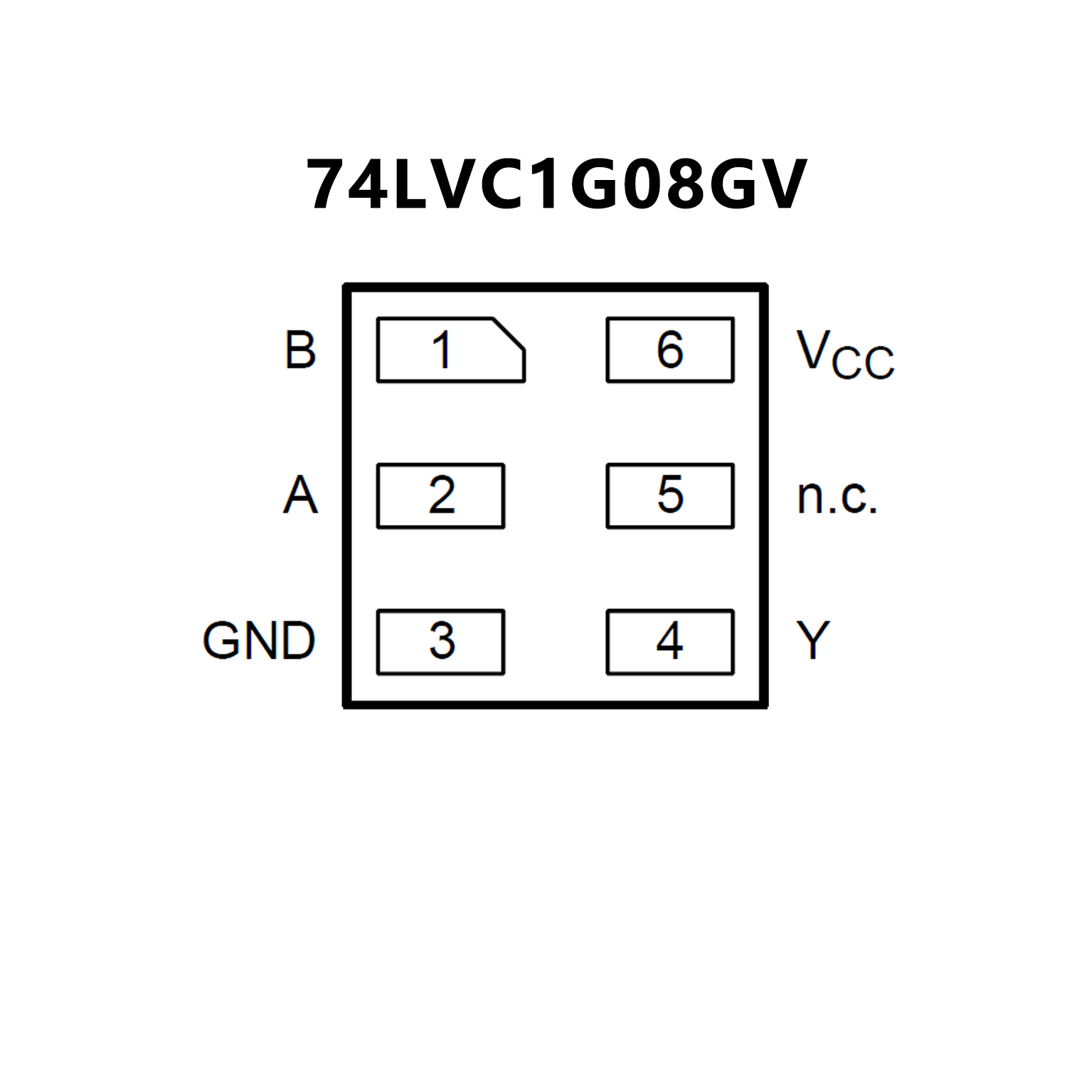

PIN CONFIGUTION
