20V,250mA Low Consumption LDO in SOT89, ACP1233 Replace XC6202.
ACP1233
ACP1233.pdf
ACP1233.pdfFEATURES
? Input Voltage Range: 2.5V to 16V
? Maximum Output Current: 250mA
? VOUT Range: 1.2V to 5V
? Maximum Output Current: 250mA
? Highly Accurate: ±2%
? Output Current Limit: 500mA
? Foldback Short Circuit Current: 85mA
? Small Dropout Voltage:
211mV@100mA (VOUT = 3.3V)
418mV@200mA (VOUT = 3.3V)

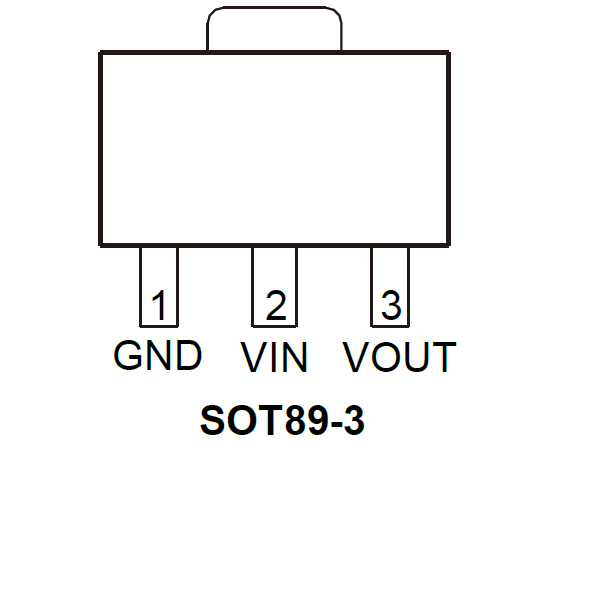

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Maximum Output Current : 150mA (within Pd)
? Maximum Operational Voltage : 20V
? Output Voltage Range : 1.8V ~ 18V (0.1V increments)
? Highly Accurate : ±2%
? Low Power Consumption : 10μA (TYP.)
? Line Regulation : 0.01% / V (TYP.)
? Dropout Voltage : 200mV @ 30mA
670mV@100mA
? Operational Temperature Range : -40℃ ~ 85℃
? Low ESR Capacitor Compatible : Ceramic capacitor

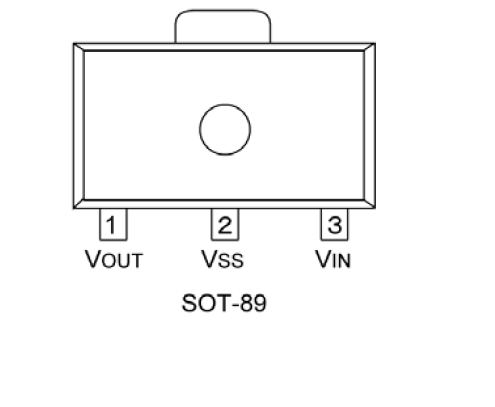

PIN CONFIGUTION
