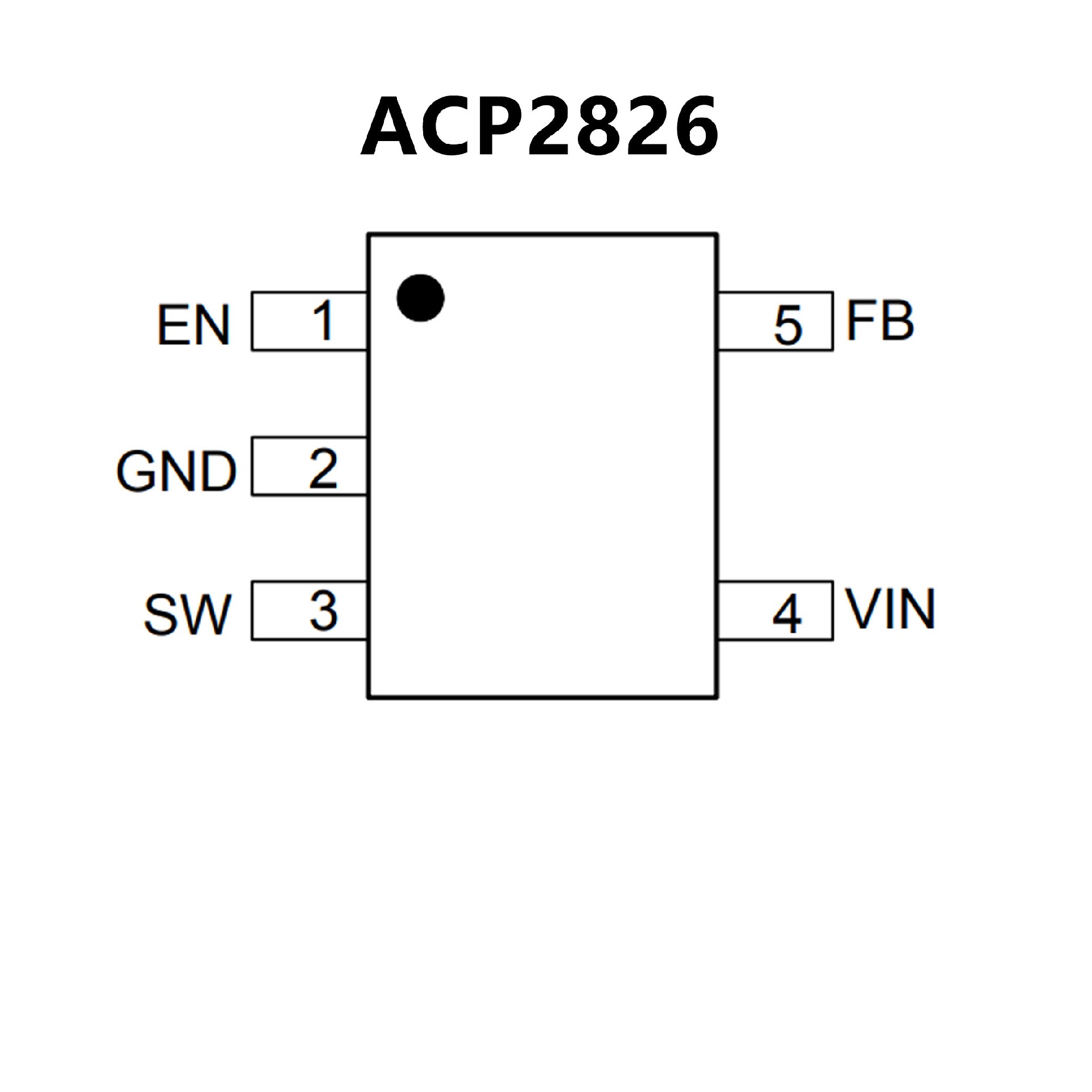

ACP2826.pdf? Operating Voltage Range: 2.4V ~ 6V
? Adjustable Output with 0.6V Reference Voltage
? Guaranteed 2A Output Current
? Automatic PFM Mode at Light Load
? Low dropout 100% Duty Operation
? High 1MHz Operating Frequency
? Maximum 1μA Shutdown Current
? Internal Soft Start Function
? Excellent Line and Load Transient Response
? Short Circuit Protection
? Input Over Voltage Protection
? Under Voltage Lockout Protection
? Thermal Shutdown Protection
? Efficiency Up to 95%
? 2A Converter With Built-In 100mΩ/70mΩ Low RDS(ON)
Power FETs
? Input Supply Voltage Range : 2.7V to 6V
? Output Voltage Range : 0.6V to 3.4V
? Current Mode Constant On-Time (CMCOT) Control
? Ultrafast Transient Response
? No Needs For External Compensations
? Optimized for Low-ESR Ceramic Output Capacitors
? 0.6V ±1.2% High-Accuracy Feedback Reference Voltage
? LS FETs Protection for Robust Over-Current Protection
? Fixed Switching Frequency : 1MHz (typ.)
? Internally Soft-Start Function
