ACP2826.pdf? Operating Voltage Range: 2.4V ~ 6V
? Adjustable Output with 0.6V Reference Voltage
? Guaranteed 2A Output Current
? Automatic PFM Mode at Light Load
? Low dropout 100% Duty Operation
? High 1MHz Operating Frequency
? Maximum 1μA Shutdown Current
? Internal Soft Start Function
? Excellent Line and Load Transient Response
? Short Circuit Protection
? Input Over Voltage Protection
? Under Voltage Lockout Protection
? 2.5V to 5.5V Input Voltage Range
? 70μA Low Quiescent Current
? Low RDS(ON) for Internal Switches (Top/Bottom)
130mΩ /90mΩ
? High Switching Frequency 1.5MHz Minimizes the
External Components
? Internal Soft-start Limits the Inrush Current
? 100% Dropout Operation
? Hic-cup for Short Circuit Protection
? Output Auto Discharge Function
? RoHS Compliant and Halogen Free

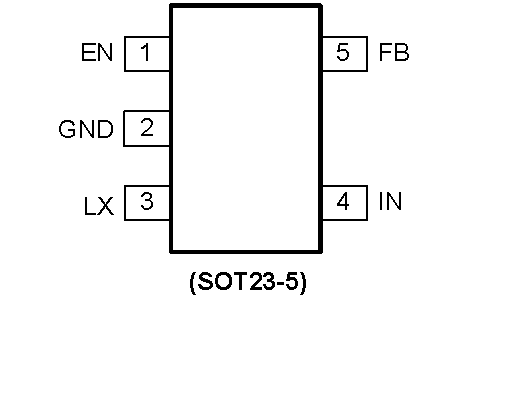

? Compact Package: SOT23-5
