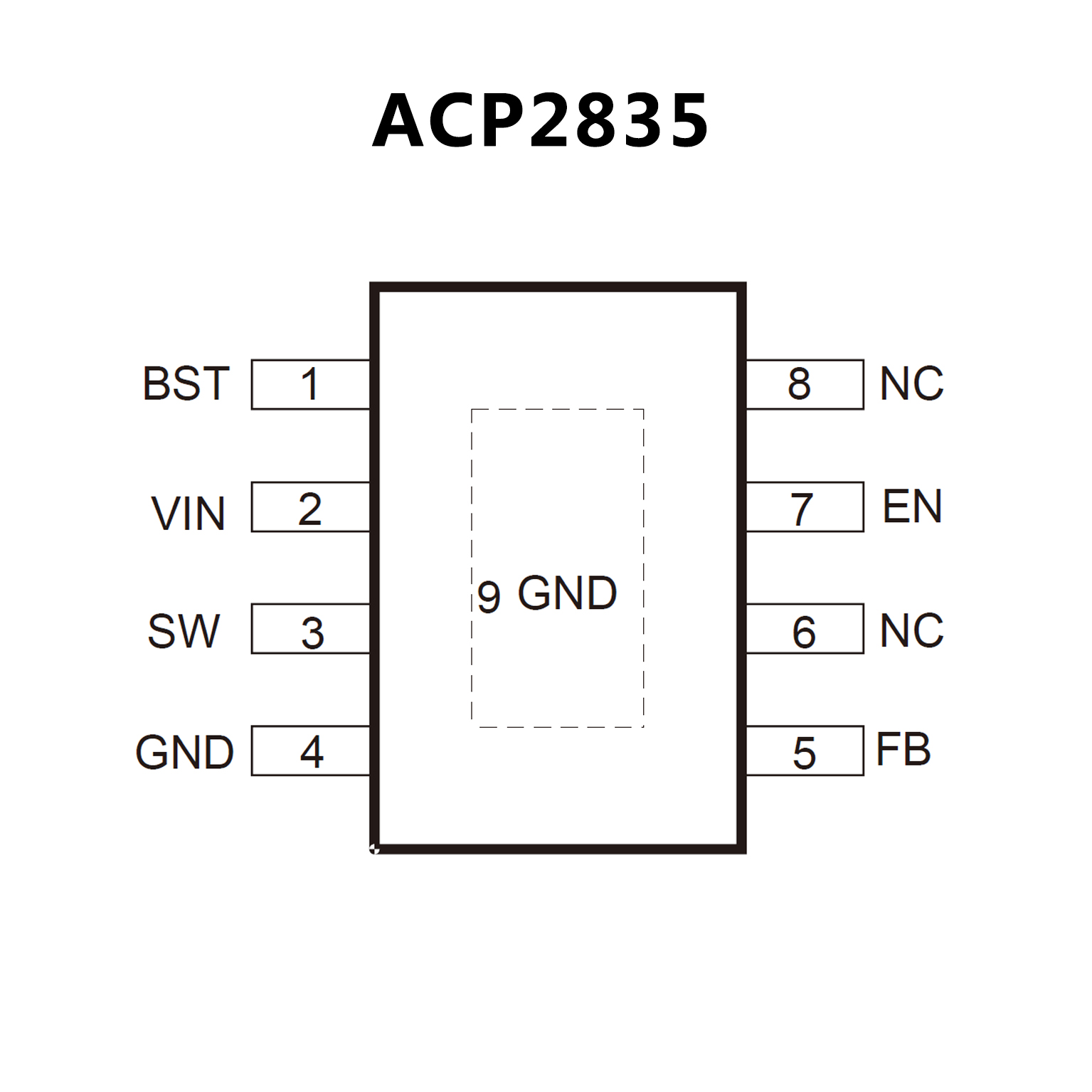

ACP2835.pdf? Wide 6.0V~30V Input Voltage Range
? Continuous 3A Output Current Capability
? Typical 500kHz Fixed Switching Frequency
? 0.925V Voltage Reference with ±1% Accuracy
? Typical 100μA Low Quiescent Current
? Typical 2μA Shutdown Current
? Light-Load High Efficiency
? Up to 95% High Efficiency
? Integrated 40V Power MOSFET Switches
? Internal 1.5-ms Soft-Start Function
? Hic-cup Mode Output Short Circuit Protection
? Input Under-Voltage Lockout
? Input 30V Over-Voltage protection
? Output Over Current Protection
? Output Short Circuit Protection
? Over Temperature Protection
? General SOP8-EP package

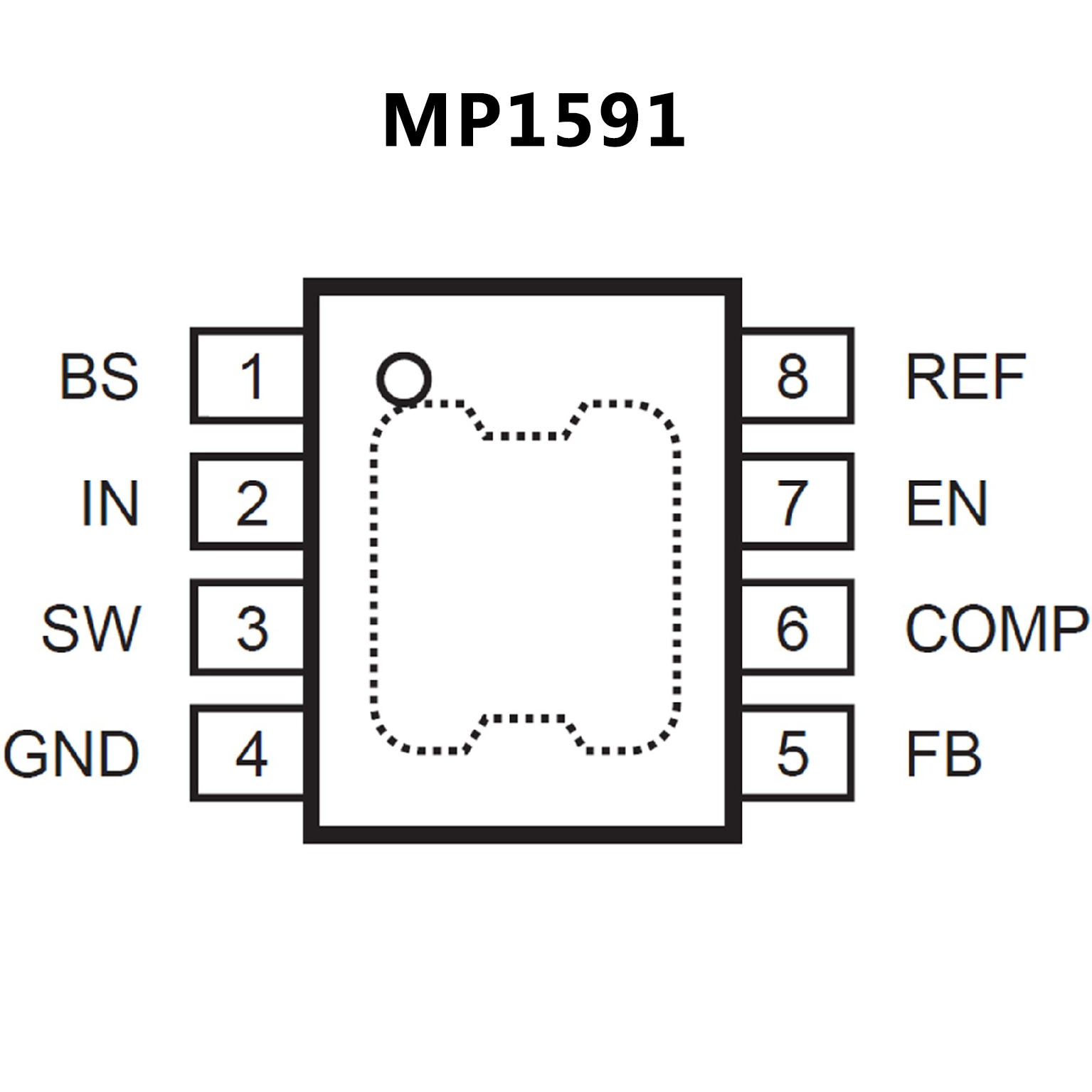

? Wide 6.5V to 32V Input Operating Range
? 34V Absolute Maximum Input
? 2A Output Current
? 120m? Internal Power MOSFET Switch
? Stable with Low ESR Output Ceramic Capacitors
? Up to 95% Efficiency
? 20?A Shutdown Mode
? Fixed 330KHz Frequency
? Thermal Shutdown
? Cycle-by-Cycle Over Current Protection
? Output Adjustable From 1.23V to 21V
? Under Voltage Lockout
? Reference Voltage Output
? Available in 8-Pin SOIC Packages
