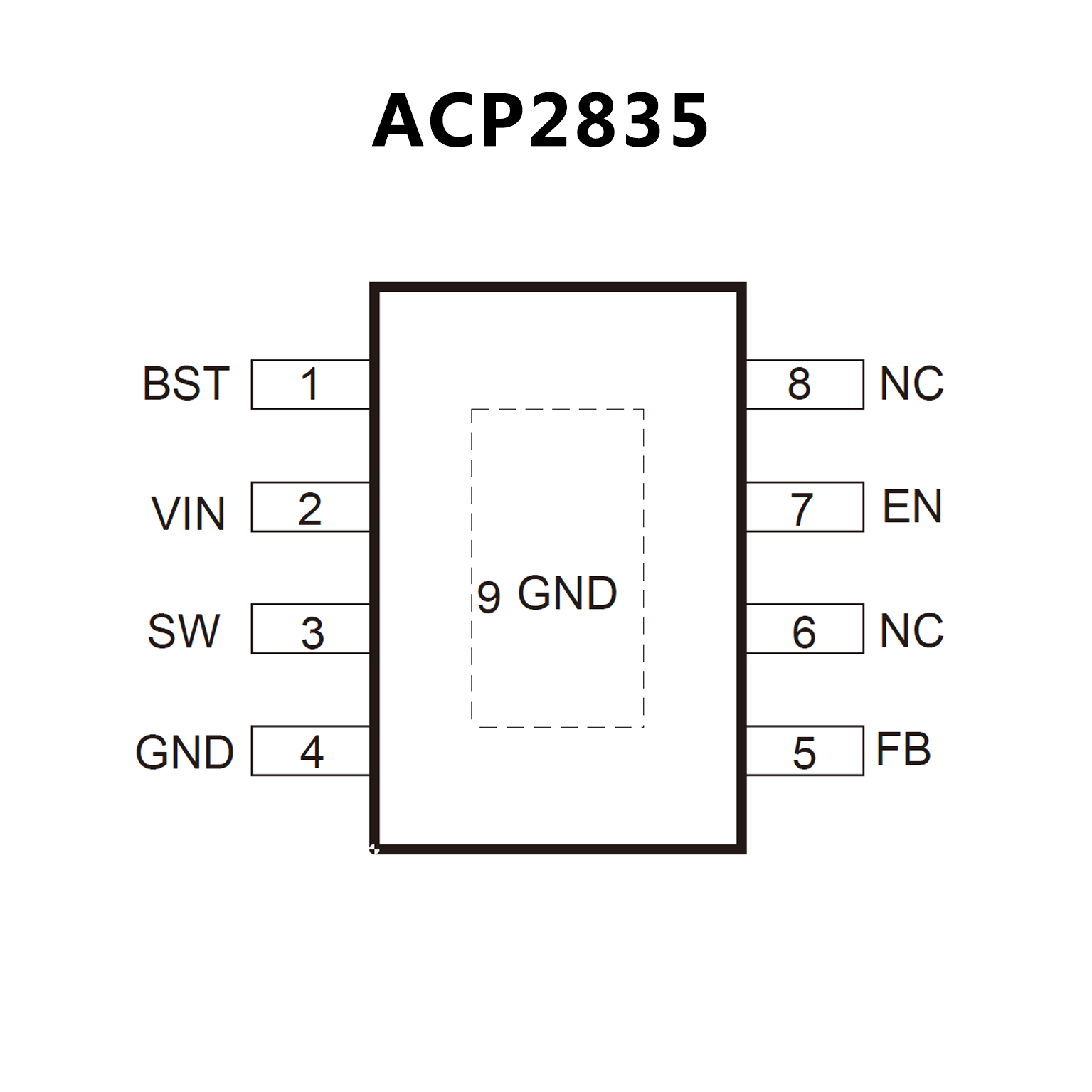

ACP2835.pdf? Wide 6.0V~30V Input Voltage Range
? Continuous 3A Output Current Capability
? Typical 500kHz Fixed Switching Frequency
? 0.925V Voltage Reference with ±1% Accuracy
? Typical 100μA Low Quiescent Current
? Typical 2μA Shutdown Current
? Light-Load High Efficiency
? Up to 95% High Efficiency
? Integrated 40V Power MOSFET Switches
? Internal 1.5-ms Soft-Start Function
? Hic-cup Mode Output Short Circuit Protection
? Input Under-Voltage Lockout
? Input 30V Over-Voltage protection
? Output Over Current Protection
? Output Short Circuit Protection
? Over Temperature Protection
? General SOP8-EP package

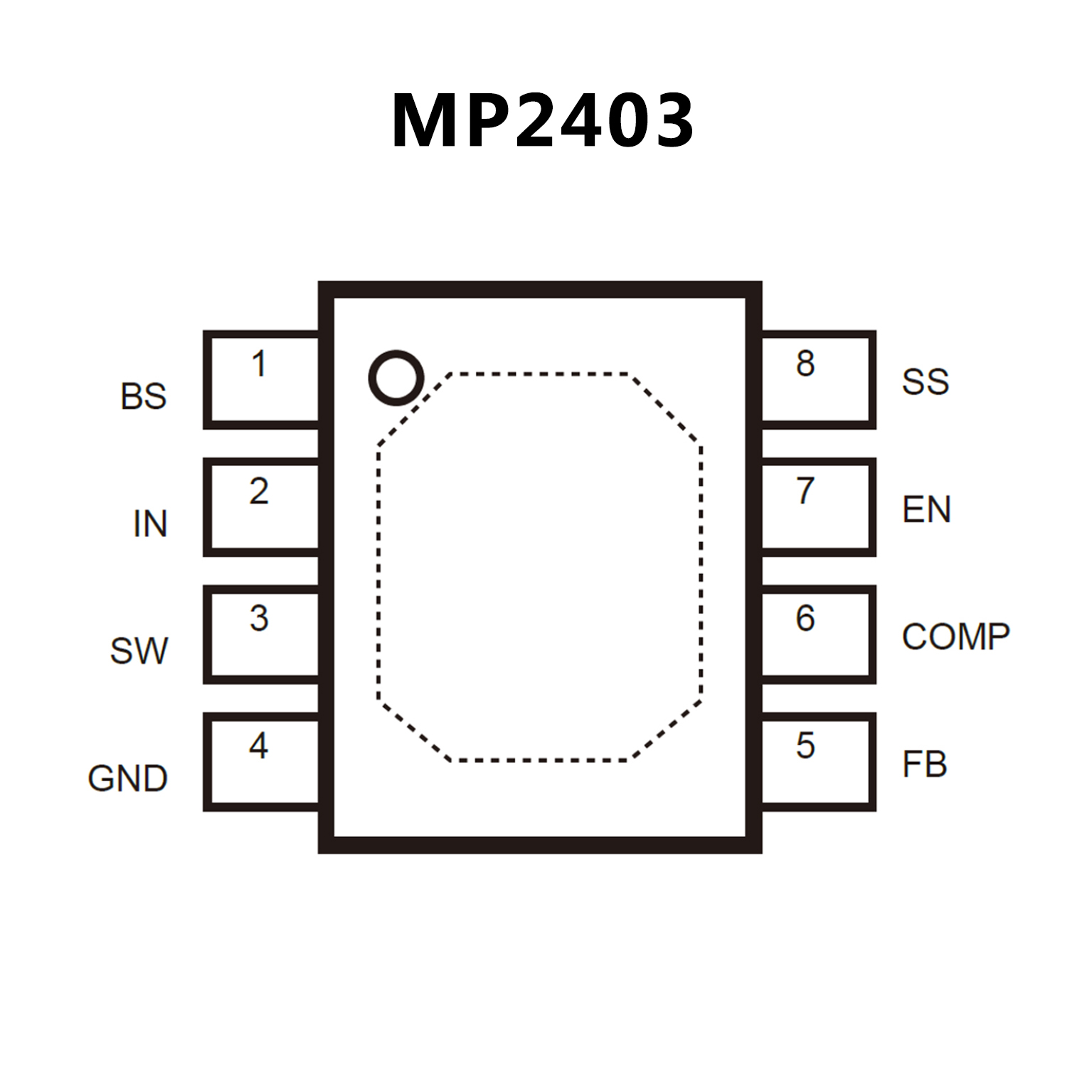

? 3A Output Current
? Wide 4.6V to 32V Operating Input Range
? Integrated MOSFET Switches
? Output Adjustable from 0.80V to 28V
? Up to 95% Efficiency
? Programmable Soft-Start
? Stable with Low ESR Ceramic Output Capacitors
? Fixed 250kHz Frequency
? Cycle-by-Cycle Over Current Protection
? Input Under Voltage Lockout
? Thermally Enhanced 8-Pin SOIC Package
