9V to 30V Input LED Backlight Controller, EUP2950 Replace BIT3267.
EUP2950
EUP2950.pdf
EUP2950.pdfFEATURES
? 9V to 30V Input Voltage Range
? Current Mode PWM controller with good dynamic
? Internal Soft-Start
? External PWM Dimming Control
? Over Voltage Protection
? Over Current Protection
? Under Voltage Lockout
? Thermal Shutdown Protection
? LED cathode short to GND Protection
? LED Open Protection
? SOP-8 Package
? RoHS Compliant and 100% Lead (Pb)-Free

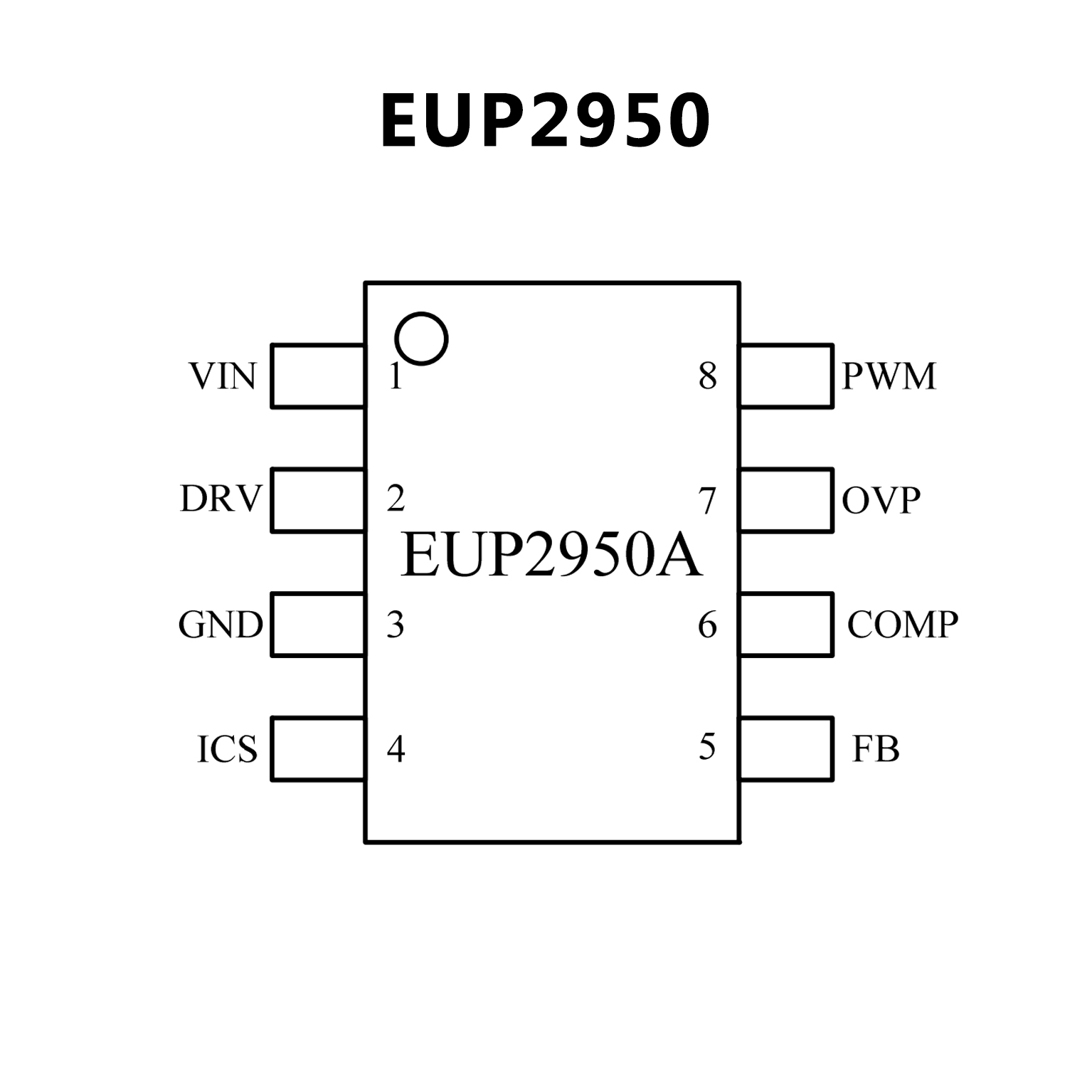

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Current Mode PWM Controller
? 8V ~ 28V operation voltage
? Local dimming function
? Internal minimum off time
? Over current protection, OCP
? Over voltage protection, OVP
? Load short protection, LSP
? Frequency selection
? Internal Soft-Start
? Over temperature protection, OTP
? Internal Under Voltage Lock Out, UVLO
? Totem Pole Output
? SOP-8 package
PIN CONFIGUTION
