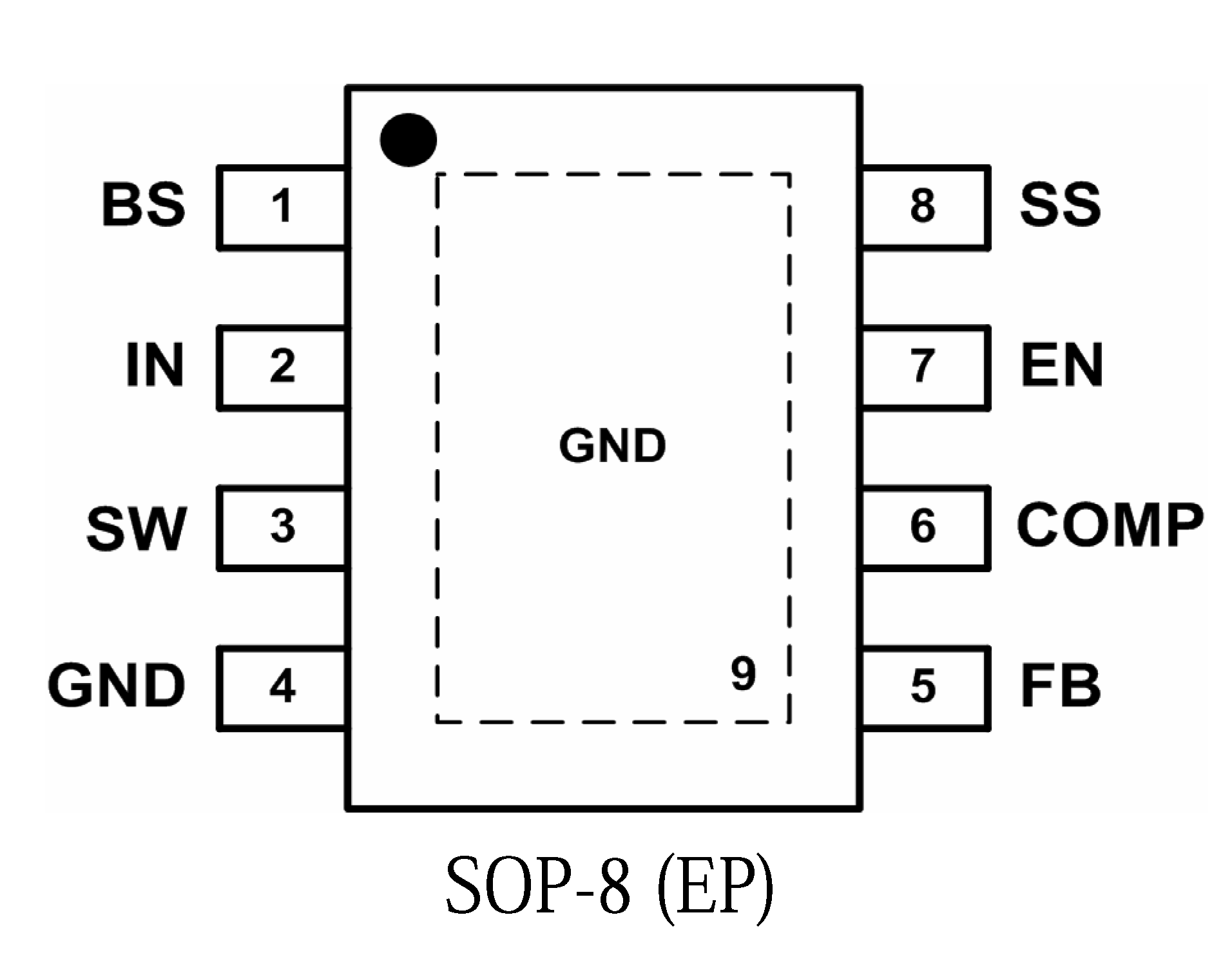

EUP3284.pdf? 3A Output Current
? Automatic Pulse Skipping Mode at Light Load
? 33V Input Surge Protection
? Integrated 160m?/110m? DMOS Switches
? 4.5V to 30V Input Operating Range
? Output Adjustable from 0.92V to 20V
? Up to 94% Efficiency
? 3?A Shutdown Current
? Fixed 340KHz Frequency
? Programmable Soft-Start
? Thermal Shutdown and Overcurrent Protection
? Input Supply Overvoltage and Undervoltage Lockout
? 220ns Minimum On Time

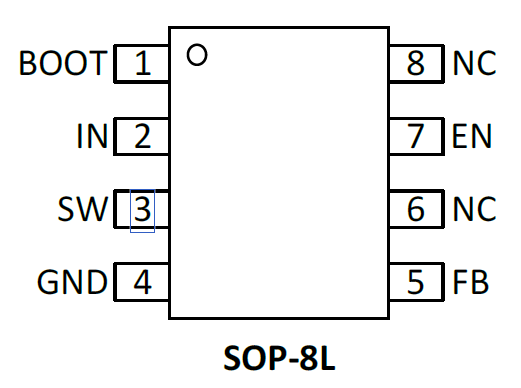

? 4.75V to 18V input voltage
? Output adjustable from 0.923V to 15V
? Output current up to 2A
? Integrated 135mΩ/100mΩ power MOSFET switches
? Shutdown current 3μA typical
? Efficiency up to 95%
? Fixed frequency 500KHz
? Internal soft start
? Over current protection and Hiccup
? Over temperature protection
? RoHS Compliant and 100% Lead (Pb) Free
