20V Common-Drain Dual N-Channel AlphaMOS, GS95A2CS-R Replace AOC3864.
GS95A2CS-R
GS95A2CS-R.pdf
GS95A2CS-R.pdfFEATURES
? Input Voltage up to 24V
? MOSFET Turn on Resistor RSS(ON)
=12mohm(Max)@Vgs=4.5V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=9.4A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)
PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Trench Power AlphaMOS (αMOS LV) technology
? Low RSS(ON)
? Fully protected AlphaDFN package
? With ESD protection to improve battery performance and safety
? Common drain configuration for design simplicity
? RoHS and Halogen-Free Compliant

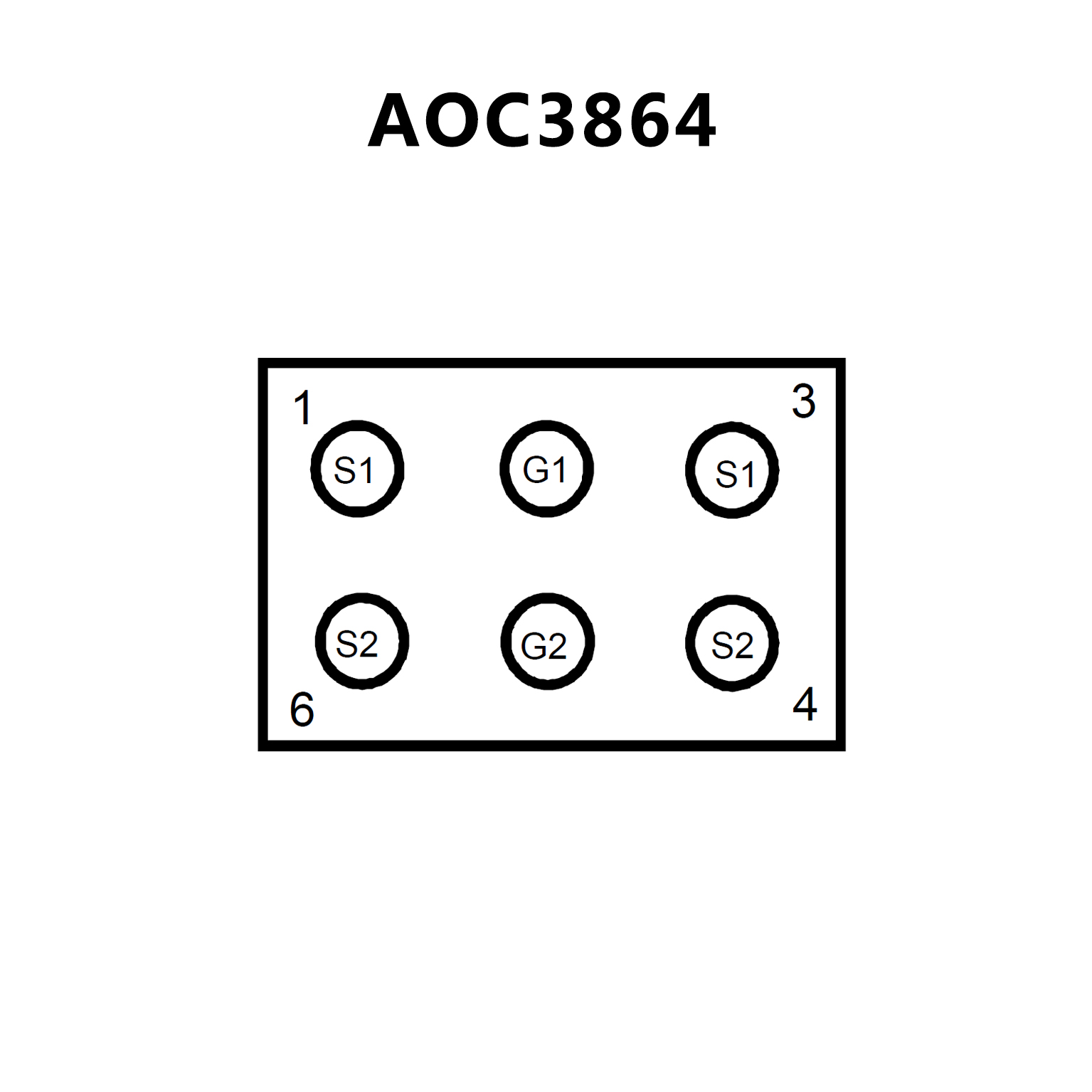

PIN CONFIGUTION
