20V Common-Drain Dual N-Channel AlphaMOS, GS95C4CS-R Replace AOC3864.
GS95C4CS-R
GS95C4CS-R.pdf
GS95C4CS-R.pdfFEATURES
? Input Voltage up to 12V
? MOSFET Turn on Resistor RSS(ON)
=4.3mohm(typ)@Vgs=4.5V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=8A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)
PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Trench Power AlphaMOS (αMOS LV) technology
? Low RSS(ON)
? Fully protected AlphaDFN package
? With ESD protection to improve battery performance and safety
? Common drain configuration for design simplicity
? RoHS and Halogen-Free Compliant

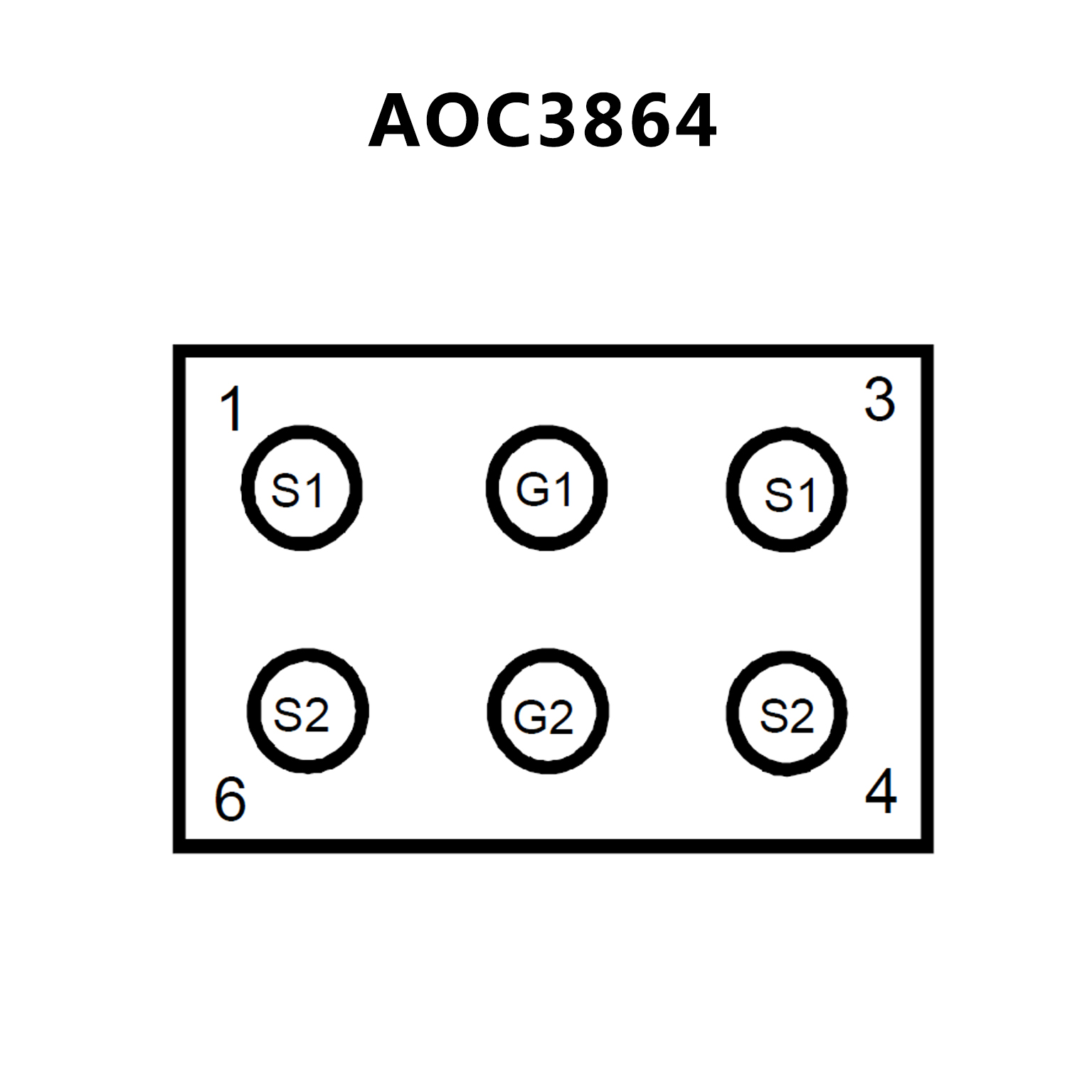

PIN CONFIGUTION
