2-BITS Bidirectional Level Translator Open-Drain and Push-Pull Applications, DIODES LSF0102 P2P TI LSF0102.
DIODES LSF0102
DIODES LSF0102.pdf
DIODES LSF0102.pdfFEATURES
? External Rpu (pull-up resistor) sets driving current in
both push pull and open-drain applications
? Maximum data rate is dominated by the system
capacitance and pull-up resistors
? ≤ 100MHz; CL= 15pF, 30pF, RPU <= 300Ω
? ≤ 50MHz; CL= 50pF, RPU <= 300Ω
? Bidirectional voltage level translation between:
? 0.65V and 1.5V, 1.8V, 2.5V, 3.3V and 5.0V
? 1.2V and 1.8V, 2.5V, 3.3V and 5.0V
? 1.8V and 2.5V, 3.3V and 5.0V
? 2.5V and 3.3V and 5.0V
? 3.3V and 5.0V
? ESD Protection Exceeds JESD 22
? 4000V HBM (A114)
? 1500V CDM (C101)
? Latch-up Exceeds 100mA per JESD 17
? Specified from -40°C to +125°C

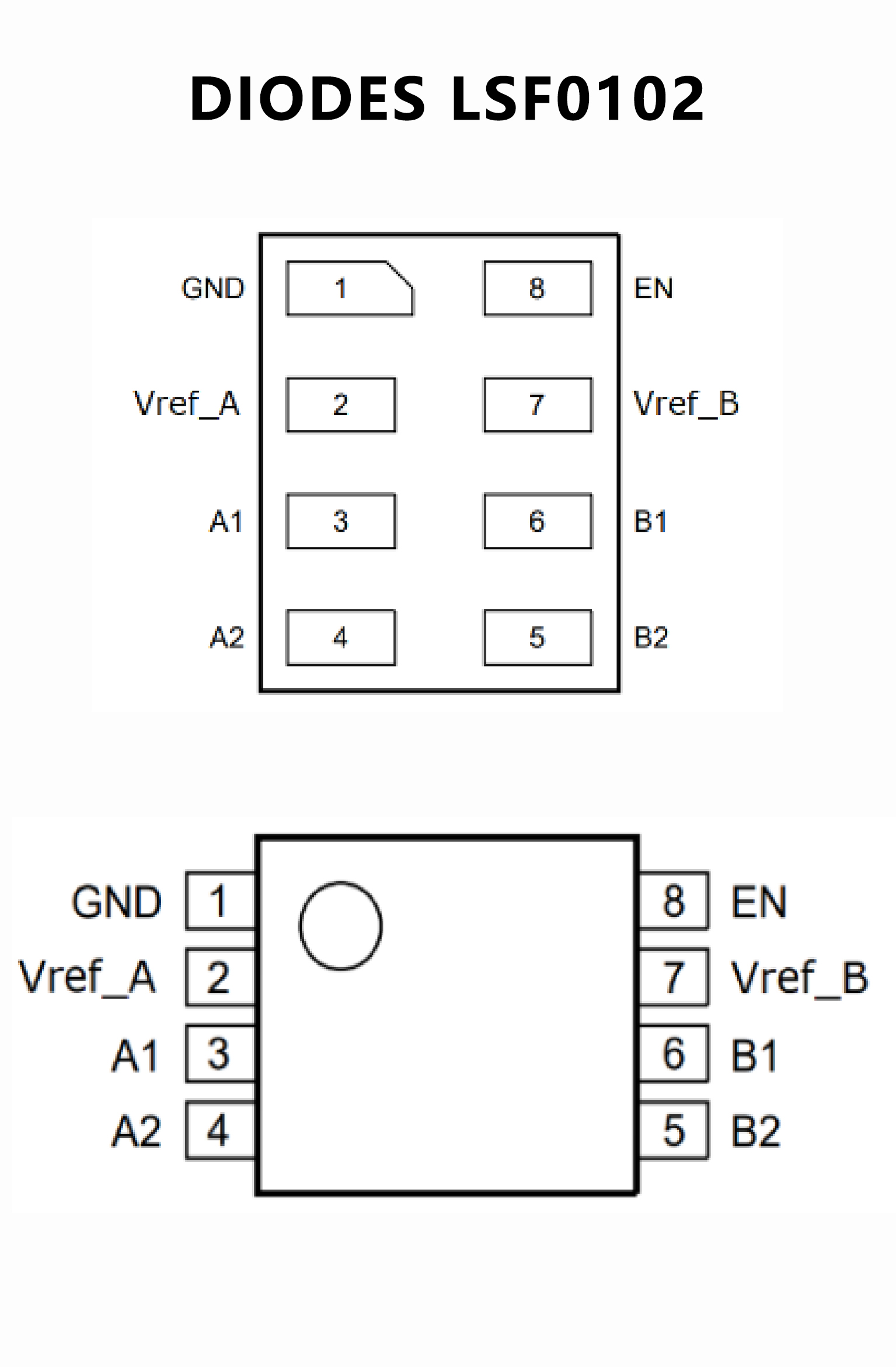

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Provides bidirectional voltage translation with no
direction pin
? Supports up to 100MHz up translation and greater
than 100MHz down translation at
≤ 30pF capacitive load and up To 40MHz up or
down translation at 50pF capacitive load
? Allows bidirectional voltage-level translation
between
– 0.95V ? 1.8/2.5/3.3/5V
– 1.2V ? 1.8/2.5/3.3/5V
– 1.8V ? 2.5/3.3/5V
– 2.5V ? 3.3/5V
– 3.3V ? 5V
? Low standby current
? 5V tolerance I/O port to support TTL
? Low RON provides less signal distortion
? High-impedance I/O pins for EN = Low
? Flow-through pinout for easy PCB trace routing
? Latch-up performance >100mA per JESD 17
? –40°C to 125°C operating temperature range

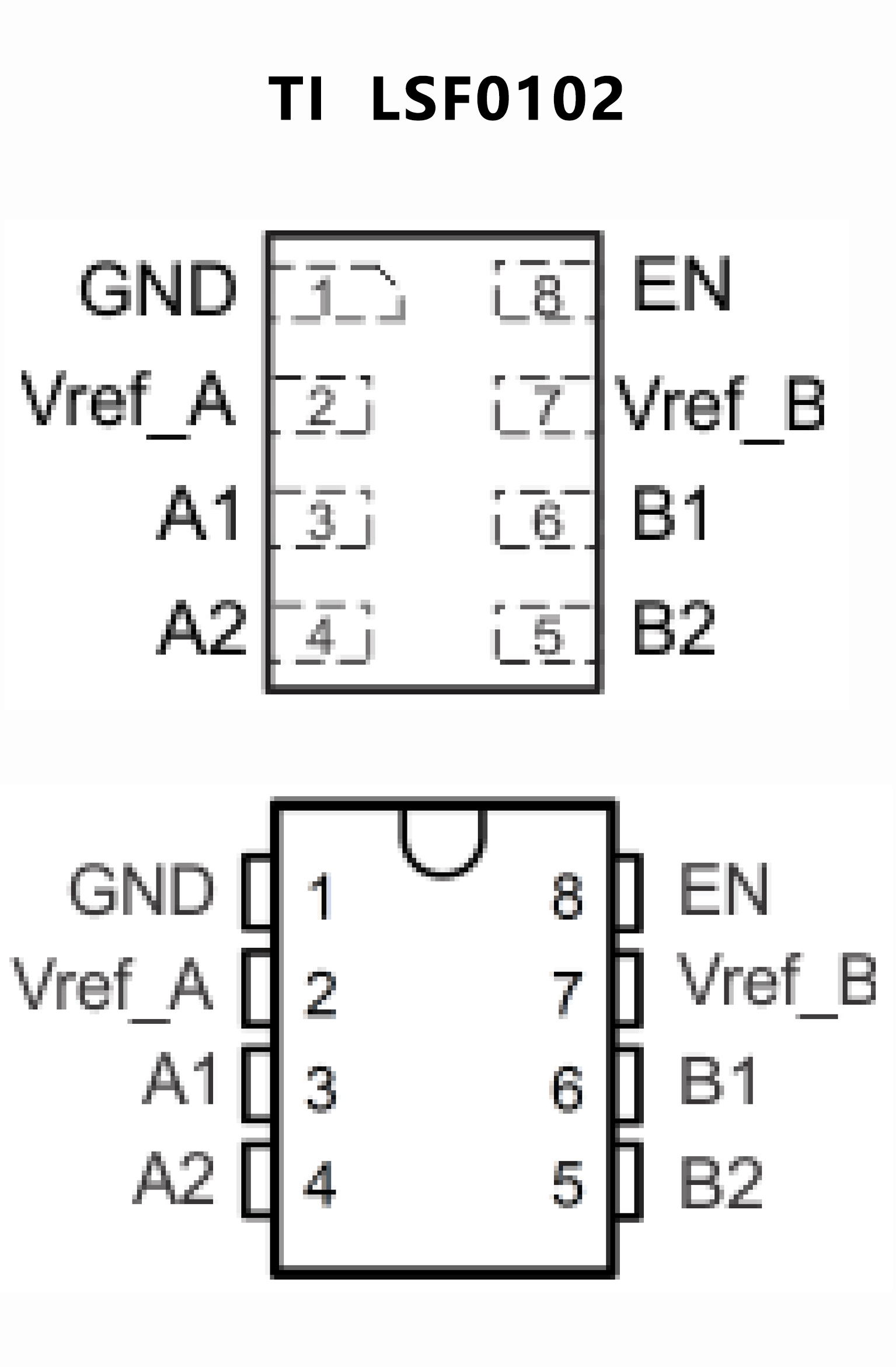

PIN CONFIGUTION
