Bidirectional voltage-level translator for open-drain and push-pull applications, DIODES LSF0106 P2P NVT2006.
DIODES LSF0106
DIODES LSF0106.pdf
DIODES LSF0106.pdfFEATURES
? Bi-directional level shifter for both push-pull and open-drain
? Maximum data rate is dominated by the system capacitance
and pullup resistors
? ≤ 100MHz; CL = 15pF, 30pF, Rpu ≤ 300Ω
? ≤ 50MHz; CL = 50pF, Rpu ≤ 300Ω
? Bi-directional voltage level translation between:
? 0.65V and 1.5V, 1.8V, 2.5V, 3.3V and 5.0V
? 1.2V and 1.8V, 2.5V, 3.3V and 5.0V
? 1.8V and 2.5V, 3.3V and 5.0V
? 2.5V and 3.3V and 5.0V
? 3.3V and 5.0V
? ESD protection exceeds JESD 22
? 3500V HBM (A114)
? 1500V CDM (C101)
? Latchup exceeds 100mA per JESD 17
? 5V tolerant I/O pins to support TTL
? Specified from -40°C to +125°C

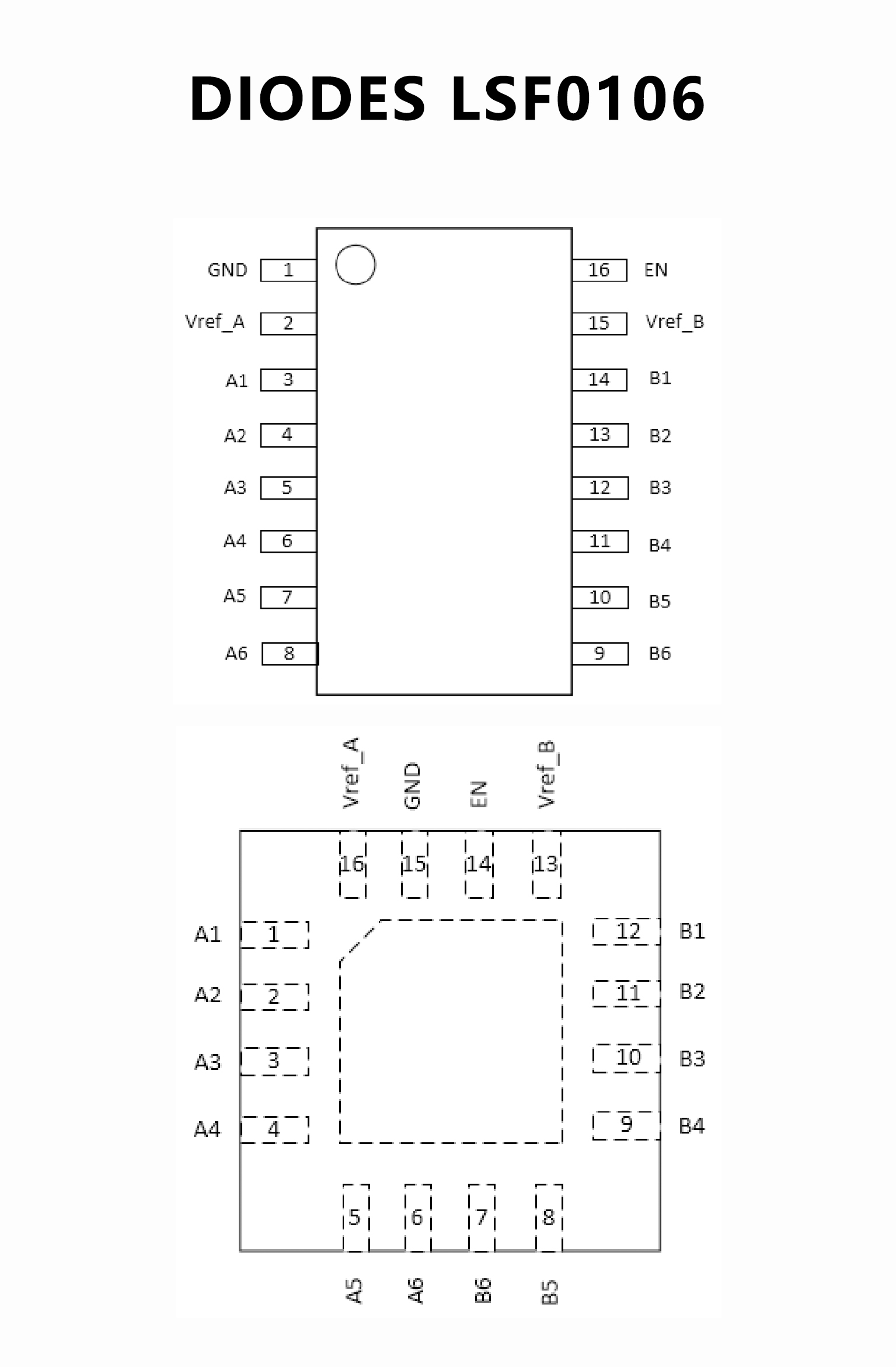

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Provides bidirectional voltage translation with no direction pin
? Less than 1.5 ns maximum propagation delay
? Allows voltage level translation between:
? 1.0 V Vref(A) and 1.8 V, 2.5 V, 3.3 V or 5 V Vref(B)
? 1.2 V Vref(A) and 1.8 V, 2.5 V, 3.3 V or 5 V Vref(B)
? 1.8 V Vref(A) and 3.3 V or 5 V Vref(B)
? 2.5 V Vref(A) and 5 V Vref(B)
? 3.3 V Vref(A) and 5 V Vref(B)
? Low 3.5Ω ON-state connection between input and output
ports provides less signal distortion
? 5 V tolerant I/O ports to support mixed-mode signal operation
? High-impedance An and Bn pins for EN = LOW
? Lock-up free operation
? Flow through pinout for ease of printed-circuit board trace
routing
? ESD protection exceeds 3.5 kV HBM per JESD22-A114 and
1000 V CDM per JESD22-C101
? Packages offered: TSSOP10, HXSON12, DHVQFN16,
HVQFN16, TSSOP16

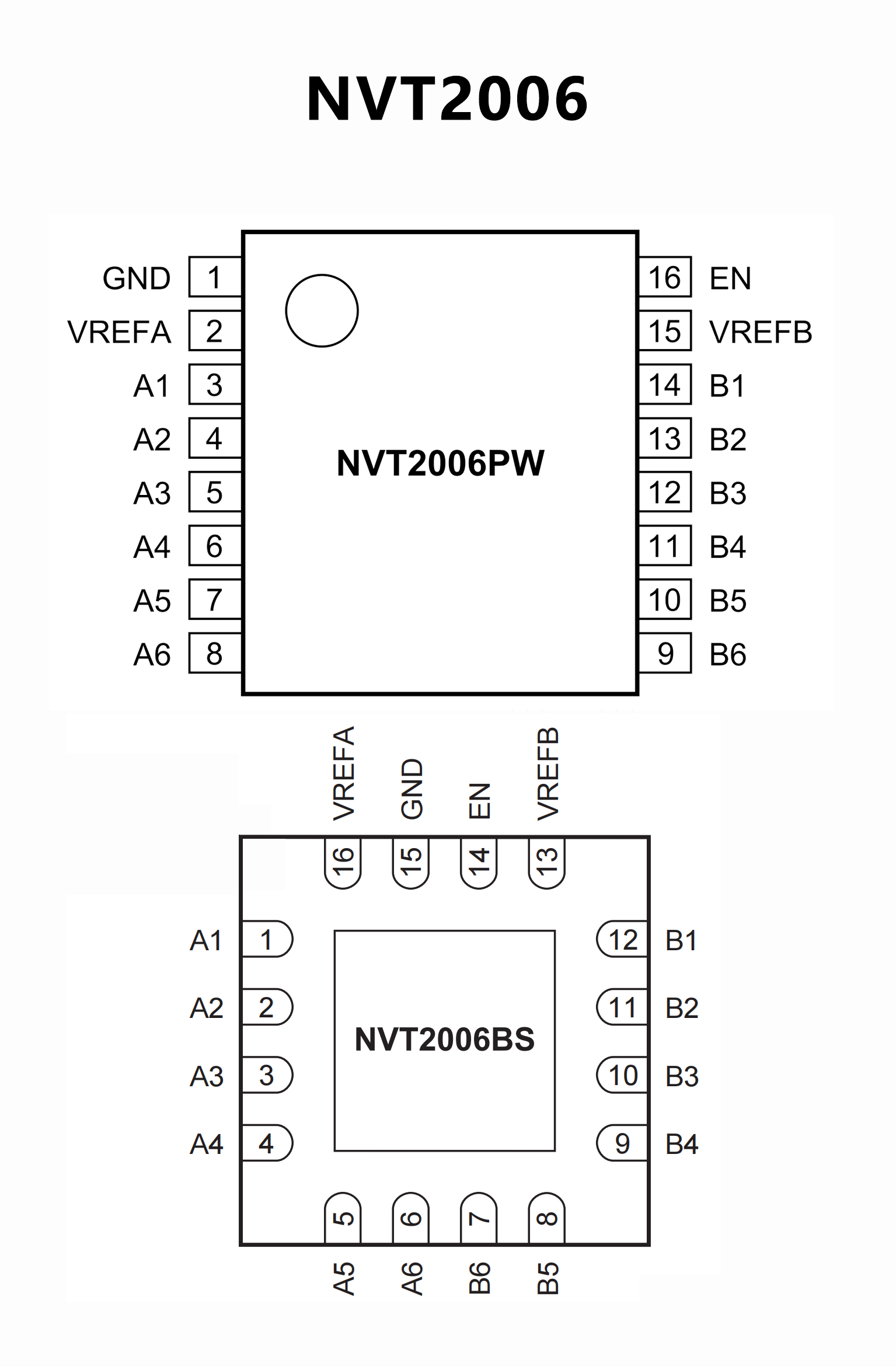

PIN CONFIGUTION
