Dual supply translating transceiver; auto direction sensing; 3-state, LXB0104 Replace NTB0104.
LXB0104
LXB0104.pdf
LXB0104.pdfFEATURES
? Bi-Directional Voltage Translation for Push-Pull
Applications
? Specified from -40°C to +125°C
? VCCA for A Port: 1.2V to 3.6V
? VCCB for B Port: 1.65V to 5.5V
? Up & Down Translation Data Rate
? ≤ 110Mbps, CL = 15pF, 3.3V to 5.0V Translation
? ≤ 60Mbps, CL = 15pF, 1.8V to 3.3V Translation
? ≤ 30Mbps, CL = 15pF, 1.2V to 1.8V Translation
? IOFF Circuitry Provides Partial-Power-Down Mode
Operation
? OE Pin Supports High-Impedance Exists Between Ports
? ESD Protection Exceeds JESD 22
? 7000V HBM (B Port), 3000V HBM (A Port)
? 1500V CDM (C101)
? Latchup Exceeds 100mA per JESD 17
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control

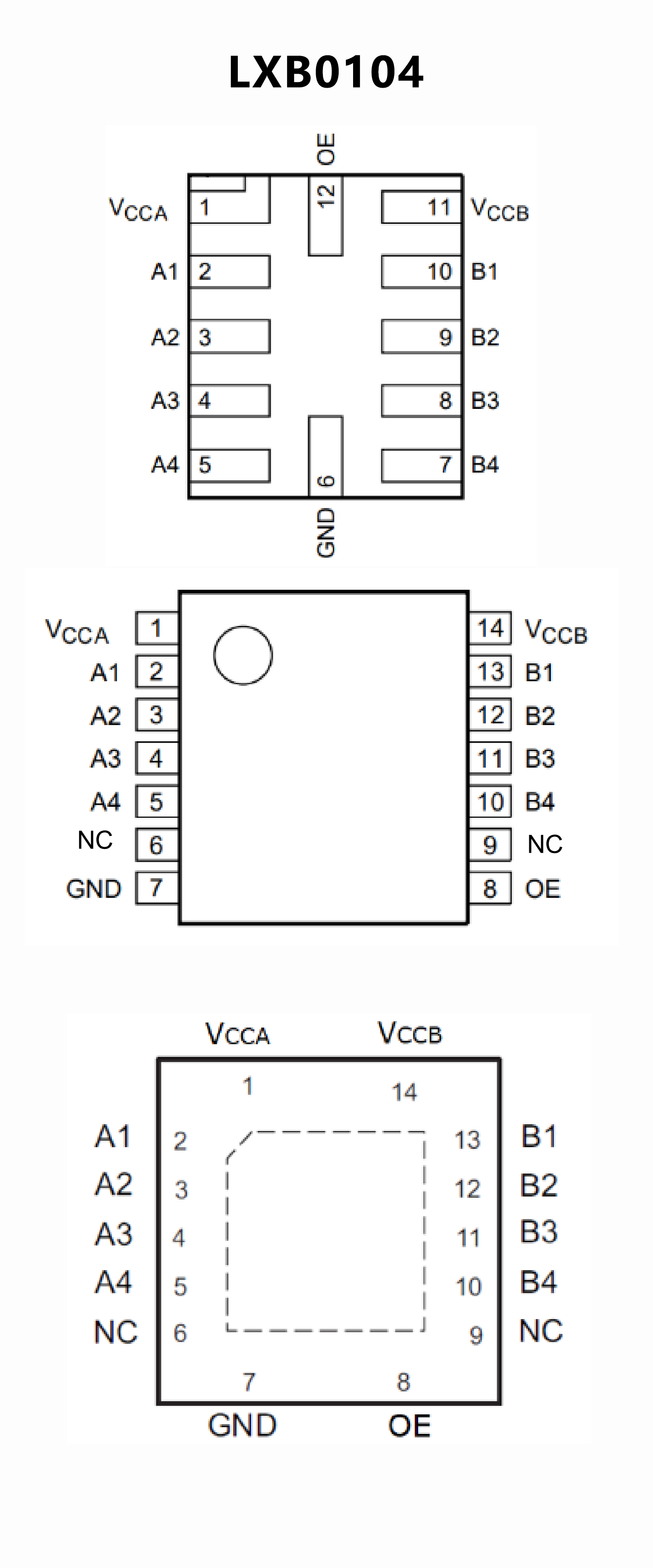

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Wide supply voltage range:
? VCC(A): 1.2 V to 3.6 V and VCC(B): 1.65 V to 5.5 V
? IOFF circuitry provides partial Power-down mode operation
? Inputs accept voltages up to 5.5 V
? ESD protection:
? HBM JESD22-A114E Class 2 exceeds 2500 V for A port
? HBM JESD22-A114E Class 3B exceeds 15000 V for B port
? MM JESD22-A115-A exceeds 200 V
? CDM JESD22-C101E exceeds 1500 V (For NTB0104UK 1000 V)
? Latch-up performance exceeds 100 mA per JESD 78B Class II
? Multiple package options
? Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃

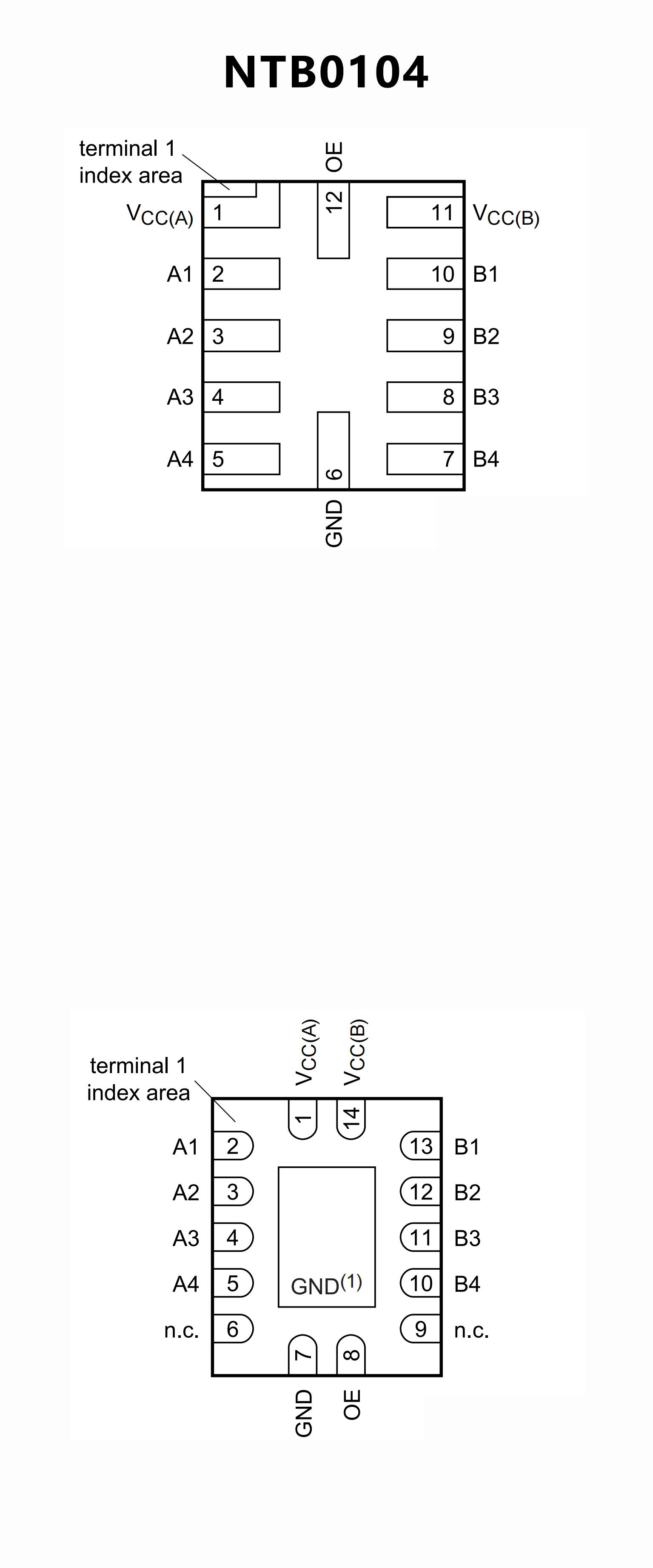

PIN CONFIGUTION
