LXS0102.pdf? High-Speed with 24Mb/s Data Rate for push-pull
applications
? High-Speed with 2Mb/s Data Rate for open-drain
applications
? 1.65V to 3.6V on A Port and 2.3V to 5.5V on B Port
? VCCA must be less than or equal to VCCB
? No Direction-Control Signal Needed
? Low Bit-to-Bit Skew
? Non-preferential Power-up Sequencing
? ESD protection exceeds JESD22-Al14
A Port: 2000V HBM
B Port:5KV HBM-V,SS,HK
7KVHBM-GBA only
? Integrated 1OkO Pull-up Resistors

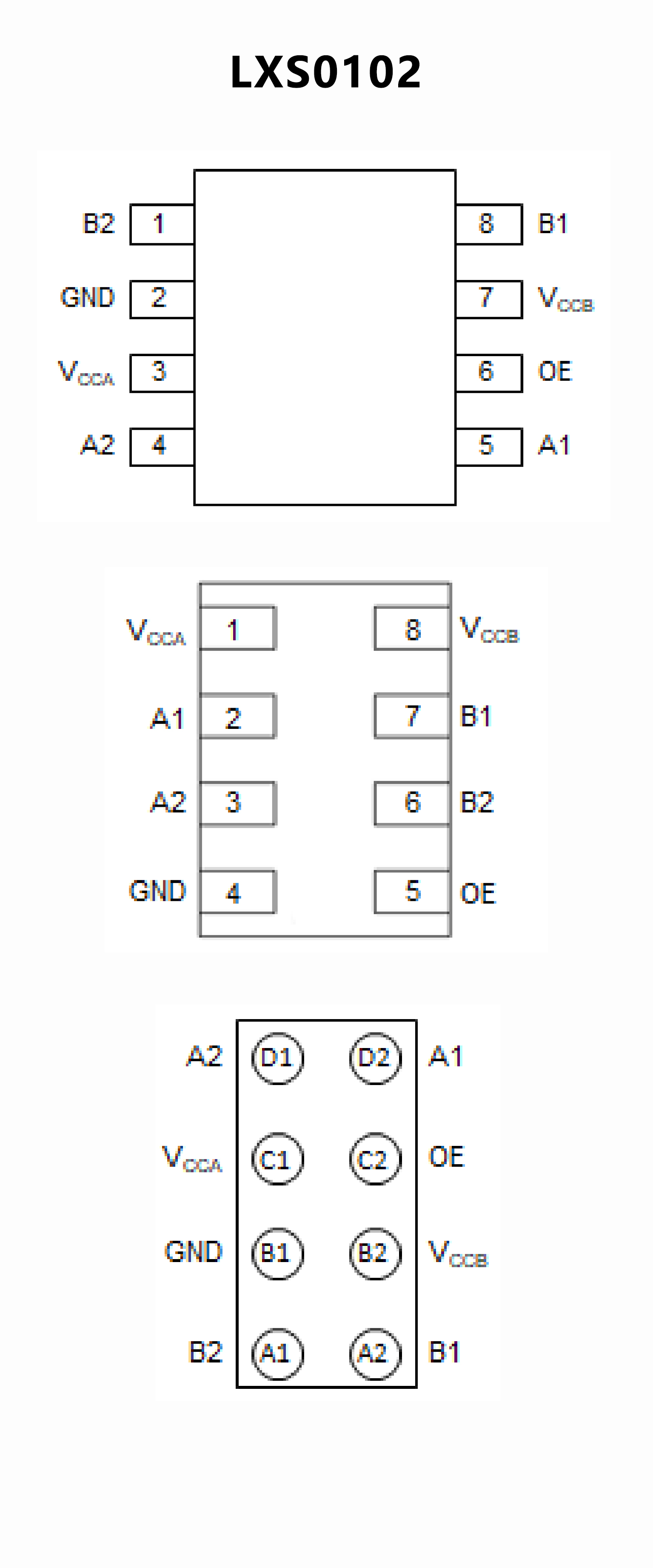

? Packaging (Pb-free & Green):
8-DFN1xl.4 (HK)
8-VSSOP (V)
8-SSOP (SS)
8-WLCSP (GBA)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control
? Wide supply voltage range:
? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2500V
for A port
? HBM: ANSI/ESDA/JEDEC JS-001 class 3B exceeds 8000V
for B port
? Specified from -40 °C to +85 °C and -40 °C to +125 °C
