High-Current, High-Performance DrMOS Power Module, NDC301RA Replace AOZ5517QI.
NDC301RA
NDC301RA.pdf
NDC301RA.pdfFEATURES
? Capable of Average Currents up to 60 A.
? Capable of Switching at Frequencies up to 1 MHz.
? Compatible with 5V PWM Input.
? Good 30V HS/LS MOSFET Characteristics
? The QFN5x5 Package of Low Impedance design.
? Zero Current Detection for High Efficiency at Light Load.
? Internal Bootstrap Diode.
? Under voltage Protection.
? Thermal Shutdown.
? Supports Intel? Power State 4.
PIN CONFIGUTION
優勢替代
FEATURES
? 4.5V to 25V power supply range
? 4.5V to 5.5V driver supply range
? 60A continuous output current
Up to 80A with 10ms on pulse
Up to 120A with 10?s on pulse
? Up to 2MHz switching operation
? 5V PWM / Tri-State input compatible
? Under-Voltage LockOut protection
? FCCM pin control for Shutdown / Diode Emulation /CCM operation
? Standard 5mm x 5mm QFN-31L package

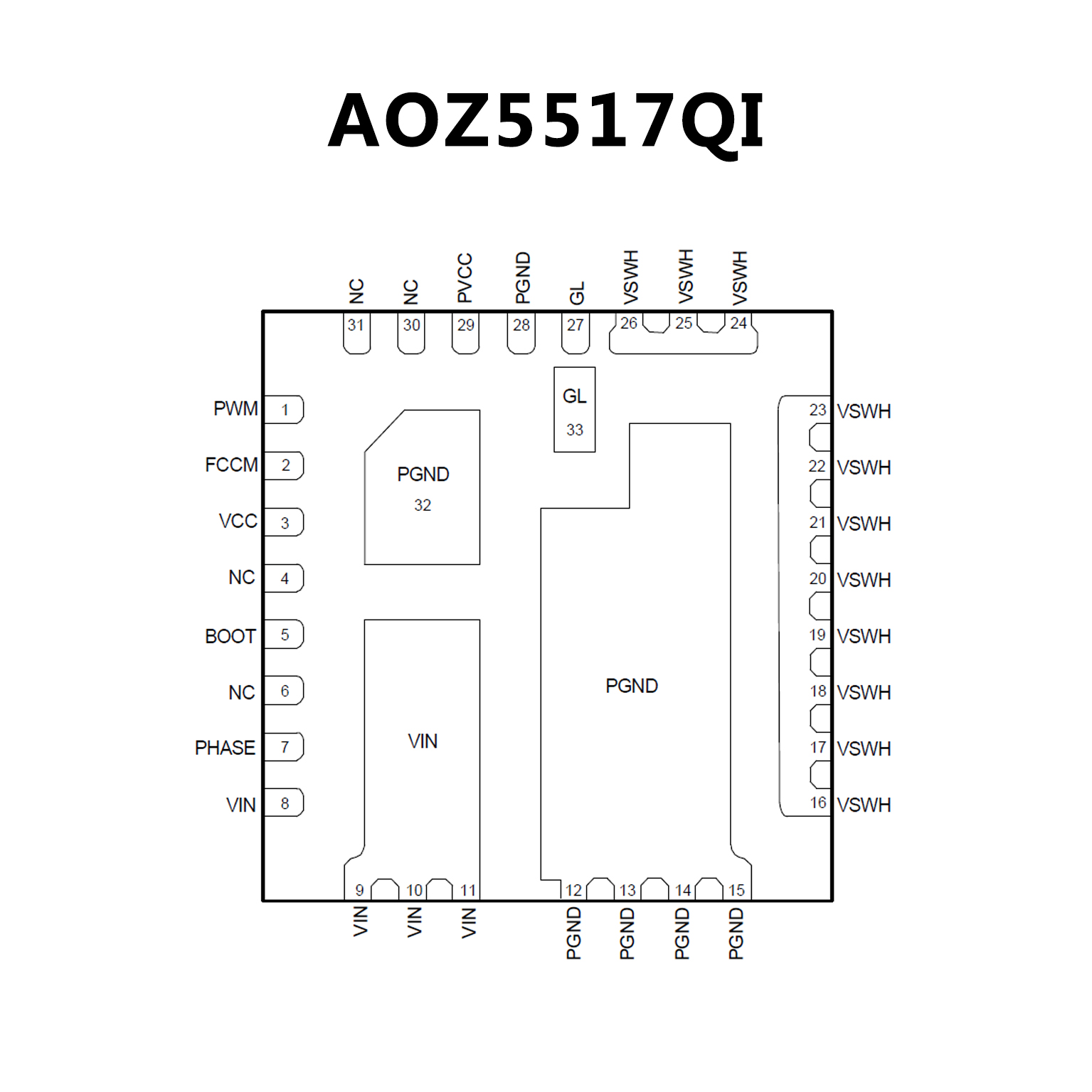

PIN CONFIGUTION
