60 A VRPower? Integrated Power Stage, NDC302RA Replace SIC621.
NDC302RA.pdf優(yōu)勢替代
FEATURES
? Thermally enhanced PowerPAK? MLP55-31L package
? Vishay’s Gen IV MOSFET technology
and a low-side MOSFET with
integrated Schottky diode
? Delivers up to 60 A continuous current
? High efficiency performance
? High frequency operation up to 2 MHz
? Power MOSFETs optimized for 12 V input stage
? 5 V PWM logic with tri-state and hold-off
? Supports PS4 mode light load requirement for IMVP8 with low shutdown supply current (5 V, 5 μA)
? Under voltage lockout for VCIN
? Material categorization: for definitions of compliance

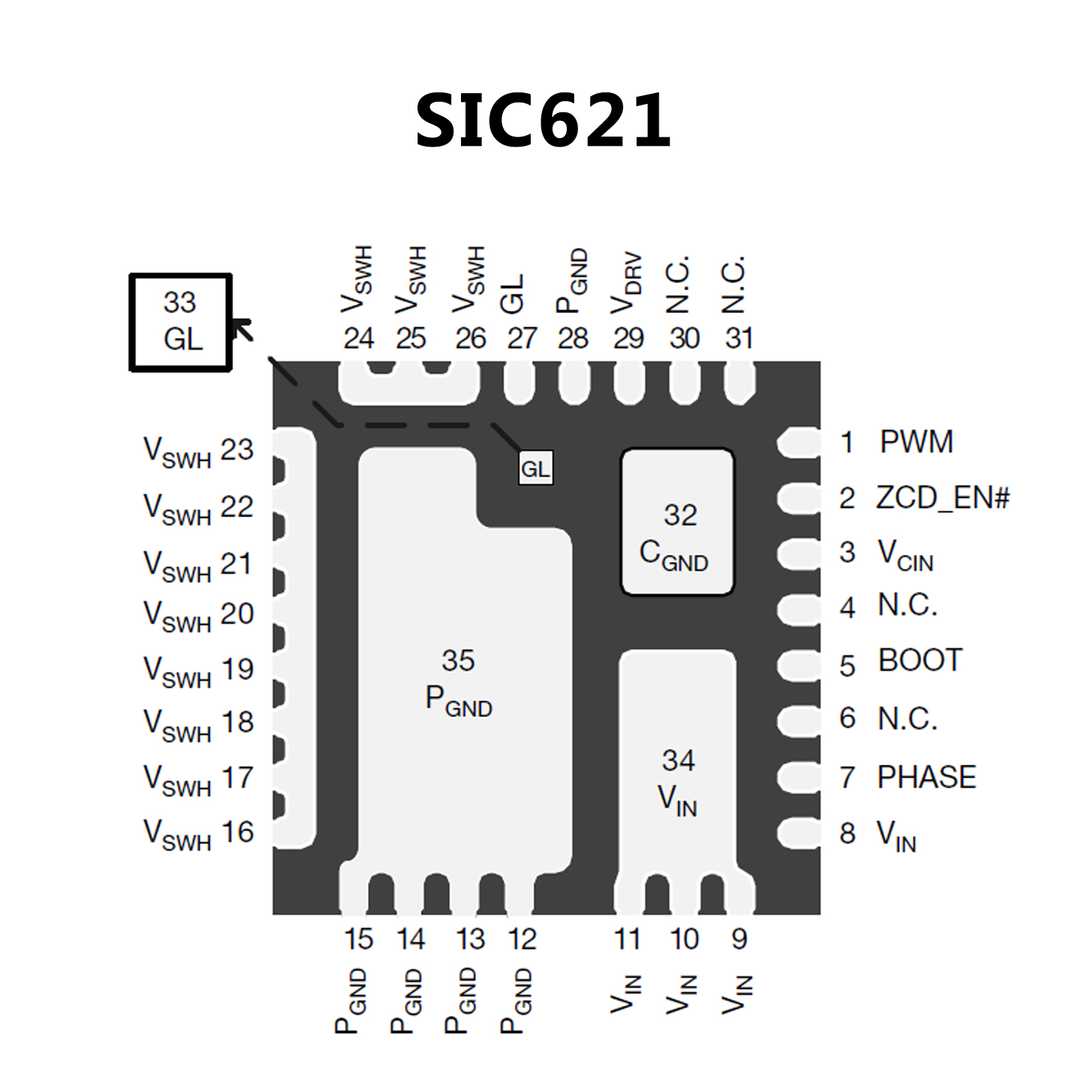

PIN CONFIGUTION
