3.3V, 8:1 Mux/DeMux NanoSwitch, PI3B3251 Replace 74CBTLV3251.
PI3B3251
PI3B3251.pdf
PI3B3251.pdfFEATURES
? Near-Zero propagation delay
? 5? switches connect inputs to outputs
? Ultra Low Quiescent Power (0.1?A typical)
– Ideally suited for notebook applications
? Pin compatible with 74 series 251 logic devices
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaging (Pb-free & Green available):
– 16-pin 173-mil Wide (TSSOP)
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Functionally equivalent to QS3251
? 5Ω bi-directional switch connection between two ports
? Isolation under power-off conditions
? Over-voltage tolerant
? Latch-up performance exceeds 100mA
? VCC = 2.3V - 3.6V, Normal Range
? ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
? Available in QSOP and TSSOP packages

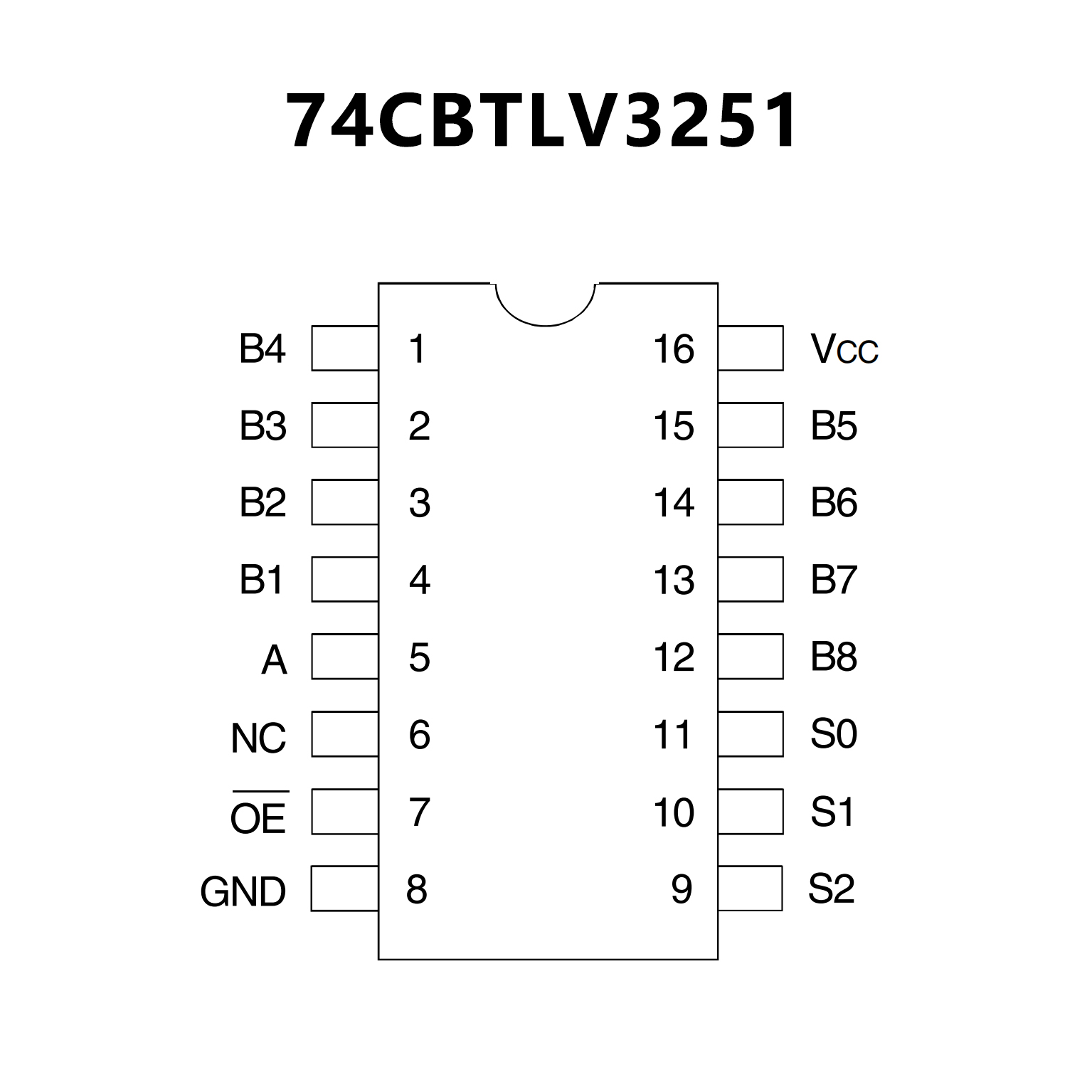

PIN CONFIGUTION
