Dual Bidirectional I3C/I2C-bus Voltage-level Translator, PI3CLS9606 Replace P3A9606.
PI3CLS9606
PI3CLS9606.pdf
PI3CLS9606.pdfFEATURES
? I3C/I2C-bus and SMBus bi-directional level translator
? Port A operating supply voltage Vcca range of 0.72V to
1.98V; Port B operating supply voltage Vcc range ofO.72V
to 1.98V.VccASVccB
? Active HIGH repeater enable input
? Lock-up free operation
? Powered-off high-impedance P?C-bus pins
? ESD protection exceeds 8KV HBM per JESD22-Al14
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control
? Packaging (Pb-free & Green available):
8-Lead, 1.4mmx 1.0mm (HK)

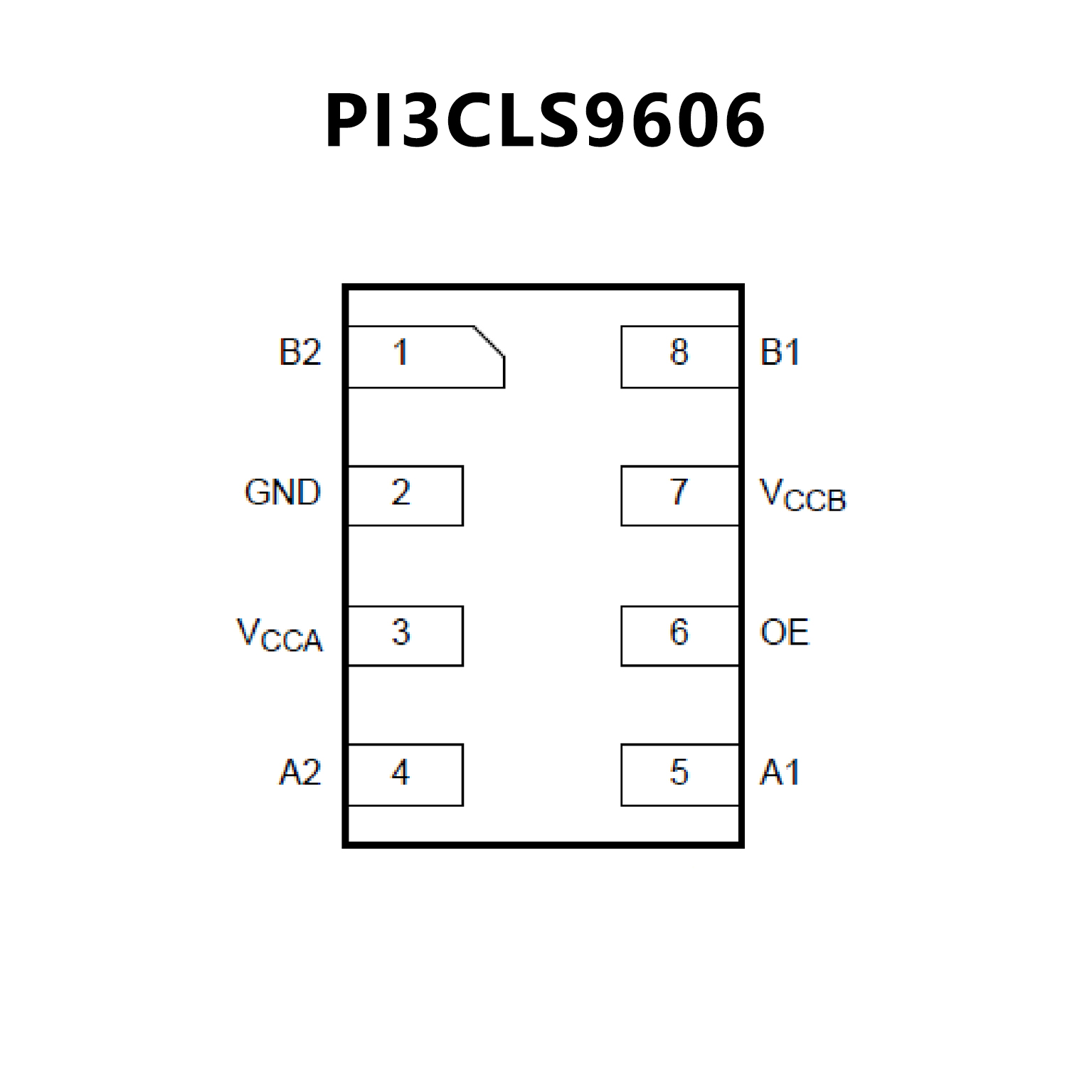

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide supply voltage range:
– VCCA: 0.72 V to 1.98 V and VCCB: 0.72 V to 1.98 V;
VCCA ≤ VCCB
? IOFF circuitry provides partial Power-down mode operation
? Inputs accept voltages up to 1.98 V and are overvoltage
tolerant to 1.98 V
? Provided voltage level translation for I3C, I2C-bus, SMBus
and SPI devices
? ESD protection:
– HBM JESD22-A114E Class 2 exceeds 2000 V
– CDM JESD22-C101E exceeds 1000 V
? Latch-up performance exceeds 100mA per JESD78B Class II
? Available in X2SON8 package
? Specified from -40 °C to +85 °C and -40 °C to +125 °C

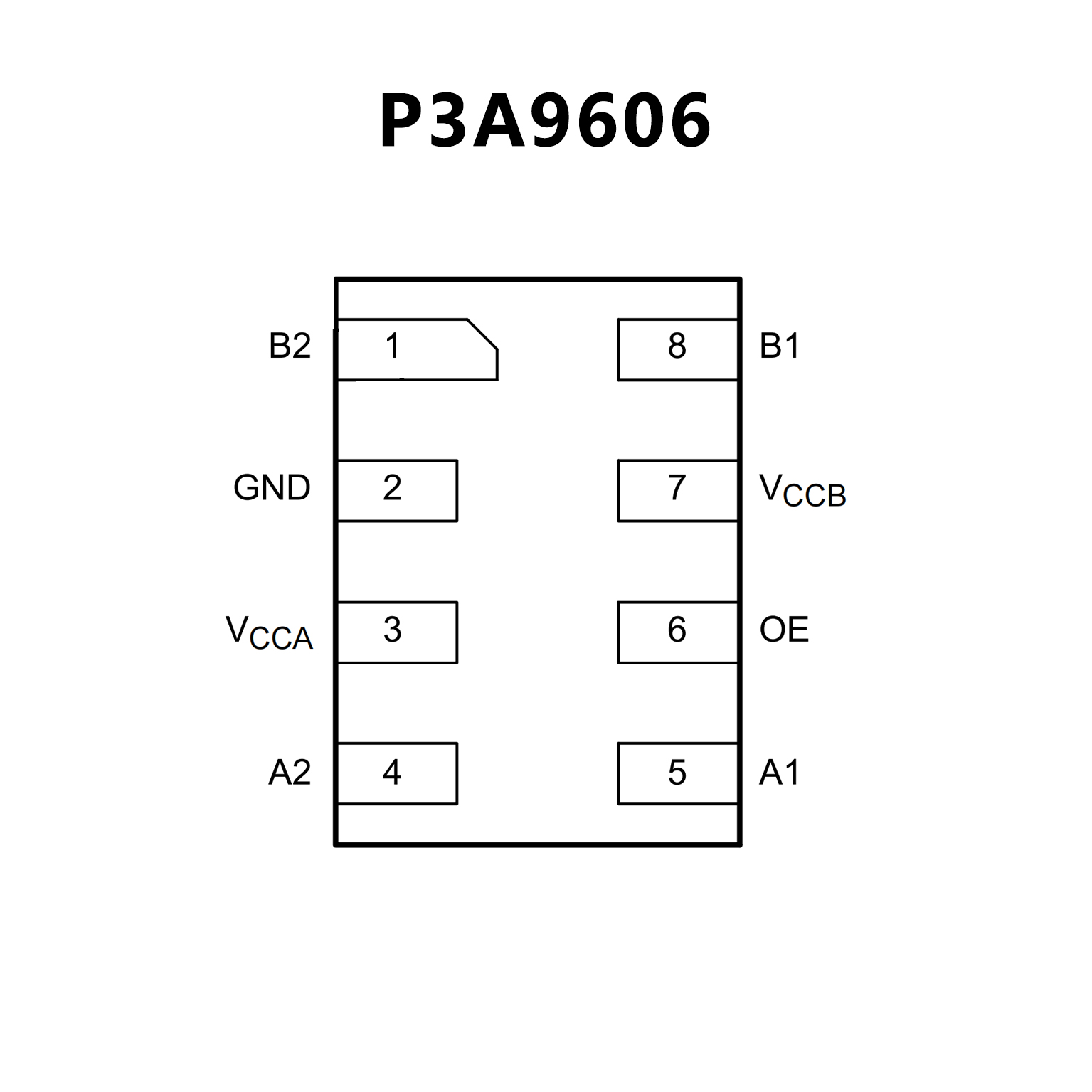

PIN CONFIGUTION
