High-speed USB 2.0 switch with enable, PI3USB221 Replace NX3DV221.
PI3USB221
PI3USB221.pdf
PI3USB221.pdfFEATURES
? VDD Operation at 2.5 V and 3.3 V
? VI/O Accepts Signals up to 5.5 V
? 1.8-V Compatible Control-Pin Inputs
? Low-Power Mode When OE Is Disabled (2 μA)
? rON = 6Ω Maximum
? ΔrON = 0.2Ω Typical
? Cio(on) = 6 pF Maximum
? Low Power Consumption (50 μA Maximum)
? ESD > 8kV contact on USB signal path per IEC61000-4-2)
? High Bandwidth (1.1 GHz Typical)
? Over Voltage Protection
? Packaging (Pb-free & Green): UQFN-10 and UDFN-10

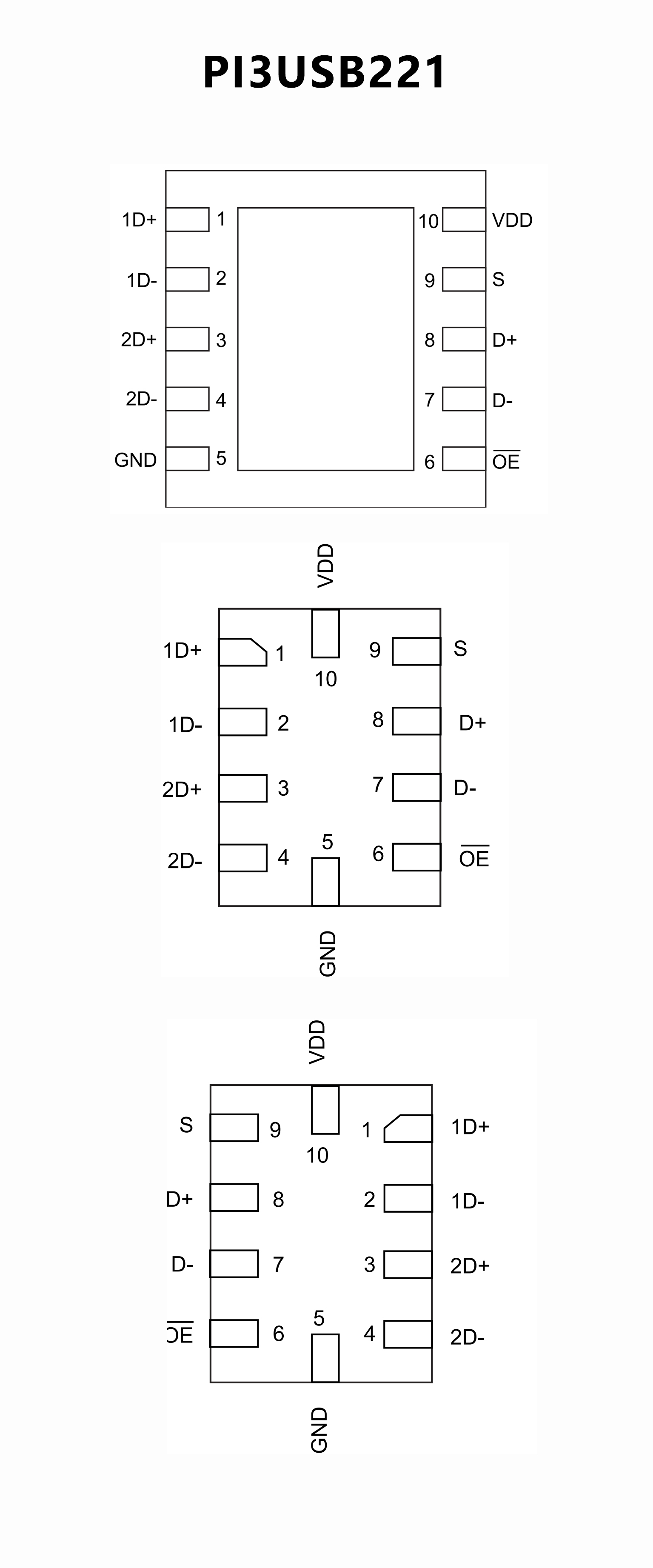

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide supply voltage range from 2.3 V to 3.6 V
? Switch voltage accepts signals up to 5.5 V
? 1.8 V control logic at VCC = 3.6 V
? Low-power mode when OE is HIGH (2 ?A maximum)
? 6Ω(maximum) ON resistance
? 0.1Ω (typical) ON resistance mismatch between channels
? 6 pF (typical) ON-state capacitance
? High bandwidth (1.0 GHz typical)
? Latch-up performance exceeds 100 mA per JESD 78B Class
II Level A
? ESD protection:
? HBM JESD22-A114F Class 3A exceeds 8000 V
? CDM JESD22-C101E exceeds 1000 V
? HBM exceeds 12000 V for I/O to GND protection
? Specified from -40 ℃ to +85 ℃
PIN CONFIGUTION
