High Speed USB 2.0 1:2 Mux/DeMux, PI3USB3000 Replace TS3USB3000.
PI3USB3000
PI3USB3000.pdf
PI3USB3000.pdfFEATURES
? Differential Bidirectional 2:1 Mux/DeMux
? Wide Input Voltage Range: 0 to 3.6V
? Mobile Hi-Definition Link (MHL) Switch:
Bandwidth (-3dB): 5.3GHz
RON (Typical): 5.7Ω
CON (Typical): 1.5pF @ 240MHz
? USB Switch:
Bandwidth (-3dB): 5.5GHz
RON (Typical): 4.6Ω
CON (Typical): 1.5pF @ 240MHz
? Low Propagation Delay, 0.1ns (Typical)
? Low Off-Isolation: -34dB @ 240MHz
? Low Crosstalk: -37dB @ 240MHz
? Low Power Consumption: 35?A (Typical)
? Wide Supply Voltage: 1.8V to 5.5V
? Supports 1.8V Logic on Control Pins
? Protection Feature
Power-off Protection for Minimizing Current
Leakage in Power-down Mode
? Connector Pins are High Voltage Tolerated
? D± Tolerance to 9V
Overvoltage Protection at D±
? Wide Temperature Range: -40oC to 85oC
? Packaging (Pb-free & Green):
10-contact, UQFN (ZUA), 1.5x2mm, 0.5mm(H),
0.6mm pitch

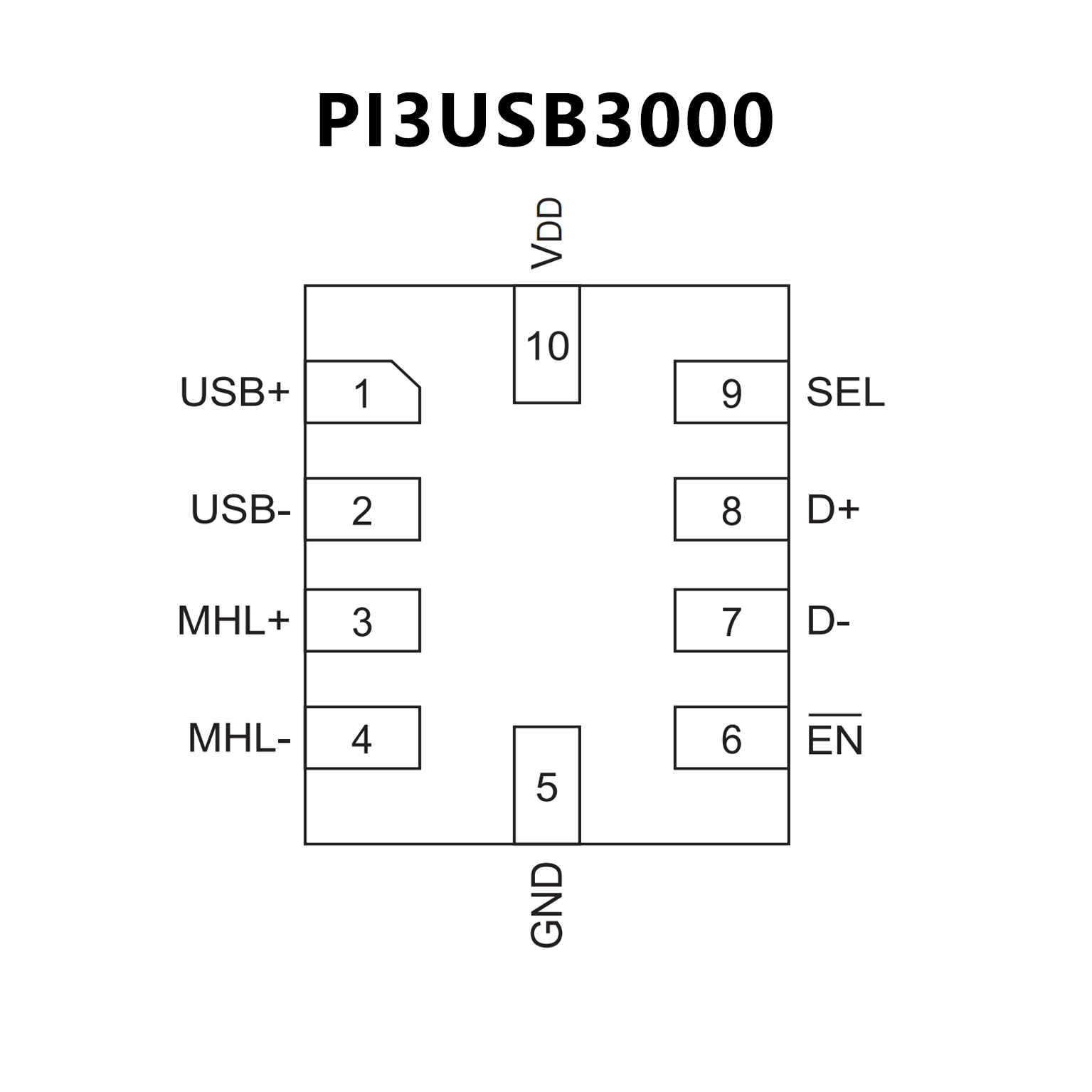

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? VCC Range 2.3 V to 4.8 V
? Mobile Hi-Definition Link (MHL) Switch:
– Bandwidth (–3 dB): 6.1 GHz
– RON (Typical): 5.7 Ω
– CON (Typical): 1.6 pF
? USB Switch:
– Bandwidth (–3 dB): 6.1 GHz
– RON (Typical): 4.6 Ω
– CON (Typical): 1.4 pF
? Current Consumption: 30 ?A (Typical)
? Special Features:
– IOFF Protection Prevents Current Leakage in
Powered-Down State (VCC and VBUS = 0 V)
– 1.8-V Compatible Control Inputs (SEL, OE)
– Overvoltage Tolerance (OVT) on all I/O Pins
up to 5.5 V Without External Components
– Overvoltage Protection When 9-V Short to
D+/-Pin
? ESD Performance:
– 3.5-kV Human Body Model (A114B, Class II)
– 1-kV Charged-Device Model (C101)
? 10-Pin UQFN Package
(1.5-mm × 2-mm, 0.5-mm Pitch)

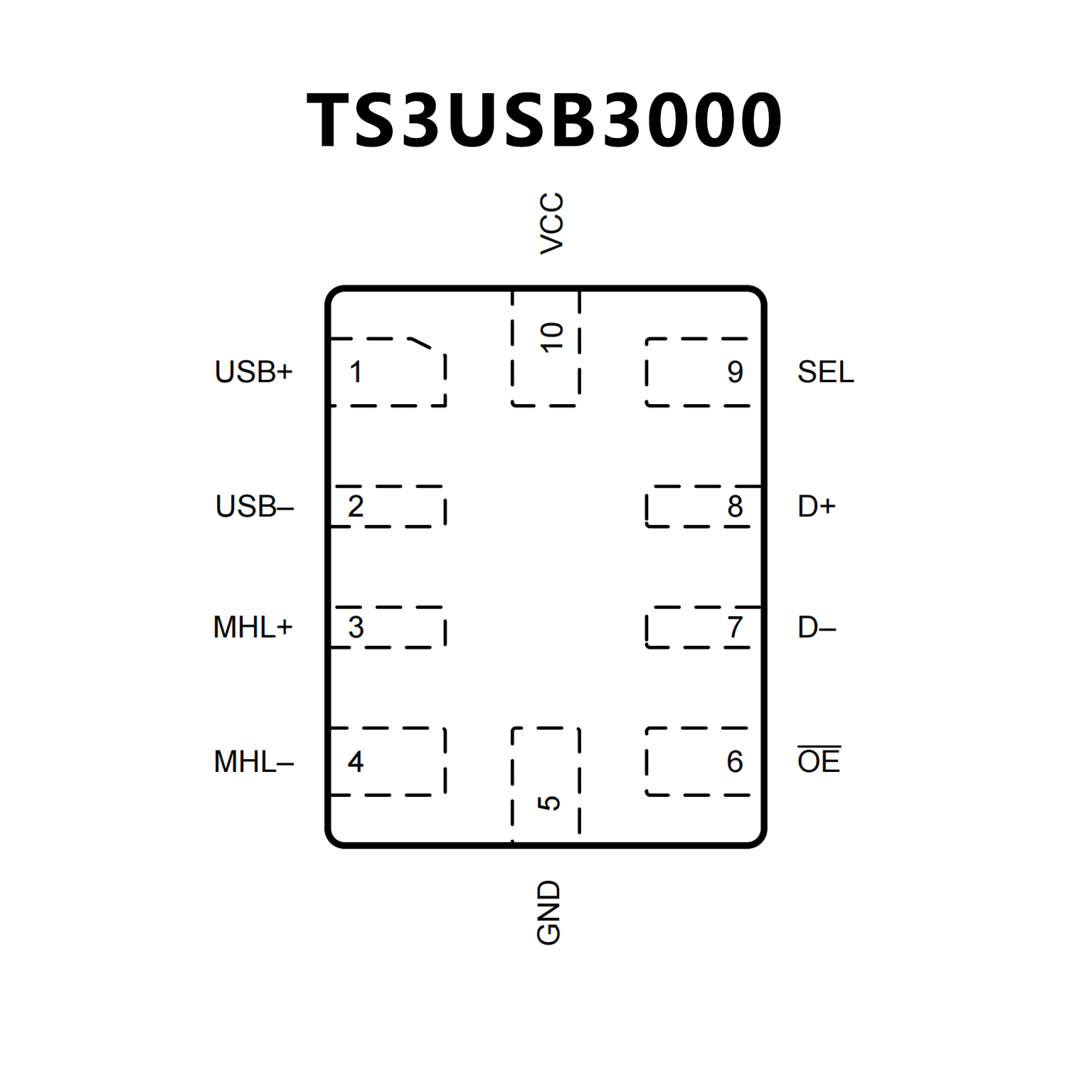

PIN CONFIGUTION
