2-Channel, 1:3, USB 2.0 and MHL MUX/DeMUX, PI3USB3031 Replace TS3USB3031.
PI3USB3031
PI3USB3031.pdf
PI3USB3031.pdfFEATURES
? Wide VCC Range: 1.8V to 5.5V
? Mobile High-Definition Link (MHL) or Mobility Display
Port (MyDP) Switch:
Bandwidth (-3dB): 6.5GHz
RON (Typical): 5.5Ω
CON (Typical): 1.3pF
? USB Switches (2 Sets):
Bandwidth (-3dB): 6.5GHz
RON (Typical): 4.5Ω
CON (Typical): 1pF
? Current Consumption: 28 ?A (Typical)
? IOFF Protection Prevents Current Leakage in Powered
-Down State (VCC = 0V)
? 1.8V Compatible Control Inputs (SEL)
? Overvoltage Tolerance (OVT) on All I/O Pins Up to 5V
Without External Components
? ESD Protection : 2kV(HBM), 1kV(CDM)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaging (Pb-free & Green):
12-Pin, 1.8mm x 1.8mm, 0.4mm pitch (WQFN)
12-Pin, 1.6mm x 1.6mm, 0.4mm pitch (X2-QFN)

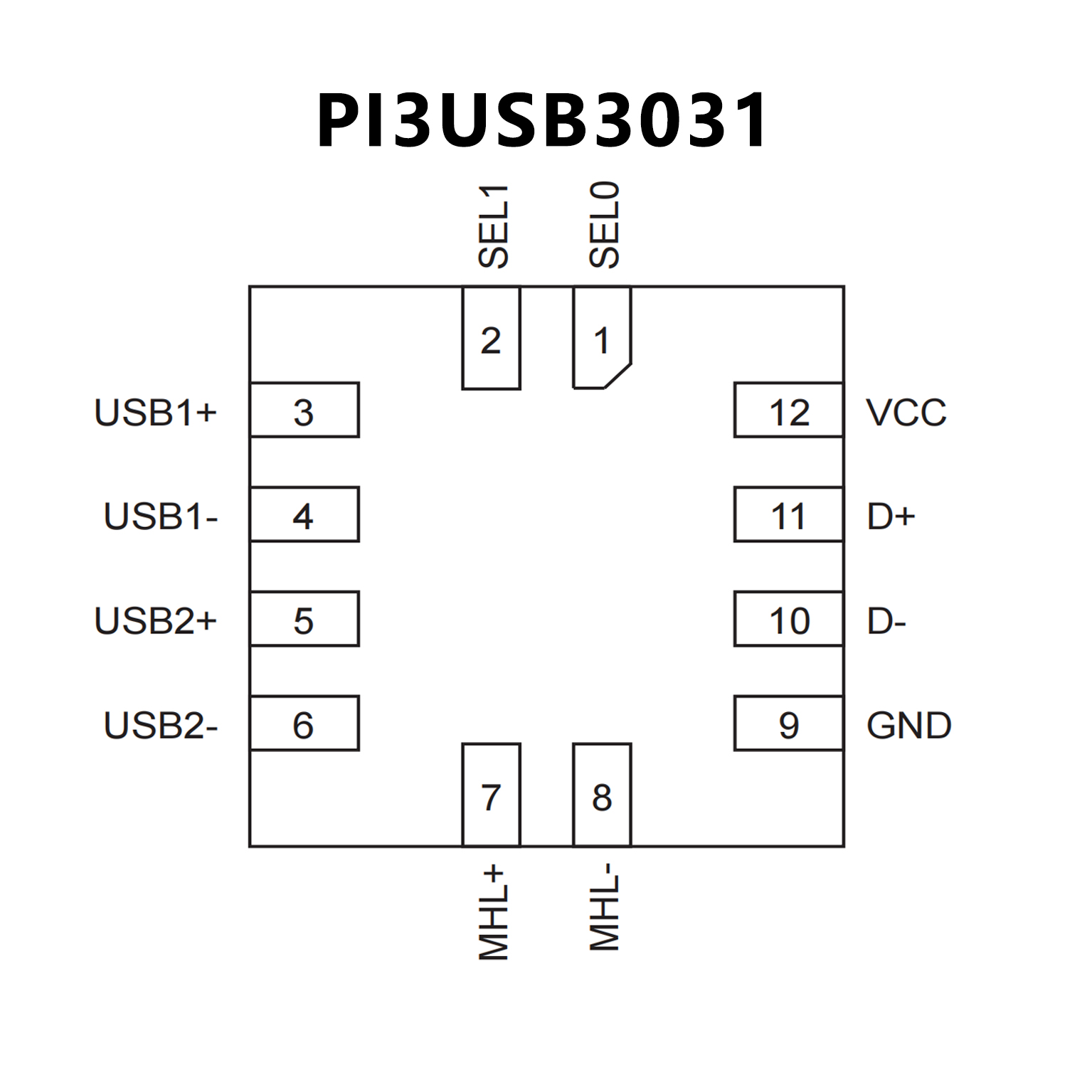

PIN CONFIGUTION
優勢替代
FEATURES
? VCC range: 2.5V to 4.3V
? Mobile high-definition link (MHL) or mobility display
port (MyDP) switch:
– Bandwidth (–3dB): 6.5GHz
– RON (typical): 5.5Ω
– CON (typical): 1.3pF
? USB switches (2 sets):
– Bandwidth (–3dB): 6.5GHz
– RON (typical): 4.5Ω
– CON (typical): 1pF
? Current consumption: 28?A (typical)
? Special features:
– IOFF protection prevents current leakage in
powered-down state (VCC = 0V)
– 1.8V compatible control inputs (SEL)
– Overvoltage tolerance (OVT) on all I/O pins up
to 5.5V without external components
? ESD performance:
– 2kV human-body model (A114B, class II)
– 1kV charged-device model (C101)
? Package:
– 12-pin VQFN package (1.8mm × 1.8mm,0.4mm pitch)

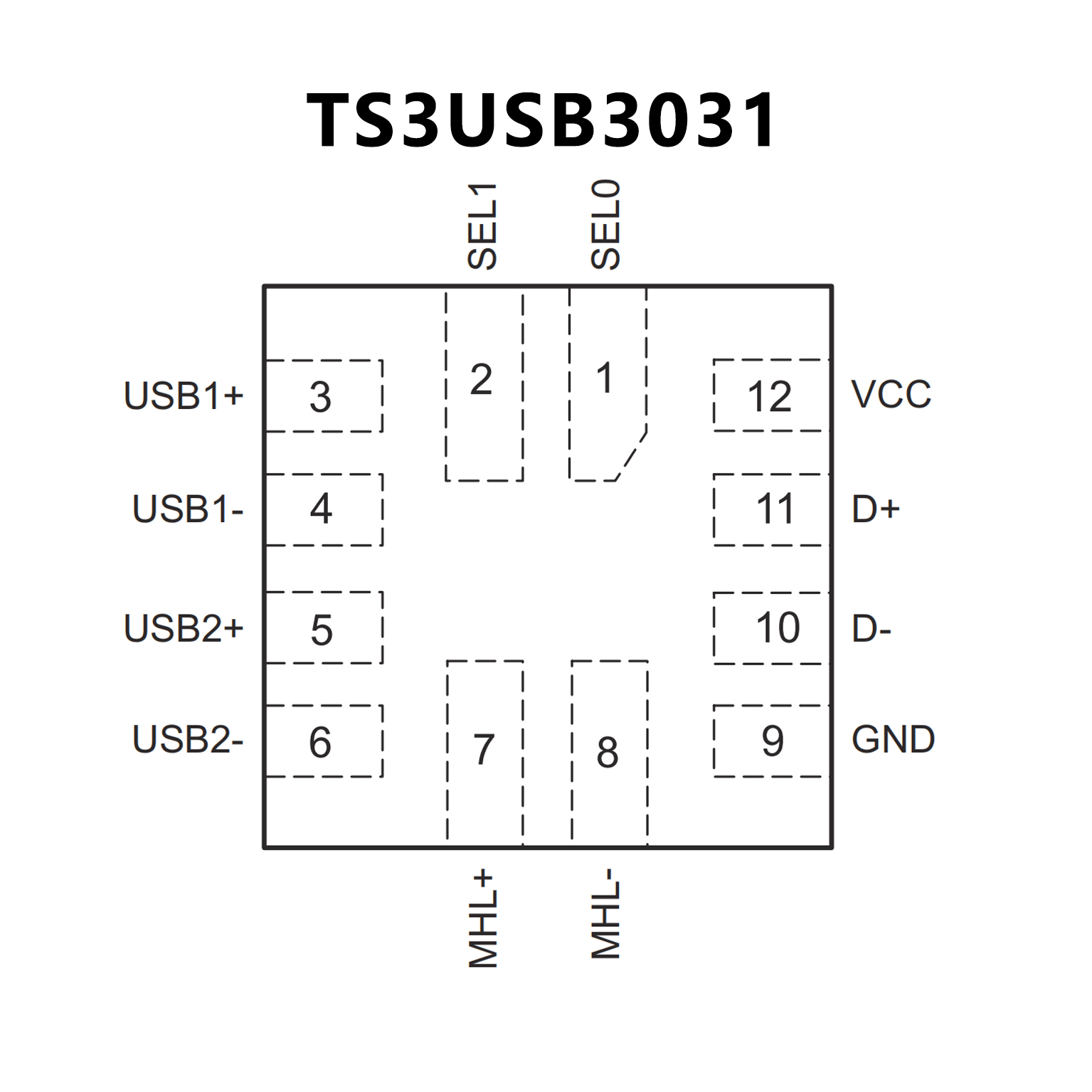

PIN CONFIGUTION
