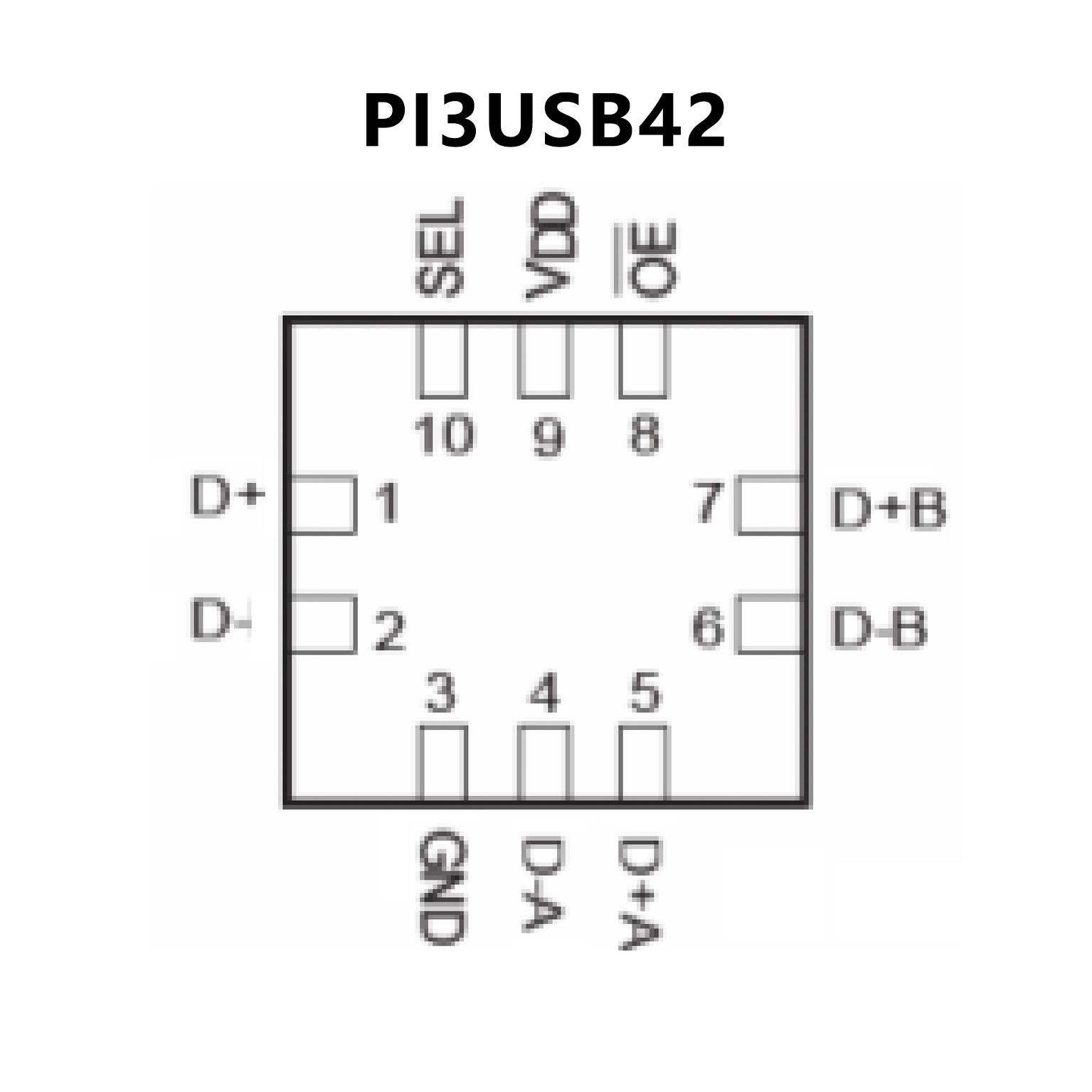

PI3USB42.pdf? USB 2.0 compliant (high speed and full speed)
? Ron is 4.0Ω typical @ Vpp = 3.0V
? Low bit-to-bit skew
? Low Crosstalk:-41dB @ 240 MHz
? Off Isolation:-37dB @ 240 MHz
? Wide -3db bandwidth: 770MHz
? Near-Zero propagation delay: 250ps
? Support for 1.8V/2.5V/3.3V Logic on Control pins
? Channel On Capacitance: 6.0pF
? VDD Operating Range: 1.8V to 4.5V
? Data pin I/O ESD: >8kV HBM protection per JESD22-
Al14D specification
? I/O pins have over-voltage protection and can tolerate a
shortto Vbus
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Gren” Device (Note 3)
? For automotive applications requiring specific change
control
? Packaging (Pb-free & Green): 10-pin UQFN (ZM10)

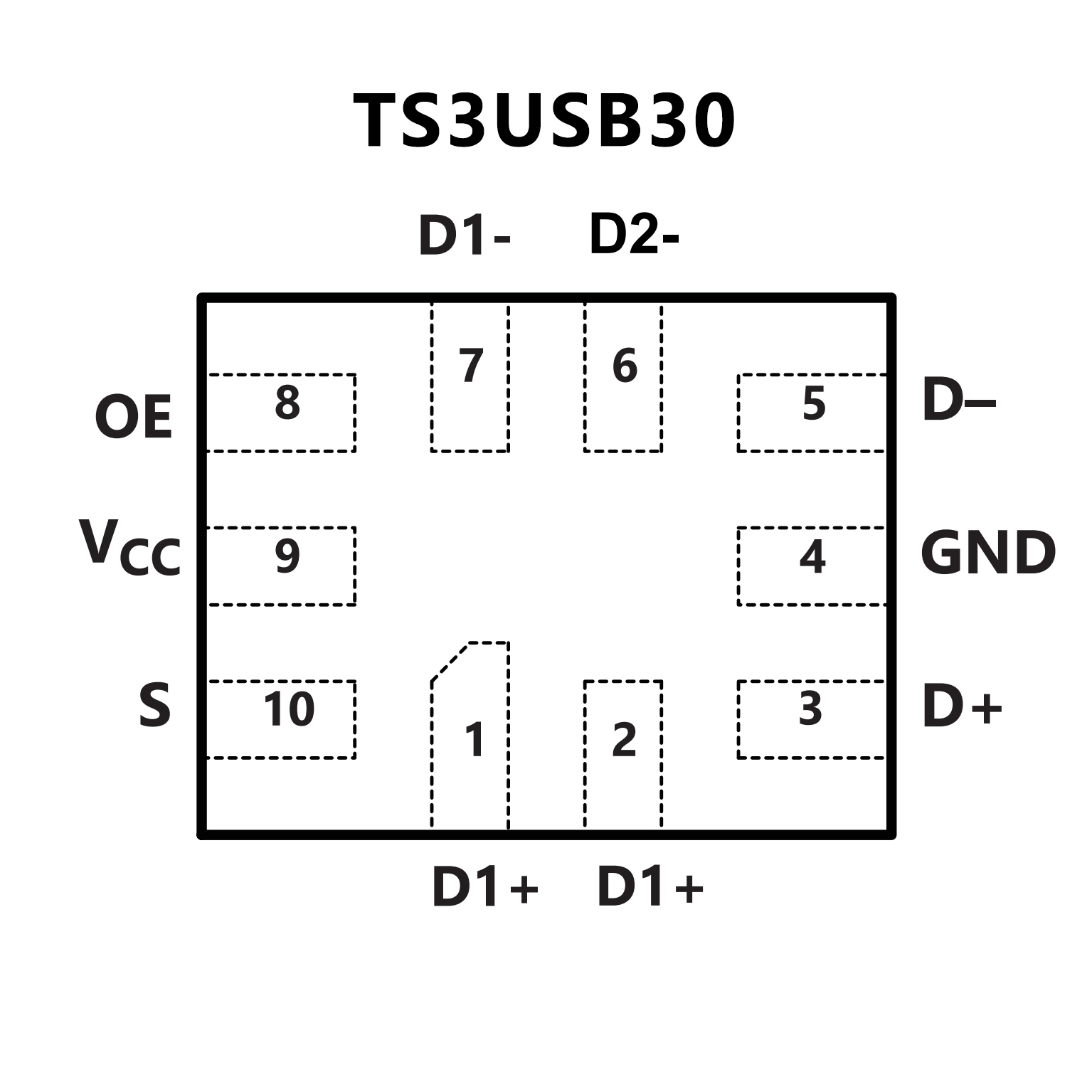

? VCC Operation at 3 V and 4.3 V
? 1.8-V Compatible Control-Pin Inputs
? IOFF Supports Partial Power-Down-Mode Operation
? Ron = 10 ? Maximum
ΔRon <0.35 ? Typical
? Cio(ON) = 7 pF Typical
? Low Power Consumption (1 μA Maximum)
? ESD Performance Tested Per JESD 22
6000-V Human Body Model (HBM)
(A114-B, Class II)
1000-V Charged-Device Model (C101)
250-V Machine Model (A115-A)
? –3-dB Bandwidth = 955 MHz Typical
? Packaged in 10-pin UQFN (1.4 mm × 1.8 mm)
