PI4IOE5V6416.pdf? Operation power supply voltage from 1.65V to 5.5V
? Allows bidirectional voltage-level translation and GPIO
expansion between:
1.8/2.5/3.3/5V SCL/SDA and 1.8/2.5/3.3/5V Port
? Low standby current consumption:
1.5μA typical at 5V VpD
lμA typical at 3.3V VoD
? 400kHz PC-bus interface
? Compliant with the PC-bus Fast and Standard modes
? Programmable Push-pull/Open-drain output stages
? Programmable output drive strength and pull-up/down
resistor
? Power-on reset
? Active LOW open-drain interrupt output
? Active LOW reset input
? Latch-up tested (exceeds 100mA)

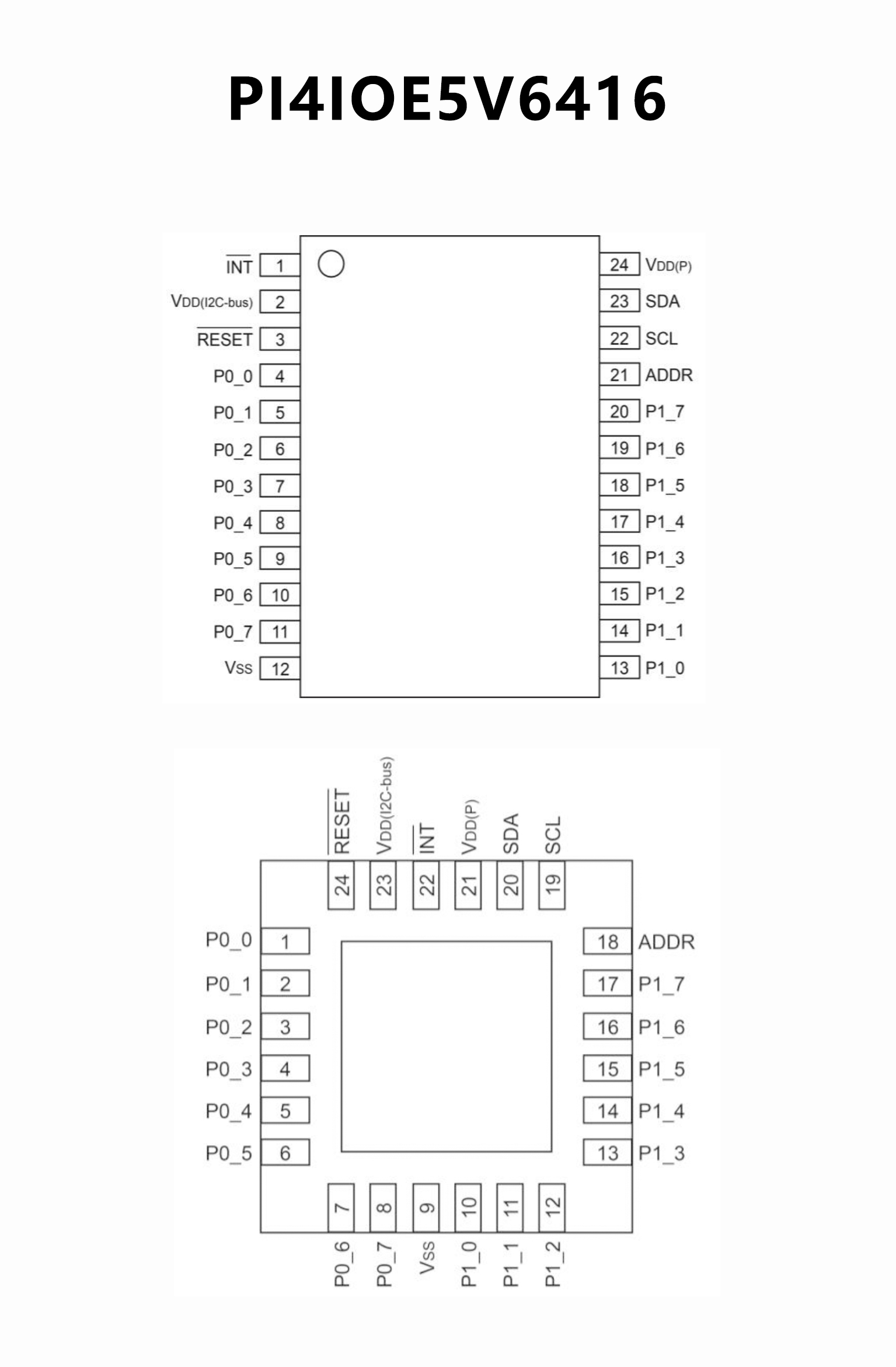

? Packaging (Pb-free & Green):
24-Pin, TQFN (ZD24)
24-Pin, TSSOP (L24)
? For automotive applications requiring specific change
control
? I2C-bus to parallel port expander
? Packages offered: TSSOP24, HWQFN24, UFBGA24,
VFBGA24, XFBGA24,X2QFN24 (LGA, Land Grid Array)
