4-Bit 100 Mb/s Configurable Dual-Supply Level Translator, PI4ULS3V304 Replace NLVSX4014.
PI4ULS3V304
PI4ULS3V304.pdf
PI4ULS3V304.pdfFEATURES
? 0.85V to 2.7V on A Port and 1.35V to 3.6V on B Port
? VCCA may be greater than, equal to, or less than VCCB
? High-Speed with 140 Mb/s Guaranteed Date Rate
? 100 pF Capacitive Drive Capability
? Low Bit-to-Bit Skew
? Overvoltage Tolerant Enable and I/O Pins
? Non-preferential Power-Up Sequencing
? Power-Off Protection
? Package: UQFN1.7x2.0-12L

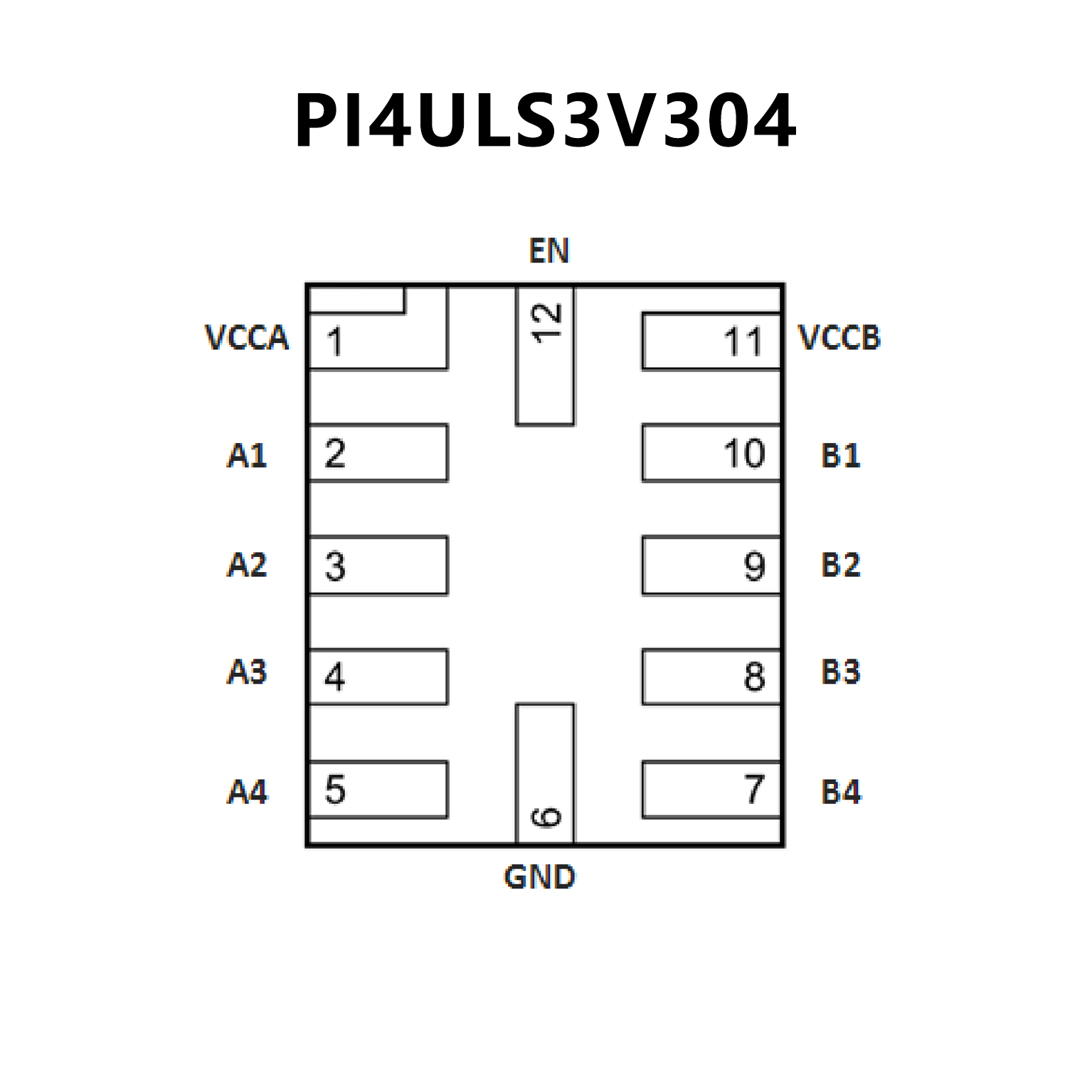

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide High?Side VCC Operating Range: 1.3V to 4.5V
Wide Low?Side VL Operating Range: 0.9V to (VCC?0.4)V
? Power Supply Isolation
All Outputs are in the High Impedance State if Either
VL or VCC is at Ground
? High?Speed with 100 Mb/s Guaranteed Date Rate for
VL > 1.6 V
? Low Bit?to?Bit Skew
? Overvoltage Tolerant Enable and I/O Pins
? Non?preferential Powerup Sequencing
? Small packaging: 1.7 mm x 2.0 mm UQFN12
? NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q100
Qualified and PPAP Capable
? These are Pb?Free Devices
PIN CONFIGUTION
