I2C Bus/SMBus Repeater, PI6ULS5V9515 Replace PCA9515.
PI6ULS5V9515
PI6ULS5V9515.pdf
PI6ULS5V9515.pdfFEATURES
? 2 channel, bidirectional buffer
? I2C-bus and SMBus compatible
? Operating supply voltage range of 2.3 V to 3.6 V
? Active HIGH repeater enable input
? Open-drain input/outputs
? Lock-up free operation
? Supports arbitration and clock stretching across the
repeater
? Accommodates Standard-mode and Fast-mode I2C
bus devices and multiple masters
? Powered-off high-impedance I2C-bus pins
? 5.5 V tolerant I2C-bus and enable pins
? 0 Hz to 400 kHz clock frequency (the maximum
system operating frequency may be less than 400
kHz because of the delays added by the repeater)
? ESD protection exceeds 4KV HBM per JESD22-A114
? Package: MSOP-8, SOIC-8 and DFN2x3-8L

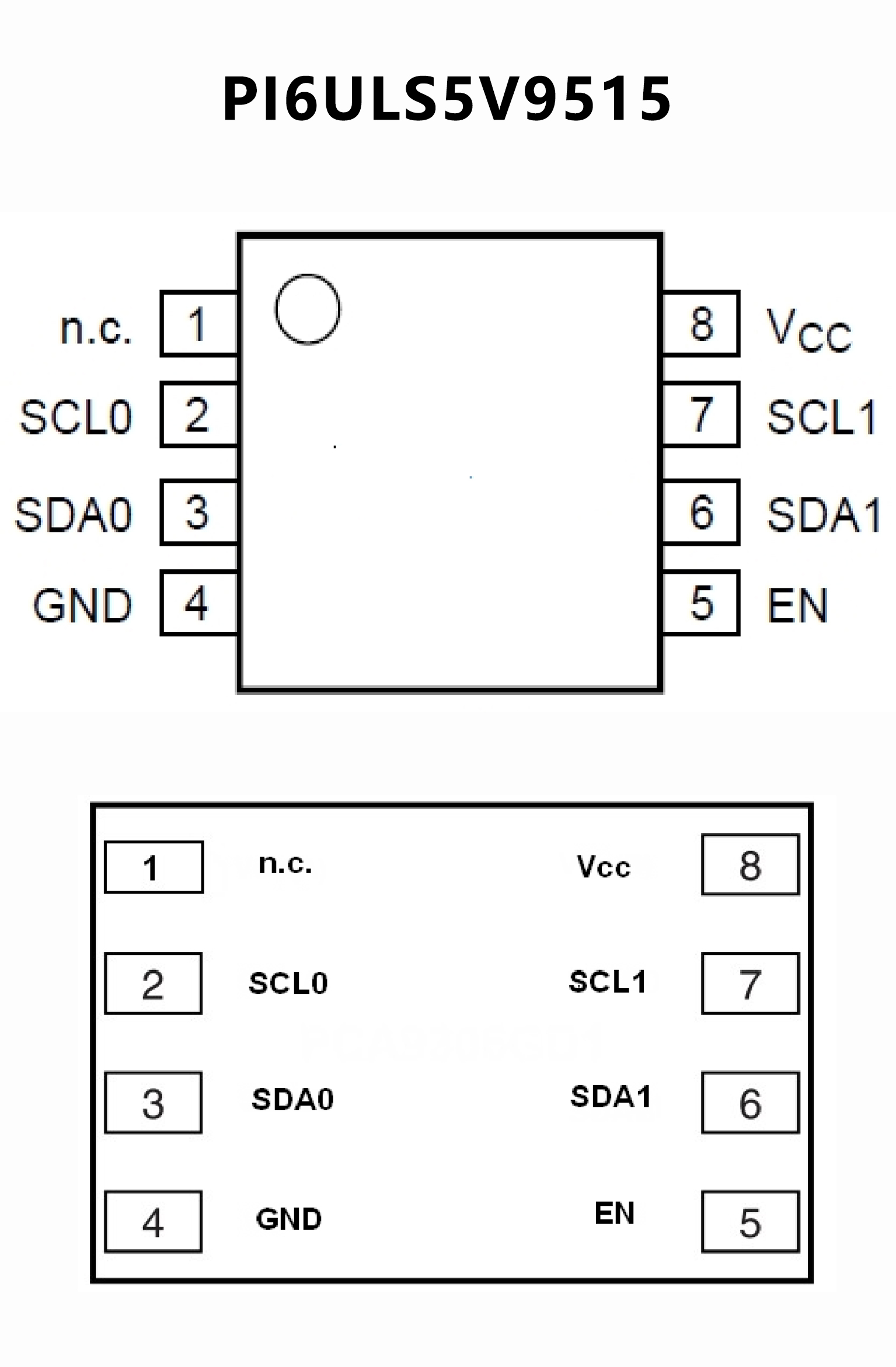

PIN CONFIGUTION
優勢替代
FEATURES
? Two-Channel Bidirectional Buffers
? I2C Bus and SMBus Compatible
? Active-High Repeater-Enable Input
? Open-Drain I?C I/O
? 5.5-V Tolerant I?C I/O and Enable Input Support
Mixed-Mode Signal Operation
? Lockup-Free Operation
? Accommodates Standard Mode and Fast Mode
? I?C Devices and Multiple Masters
? Powered-Off High-Impedance I?C Pins
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class Il
? ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
PIN CONFIGUTION
