2.7V 14V Vin, 30W Fully Integrated Synchronous Boost Converter, SCT12A0 Replace SGM6610.
SCT12A0
SCT12A0.pdf
SCT12A0.pdfFEATURES
? Wide Input Voltage Range: 2.7V-14.0V
? Wide Output Voltage Range: 4.5V-14.6V
? Fully Integrated High-side/Low-side Power
MOSFETs：13m?/11m?
? Up to 12A Switch Current and Programmable
Peak Current Limit
? Typical Shut-down Current: 1uA
? Programmable Switching Frequency: 200kHz-
2.2MHz
? Output Overvoltage Protection at 15.4V
? Feedback Overvoltage Protection at 110% of
Reference Voltage
? Selectable PFM or Forced PWM Mode
? Programmable Soft Start
? Thermal Shutdown Protection: 150°C
? Available in DFN-20 3.5mmx4.5mm Package

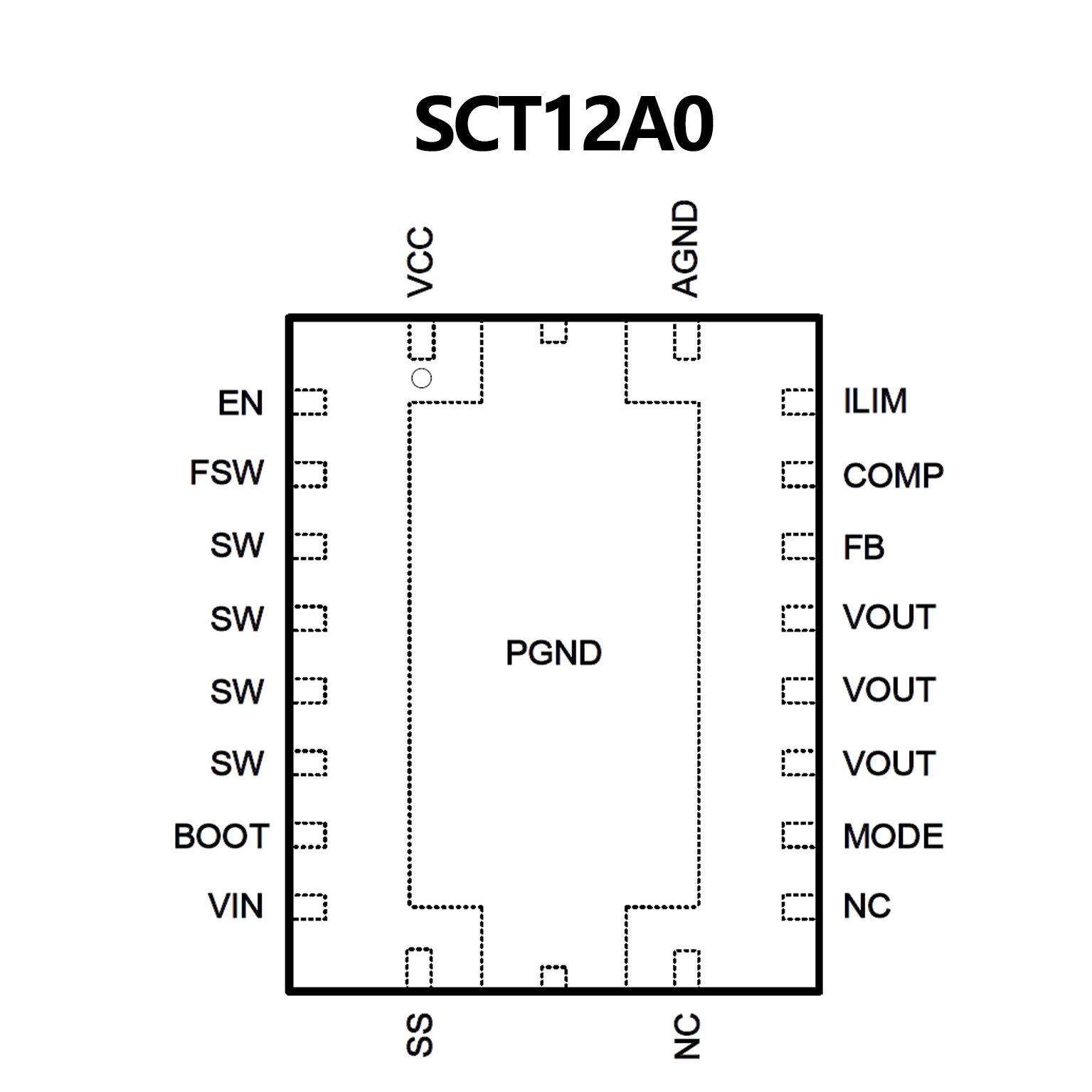

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Input Voltage Range: 2.7V to 12V
? Output Voltage Range: 4.5V to 12.6V
? 10A Switch Current
? Up to 91% Efficiency at VIN = 3.3V, VOUT = 9V
and IOUT = 3A
? Mode Selection Between PFM Mode and Forced
PWM Mode at Light Load
? 1μA Current into VIN Pin during Shutdown
? Resistor-Programmable Switch Peak Current Limit
? Adjustable Switching Frequency: 200kHz to 2.2MHz
? Programmable Soft-Start
? Output Over-Voltage Protection at 13.2V
? Cycle-by-Cycle Over-Current Protection
? Thermal Shutdown
? Available in Green TQFN-4.5×3.5-20L Package

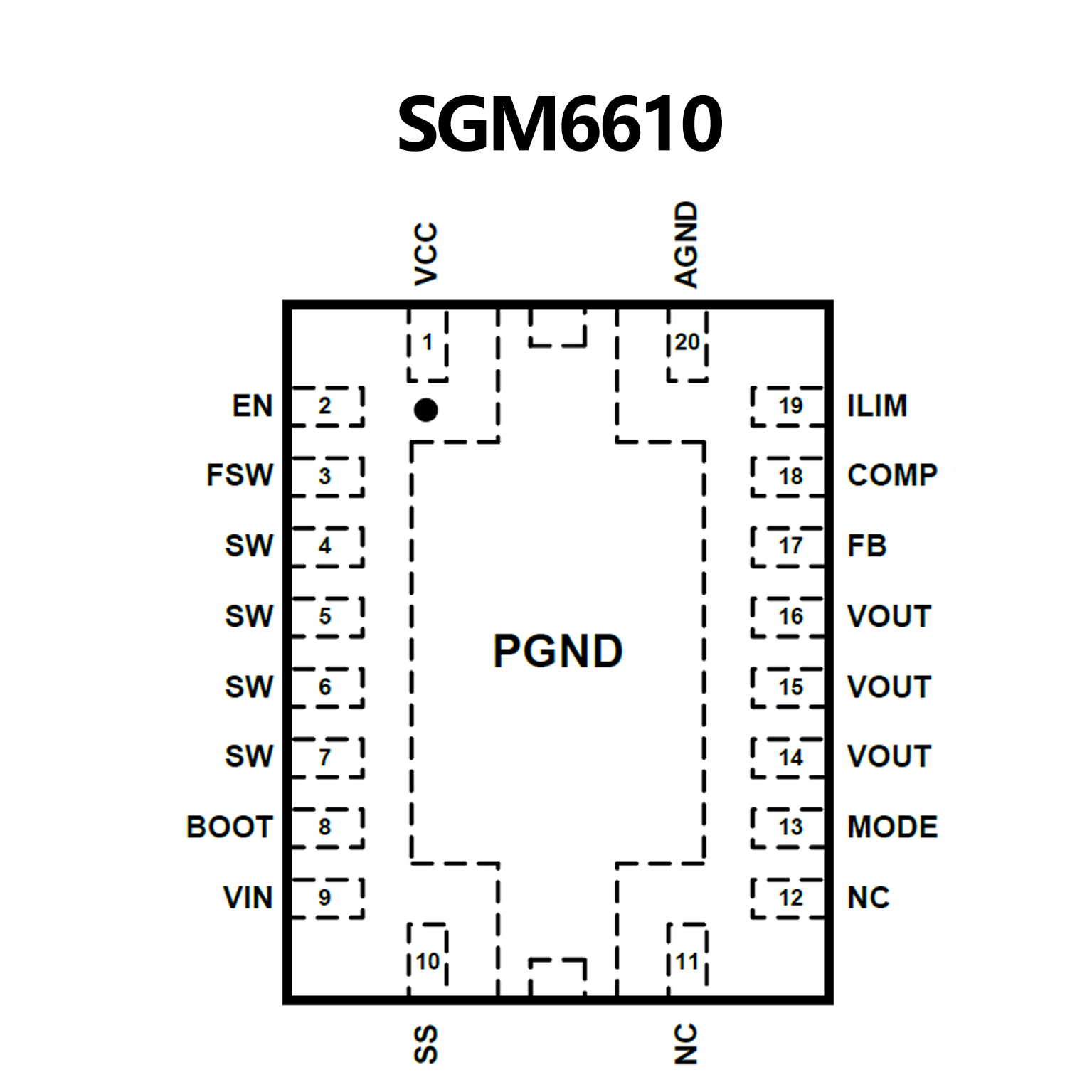

PIN CONFIGUTION
