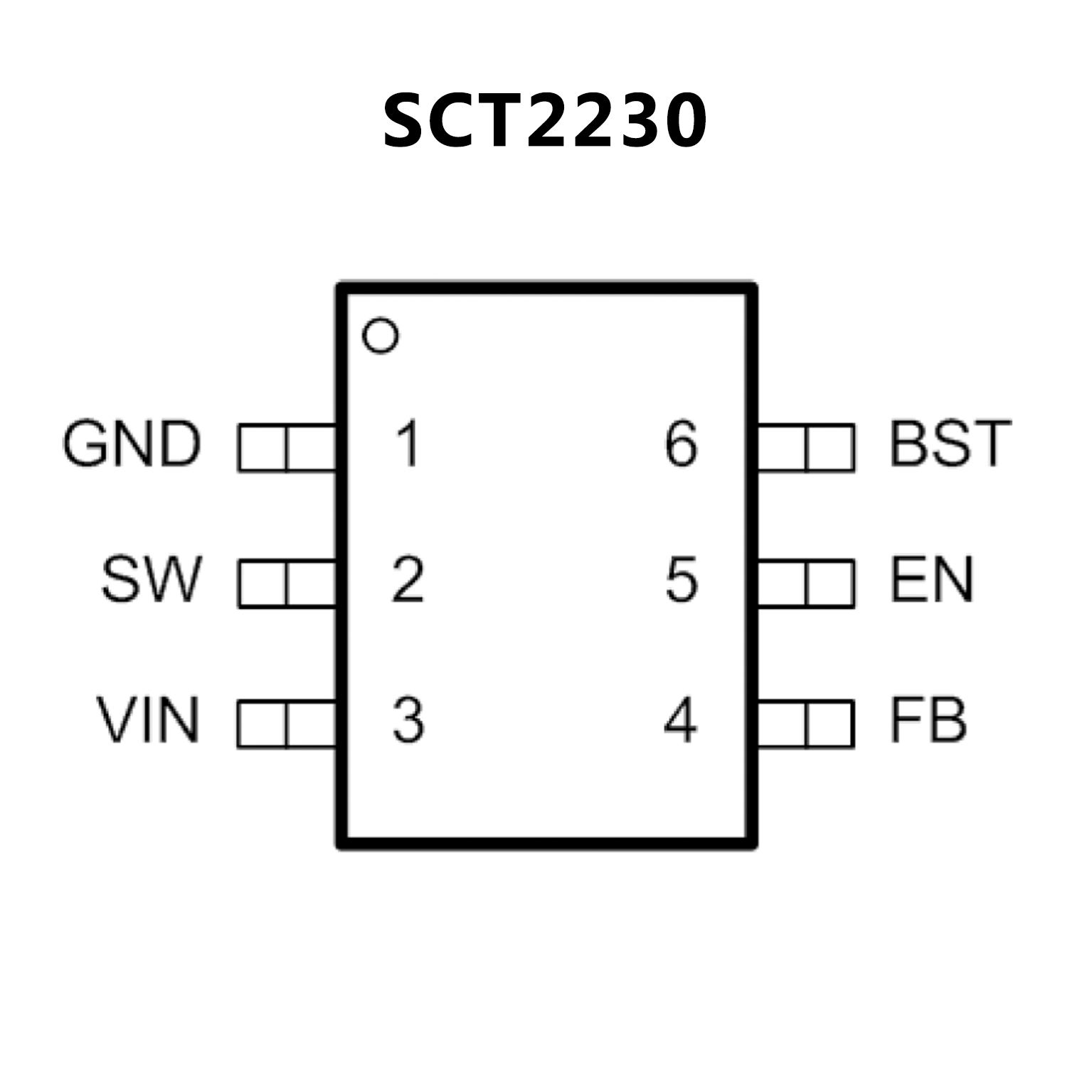

SCT2230.pdf? Wide Input Voltage: 4.2-17V
? 3A Continuous Output Current
with Integrated 70mΩ/35mΩFETs
? Wide Output Voltage Range:0.8V-7V
? Quiescent Current 150uA
? Cycle-by-Cycle Current Limiting
? Internal 2ms Soft-Start Limits the inrush current
? Fixed 800kHz Switching Frequency
? Input Under-Voltage Lockout
? Power save mode at light load
? Over-Temperature Protection
? Available in a SOT563 and TSOT23 Package

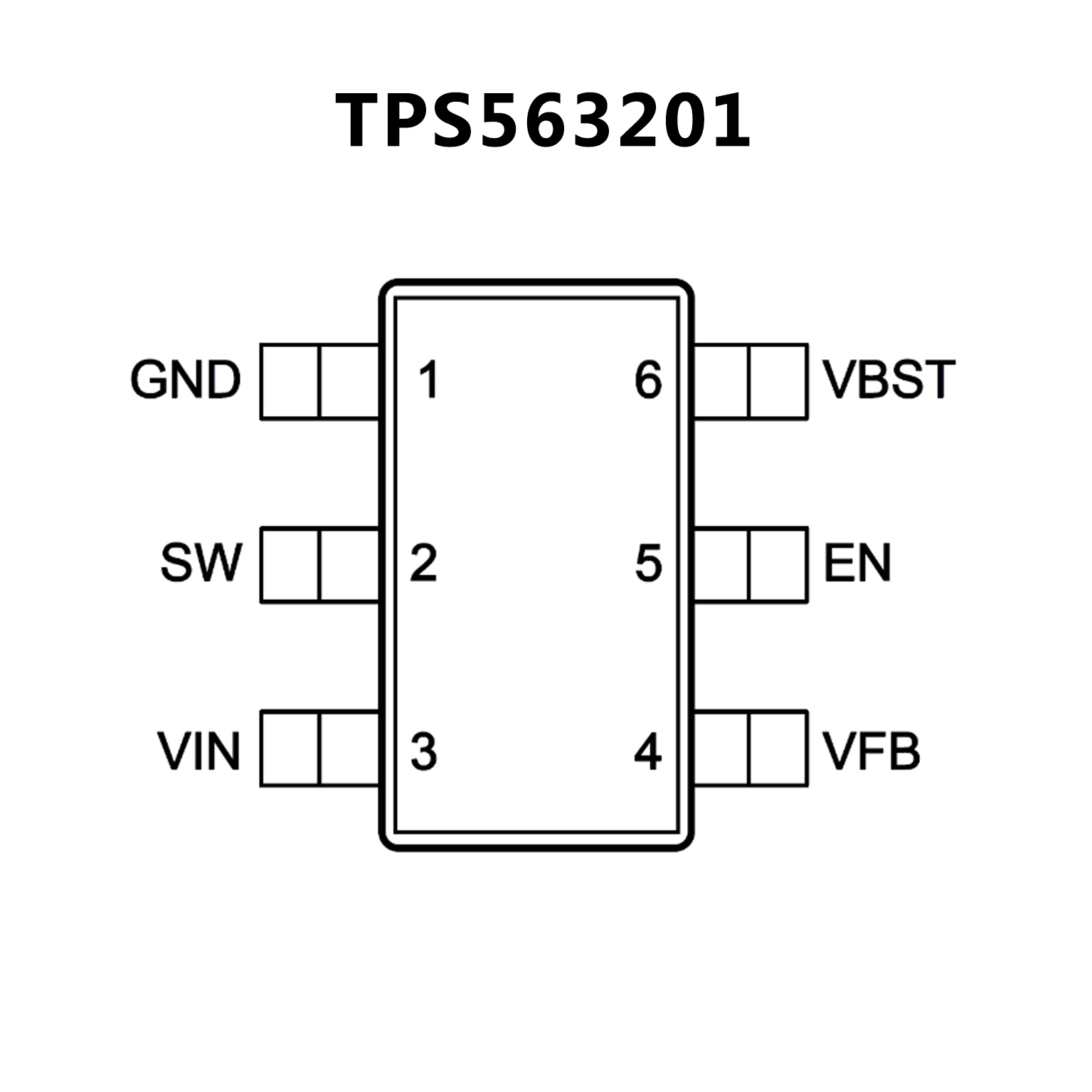

? TPS563201 and TPS563208 3-A Converter
Integrated 95-m? and 57-m? FETs
? D-CAP2? Mode Control with fast transient response
? Input Voltage Range: 4.5 V to 17 V
? Output Voltage Range: 0.76 V to 7 V
? Pulse-skip mode (TPS563201) or
Continuous Current Mode (TPS563208)
? 580-kHz Switching Frequency
? Low Shutdown Current Less than 10 ?A
? 2% Feedback Voltage Accuracy (25 ?C)
? Startup from Pre-Biased Output Voltage
? Cycle-by-Cycle Overcurrent Limit
? Hiccup-mode Overcurrent Protection
? Non-Latch UVP and TSD Protections
? Fixed Soft Start: 1.0 ms
