SCT2430Q.pdf? Qualified for Automotive Applications
? Qualified for Automotive Applications
? AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level H1C
- Device CDM ESD Classification Level C3B
? High Efficiency at Light Loads With Pulse Skipping
Eco-modeTM
? 92-mQ High-Side MOSFET
? 146-μA Operating Quiescent Current and 2-μA
Shutdown Current
? 100-kHz to 2.5-MHz Adjustable Switching
Frequency
? Synchronizes to External Clock
? Low Dropout at Light Loads With Integrated
BOOT Recharge FET
? Adjustable UVLO Voltage and Hysteresis
? 0.8 V 1% Internal Voltage Reference

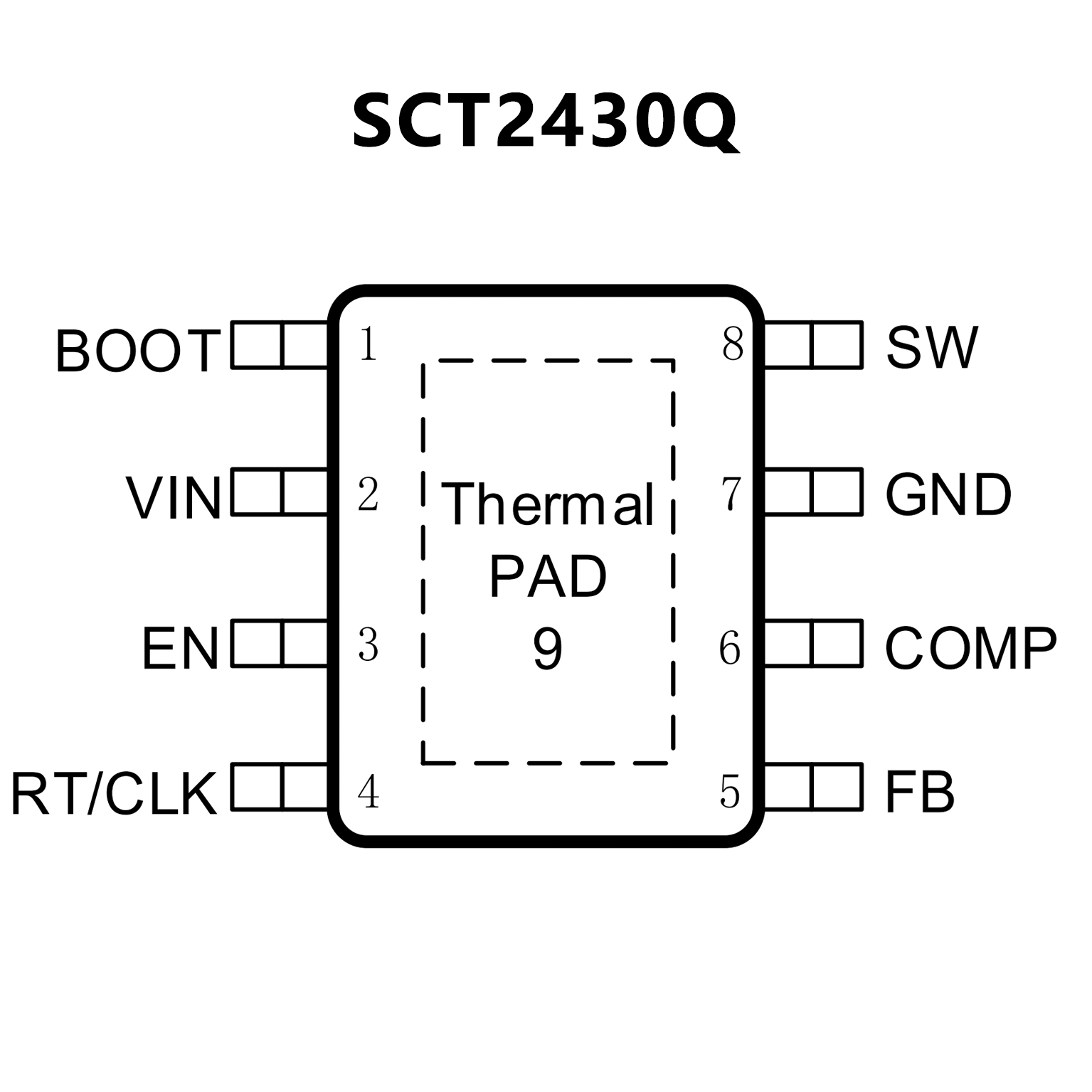

? 8-Pin HSOIC With PowerPADTM Package
? 40°C to 150°C T,Operating Range
? Supported by WEBENCH Software Tool
