SCT2434.pdf? Wide Input Range: 3.6V-40V
? Up to 3.5A Continuous Output Current
? 1V ±1% Feedback Reference Voltage
? Integrated 60m? High-Side and
36mΩ Low-Side Power MOSFETs
? Pulse Skipping Mode(PSM) with
25uA Quiescent Current in Sleep Mode
? 60ns Minimum On-time
? 4ms Internal Soft-start Time
? 400kHz Switching Frequency
? Frequency Spread Spectrum (FSS)
Modulation for EMI Reduction
? Precision Enable Threshold for
adjustable Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Parallel input path to minimize switch node ringing
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection

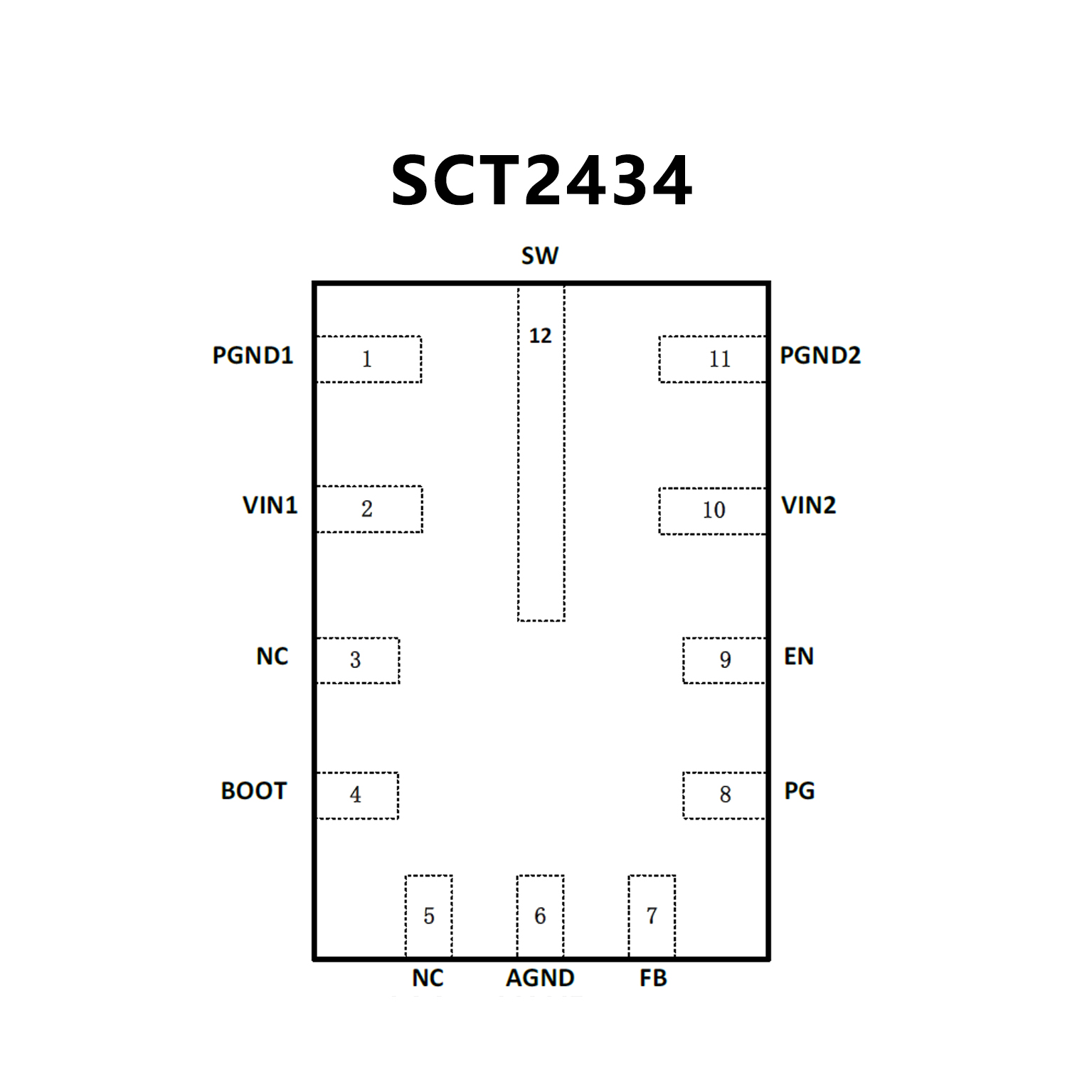

? Available in 2mm*3mm QFN-12L Package
? Functional Safety-Capable
? Documentation available to aid functional safety system design
? Configured for rugged industrial applications
? Input voltage range: 3.8 V to 36 V
? Output voltage range: 1 V to 24 V
? Output current: 2 A
? Peak-current-mode control
? Short minimum on-time of 68 ns
? Frequency: 400 kHz, 1.4 MHz, 2.1 MHz
? Junction temperature range –40°C to +125°C
? Low EMI and low switching noise
? Integrated compensation network
? Low EMI and switching noise
? HotRod? package
? Parallel input current paths
? High power conversion at all loads
? Peak efficiency > 95%
? Low operating quiescent current of 25 ?A
? Flexible system interface
? Power-good flag and precision enable
? Use TPSM53602 module for faster time to
market Create a custom design using the

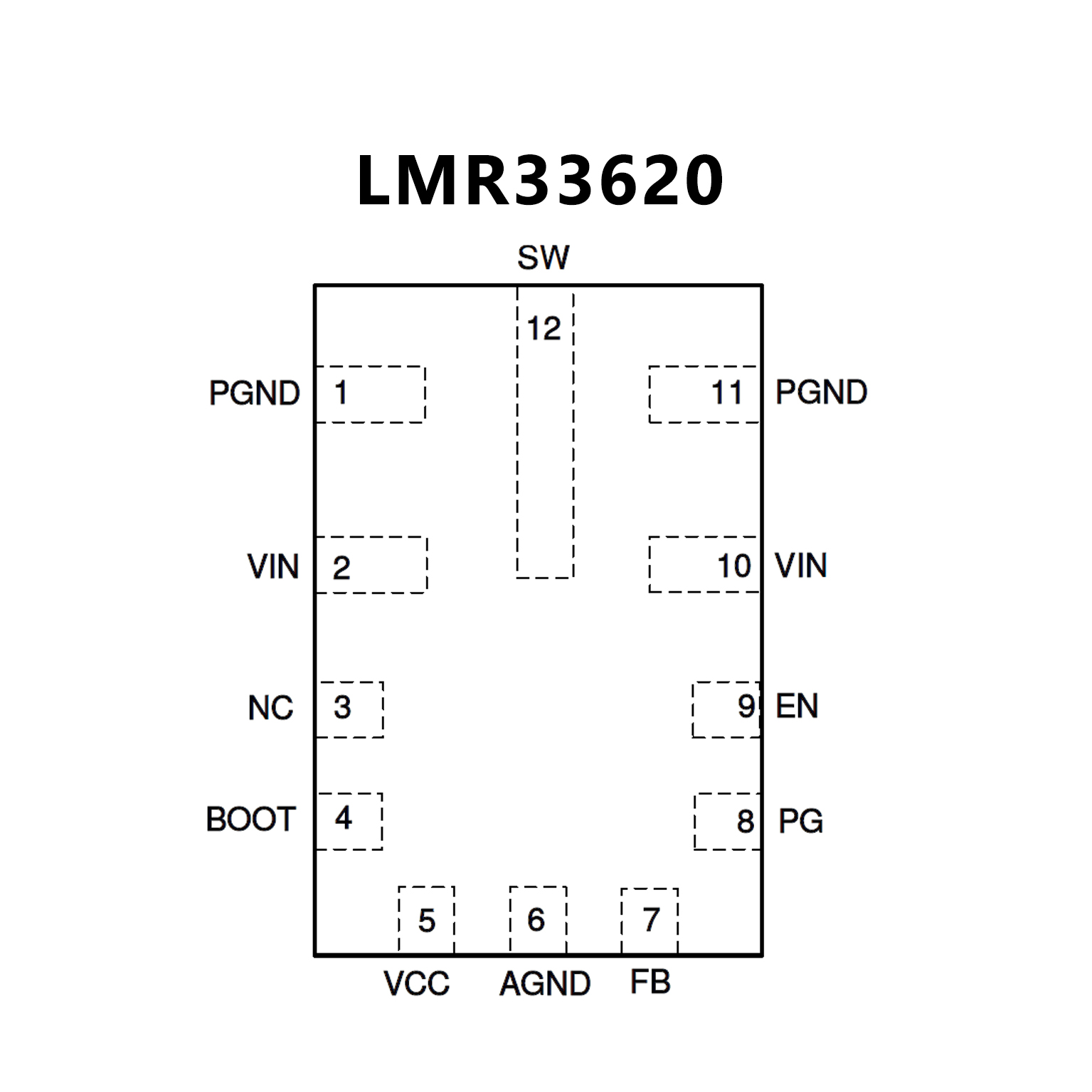

LMR33620 with the WEBENCH? Power Designer
