3.6V-36V Vin, 3.5A, High Efficiency Synchronous Step-down DCDC Converter, SCT2434AQ P2P LMR33630AQRNX.
SCT2434AQ
SCT2434AQ.pdf
SCT2434AQ.pdfFEATURES
? AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C3B
? Wide Input Range: 3.6V-36V
? Up to 3.5A Continuous Output Current
? 1V ±1% Feedback Reference Voltage
? Integrated 60m? High-Side and 36mΩ Low-Side
Power MOSFETs
? Pulse Skipping Mode (PSM) with 25uA Quiescent
Current in Sleep Mode
? 60ns Minimum On-time
? 4ms Internal Soft-start Time
? 400kHz Switching Frequency
? Frequency Spread Spectrum (FSS) Modulation for
EMI Reduction
? Precision Enable Threshold for adjustable Input
Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Parallel input path to minimize switch node ringing
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection
? Available in 2mm*3mm QFN-12L Package

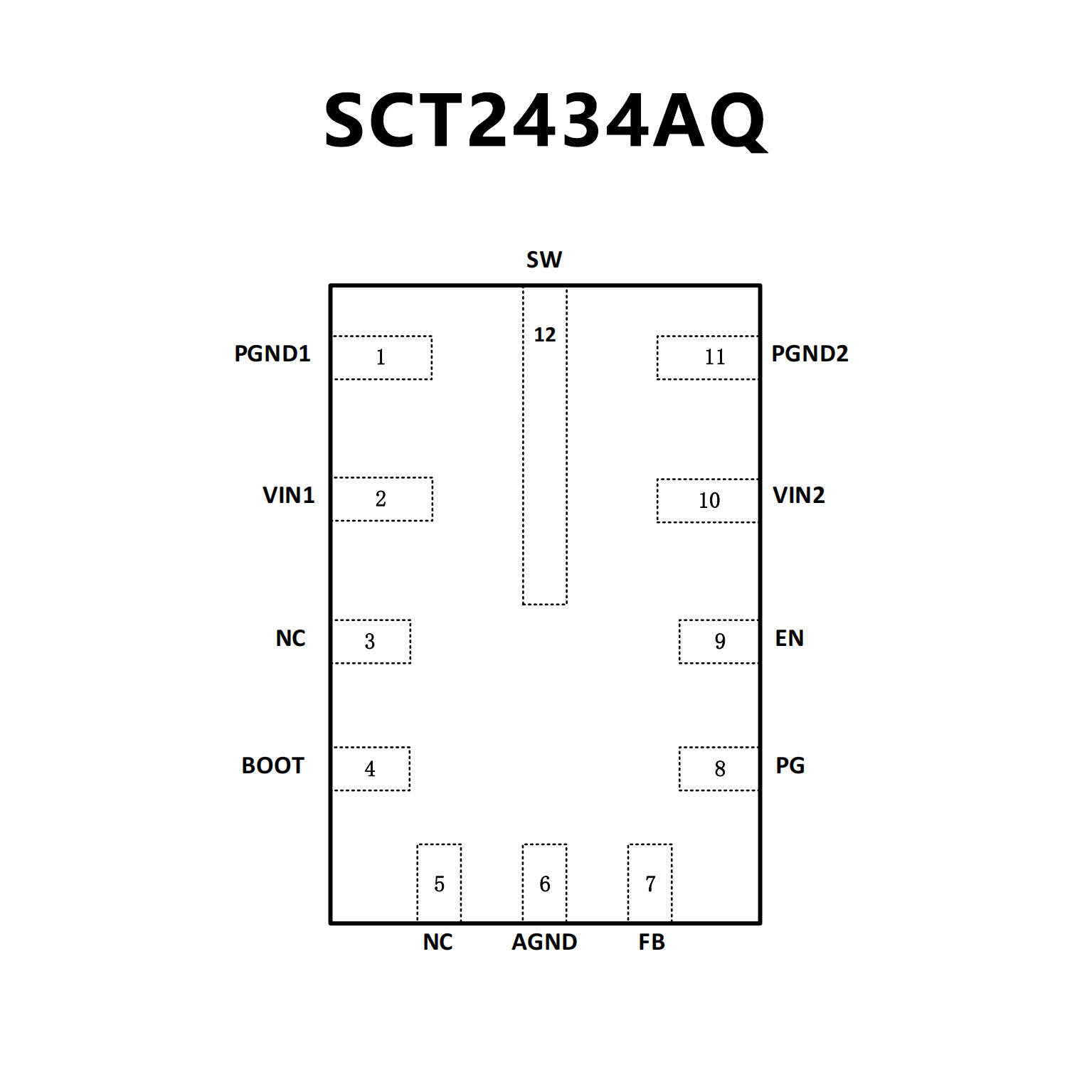

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to +125°C, TA
? Functional Safety-Capable
– Documentation available to aid functional safety
system design
? Configured for rugged automotive applications
– Input voltage range: 3.8 V to 36 V
– Output voltage range: 1 V to 24 V
– Output current: 3 A
– 75-mΩ/50-mΩ RDS-ON power MOSFETs
– Peak-current-mode control
– Short minimum on-time of 68 ns
– Frequency: 400 kHz, 1.4 MHz, 2.1 MHz
– Integrated compensation network
? Low EMI and switching noise
– HotRod? package
– Parallel input current paths
? High power conversion at all loads
– Peak efficiency > 95%
– Low shutdown quiescent current of 5 ?A
– Low operating quiescent current of 25 ?A
? Create a custom design using the LMR33630-Q1
with the WEBENCH? Power Designer

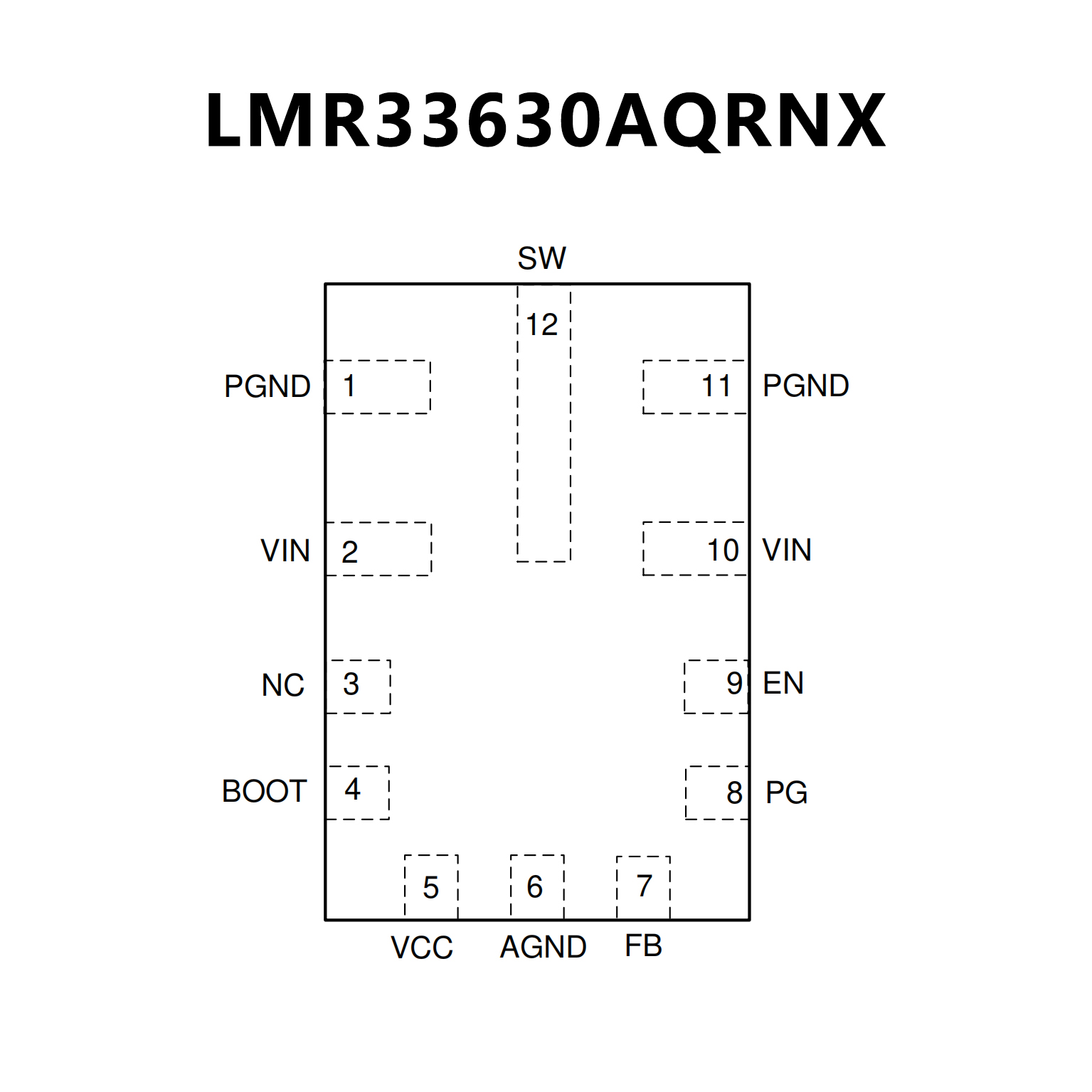

PIN CONFIGUTION
