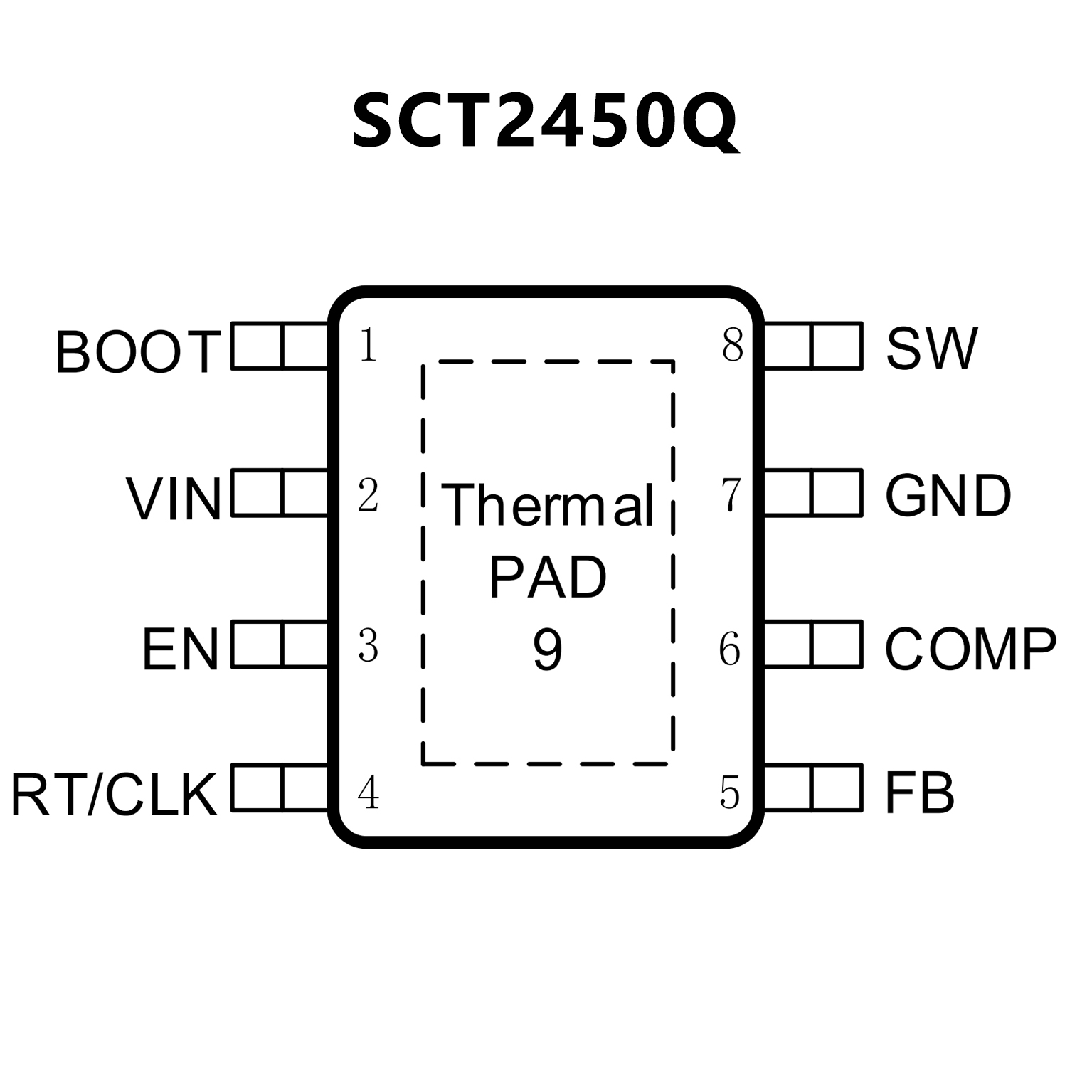

SCT2450Q.pdf? Qualified for Automotive Applications
? Available in an ESOP-8 Package
? Qualified for Automotive Applications
Device Temperature Grade 1: –40°C to
125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level H1C
Device CDM ESD Classification Level C3B
? High-Efficiency at Light Loads With Pulse-Skipping
Eco-mode?
? 92-mΩ High-Side MOSFET
? 146-μA Operating Quiescent Current and 2-?A
Shutdown Current
? 100-kHz to 2.5-MHz Adjustable Switching Frequency
? Synchronizes to External Clock
? Low Dropout at Light Loads With Integrated BOOT
Recharge FET
? Adjustable UVLO Voltage and Hysteresis
? 0.8-V 1% Internal Voltage Reference
? 8-Pin HSOP PowerPAD? Package
? –40°C to 150°C TJ Operating Range
? Supported by WEBENCH? Software Tool
