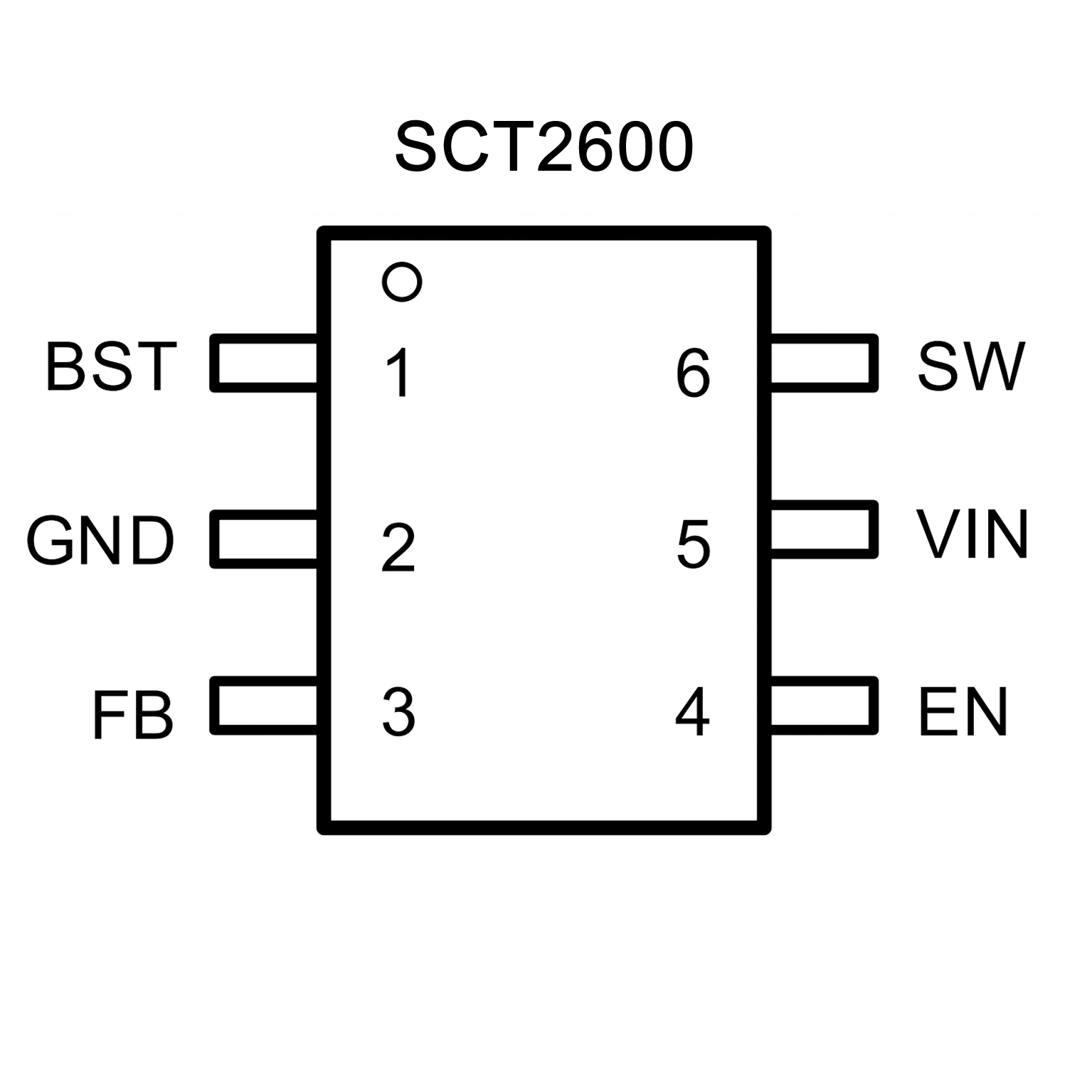

SCT2600.pdf?Wide Input Range: 4.5V-60V
?Continuous Output Current: 0.6A
?0.765V ±2.5% Feedback Reference Voltage
? Integrated 500m? High-Side
? Low Quiescent Current: 80uA · Pulse Skipping Mode (PSM) in light load
? 80ns Minimum On-time
? 6ms Internal Soft-start Time
? Internal compensation
? Switching Frequency 2.1MHz
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection
? Available in an TSOT23-6L Package
? Ultra Low 28 ?A Standby Current in ECO Mode
? Input Voltage Range 4 V to 60 V
? 1 ?A Shutdown Current
? High Duty Cycle Operation Supported
? Output Current up to 600 mA
? 0.7 MHz and 2.1 MHz Switching Frequency
? Internal Compensation
? High Voltage Enable Input
? Internal Soft Start
? Over Current Protection
? Over Temperature Protection
? Small Overall Solution Size (SOT-6L Package)

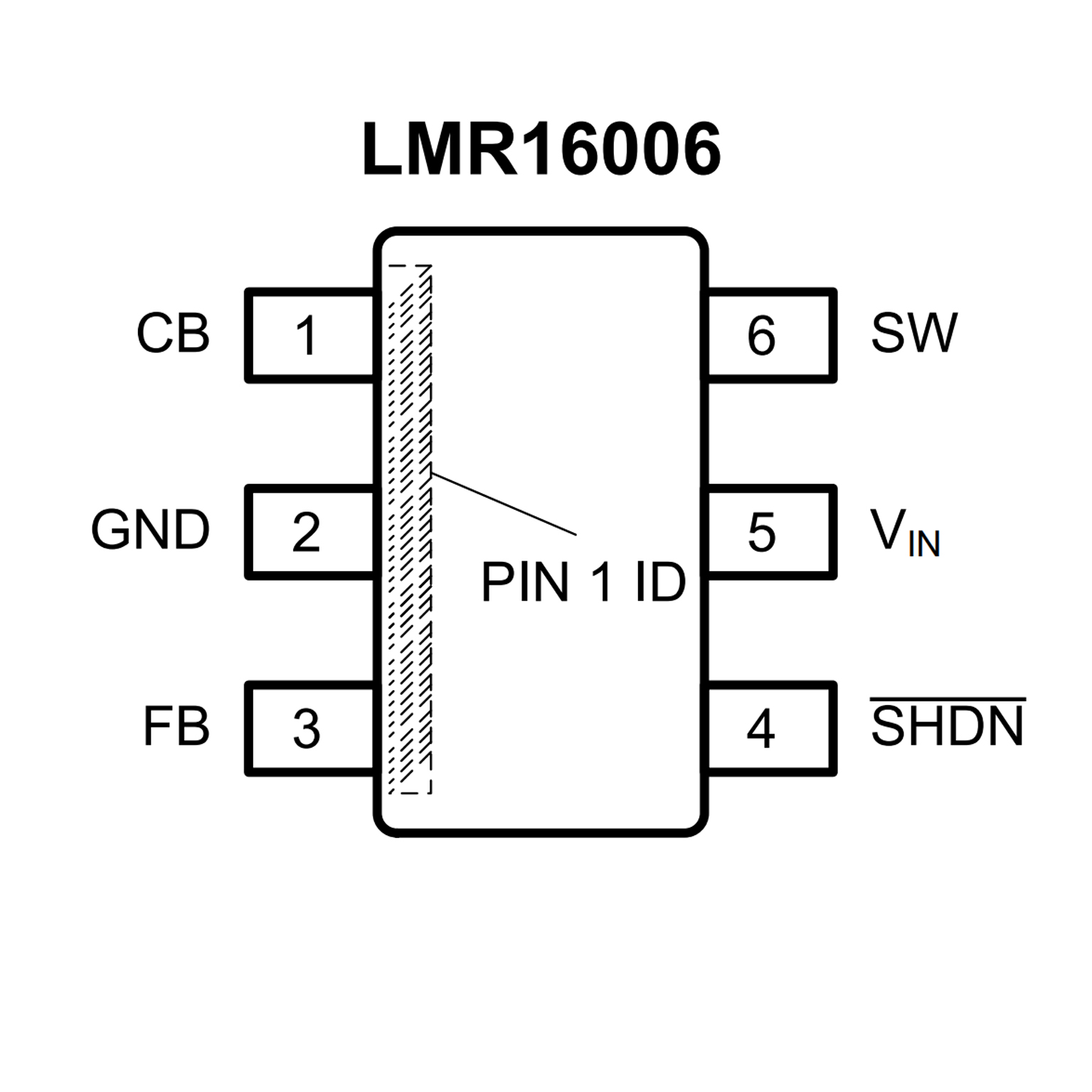

? Create a Custom Design Using the LMR16006
with the WEBENCH Power Designer
