60V Input, 3.5A, Step Down DC-DC Converter with Eco-mode?, SCT2630A Replace TPS54360B-Q1.
SCT2630A
SCT2630A.pdf
SCT2630A.pdfFEATURES
? Wide Input Range: 4.5V-60V
? Up to 3.5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 80m? High-Side
? Low Quiescent Current: 175?A
? Pulse Skipping Mode (PSM) in light load
? 130ns Minimum On-time
? 4ms Internal Soft-start Time
? Adjustable Frequency 100KHz to 1.2MHz
? External Clock Synchronization
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock
Out Protection (UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in an ESOP-8 Package
PIN CONFIGUTION
優勢替代
FEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to 125°C
Ambient Operating Temperature Range
– Device HBM ESD Classification Level H1C
– Device CDM ESD Classification Level C3B
? High Efficiency at Light Loads With Pulse Skipping
Eco-Mode?
? 92-mΩ High-Side MOSFET
? 146-μA Operating Quiescent Current and 2 ?A
Shutdown Current
? 100-kHz to 2.5-MHz Adjustable Switching
Frequency
? Synchronizes to External Clock
? Low Dropout at Light Loads With Integrated
BOOT Recharge FET
? Adjustable UVLO Voltage and Hysteresis
? 0.8-V 1% Internal Voltage Reference
? 8-Pin HSOP With PowerPAD? Package
? –40°C to 150°C TJ Operating Range

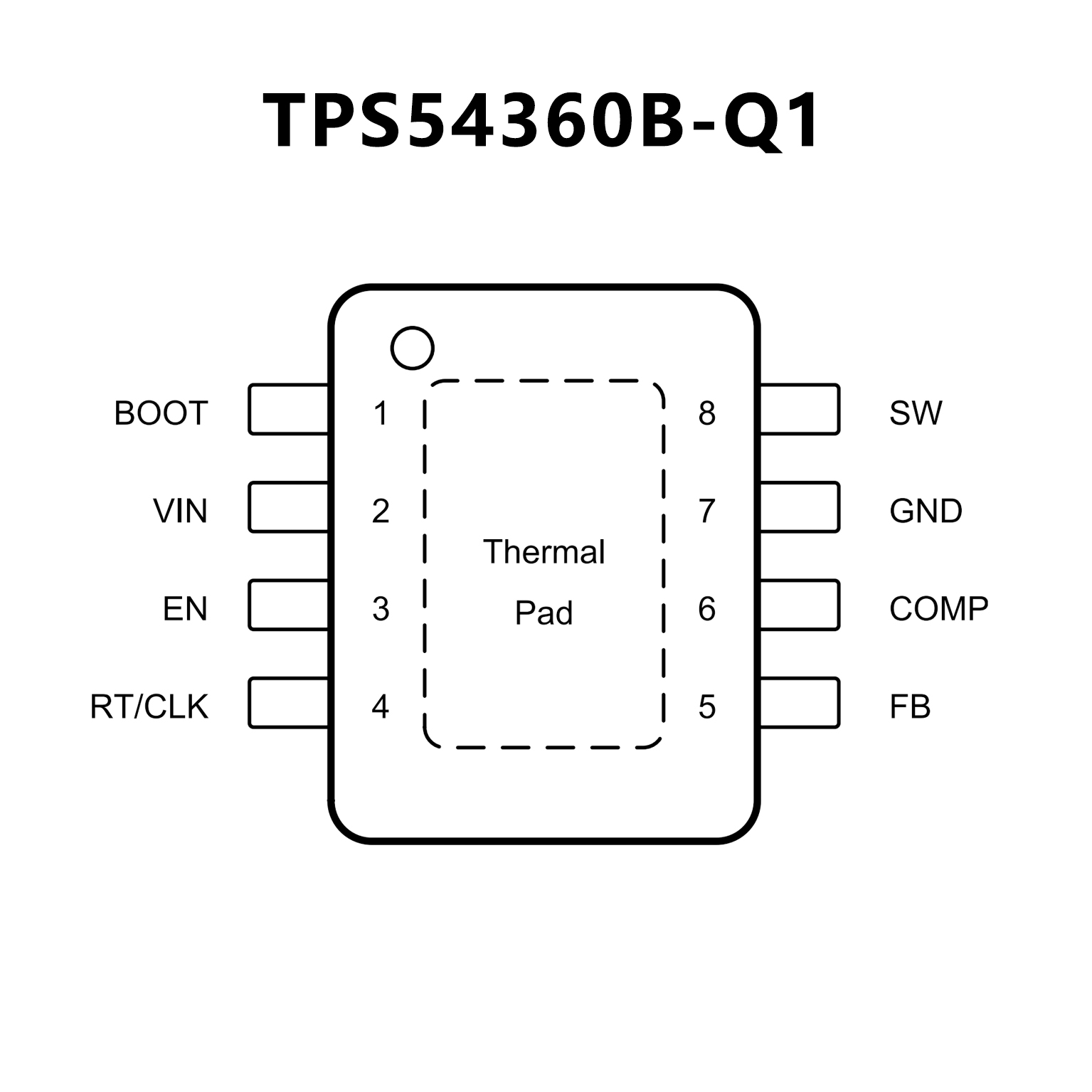

PIN CONFIGUTION
