SCT2630A.pdf? Wide Input Range: 4.5V-60V
? Up to 3.5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 80m? High-Side
? Low Quiescent Current: 175?A
? Pulse Skipping Mode (PSM) in light load
? 130ns Minimum On-time
? 4ms Internal Soft-start Time
? Adjustable Frequency 100KHz to 1.2MHz
? External Clock Synchronization
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock
Out Protection (UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection

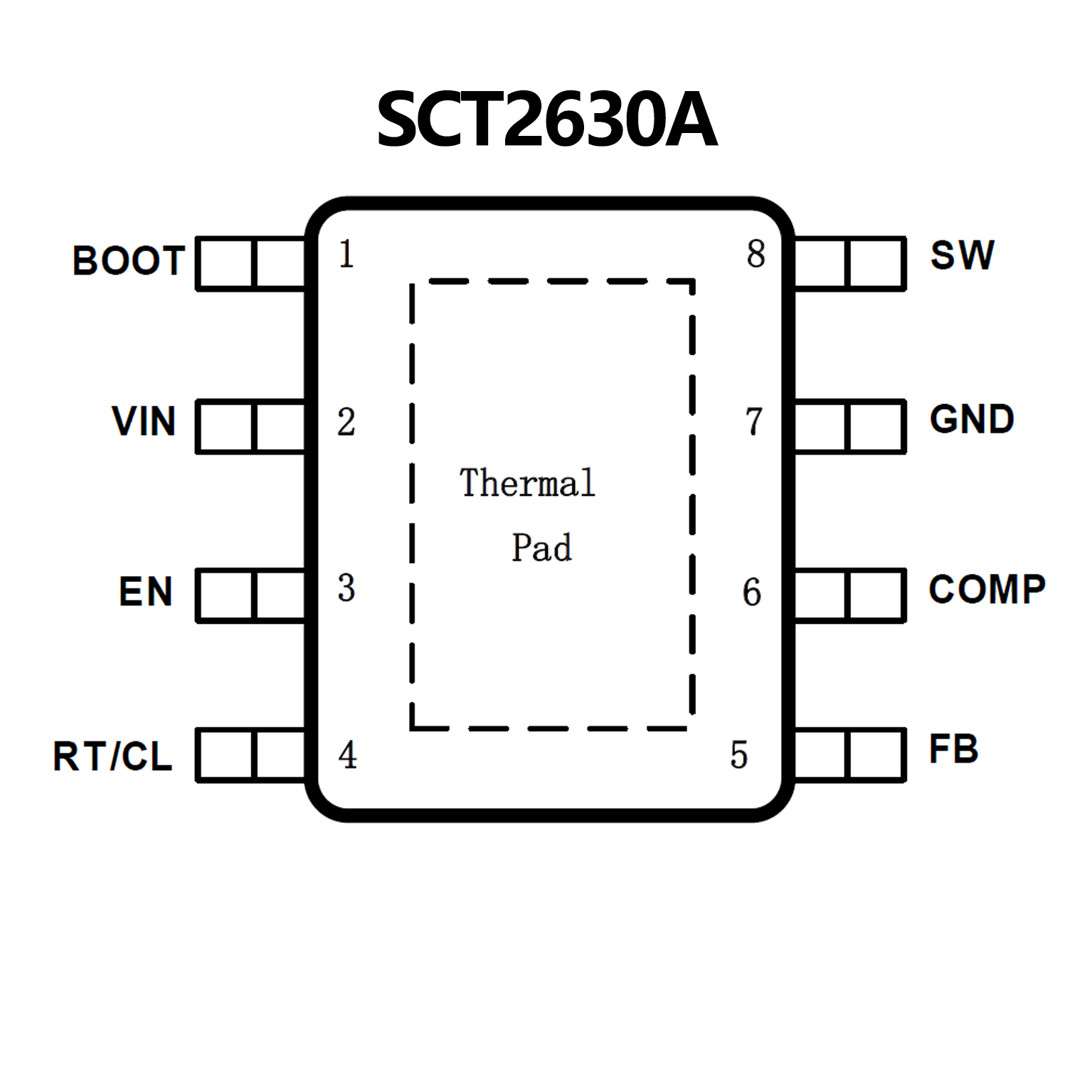

? Available in an ESOP-8 Package
? High Efficiency at Light Loads with Pulse Skipping
Eco-mode?
? 87-mΩ High-Side MOSFET
? 152-μA Operating Quiescent Current and 2μA
Shutdown Current
? 100-kHz to 2.5-MHz Adjustable Switching Frequency
? Synchronizes to External Clock
? Low Dropout at Light Loads with Integrated BOOT
Recharge FET
? Adjustable UVLO Voltage and Hysteresis
? UV and OV Power Good Output
? Adjustable Soft-Start and Sequencing
? 0.8-V 1% Internal Voltage Reference

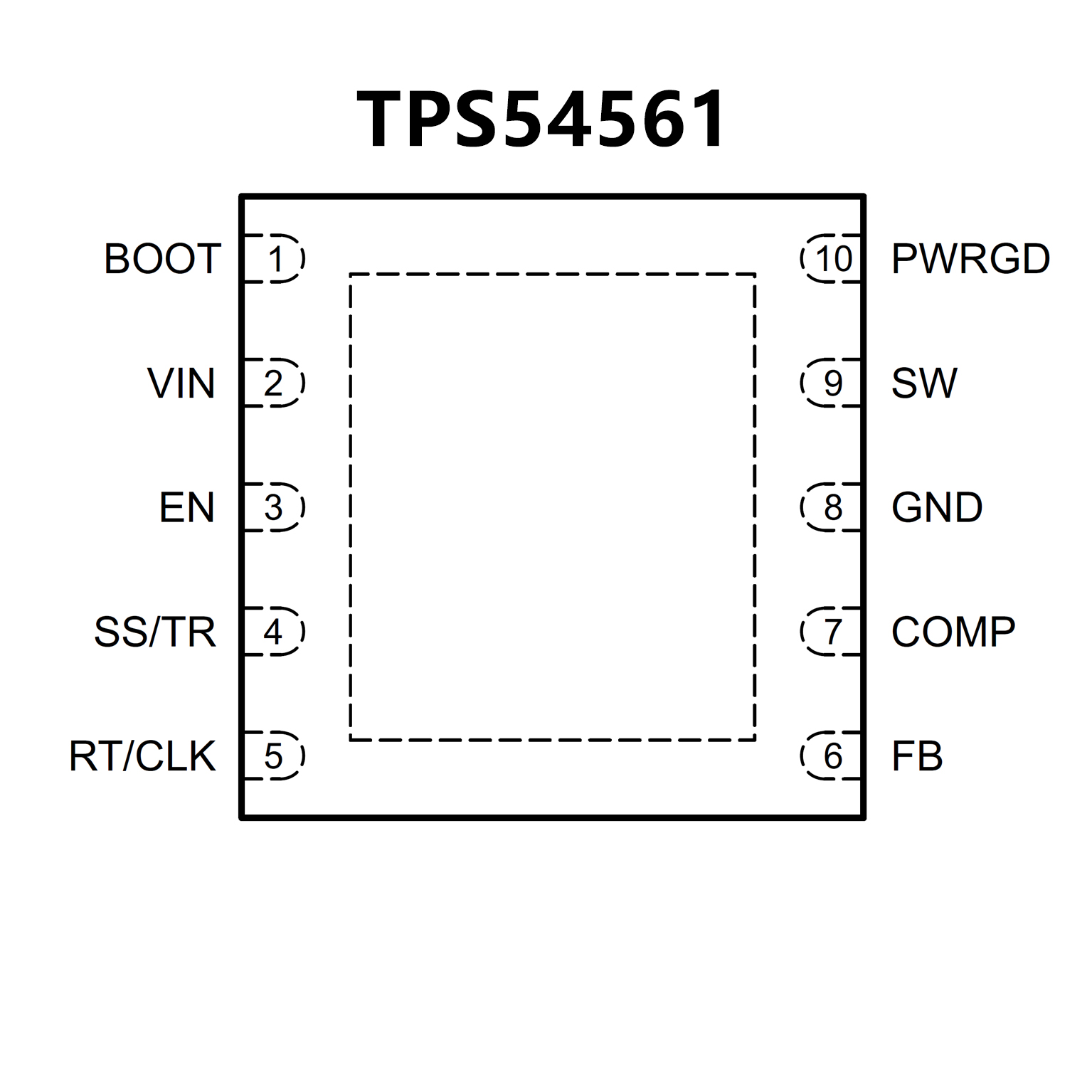

? 10-Pin SON with Thermal Pad Package
? –40°C to 150°C TJ Operating Range
? Supported by WEBENCH? Software Tool
