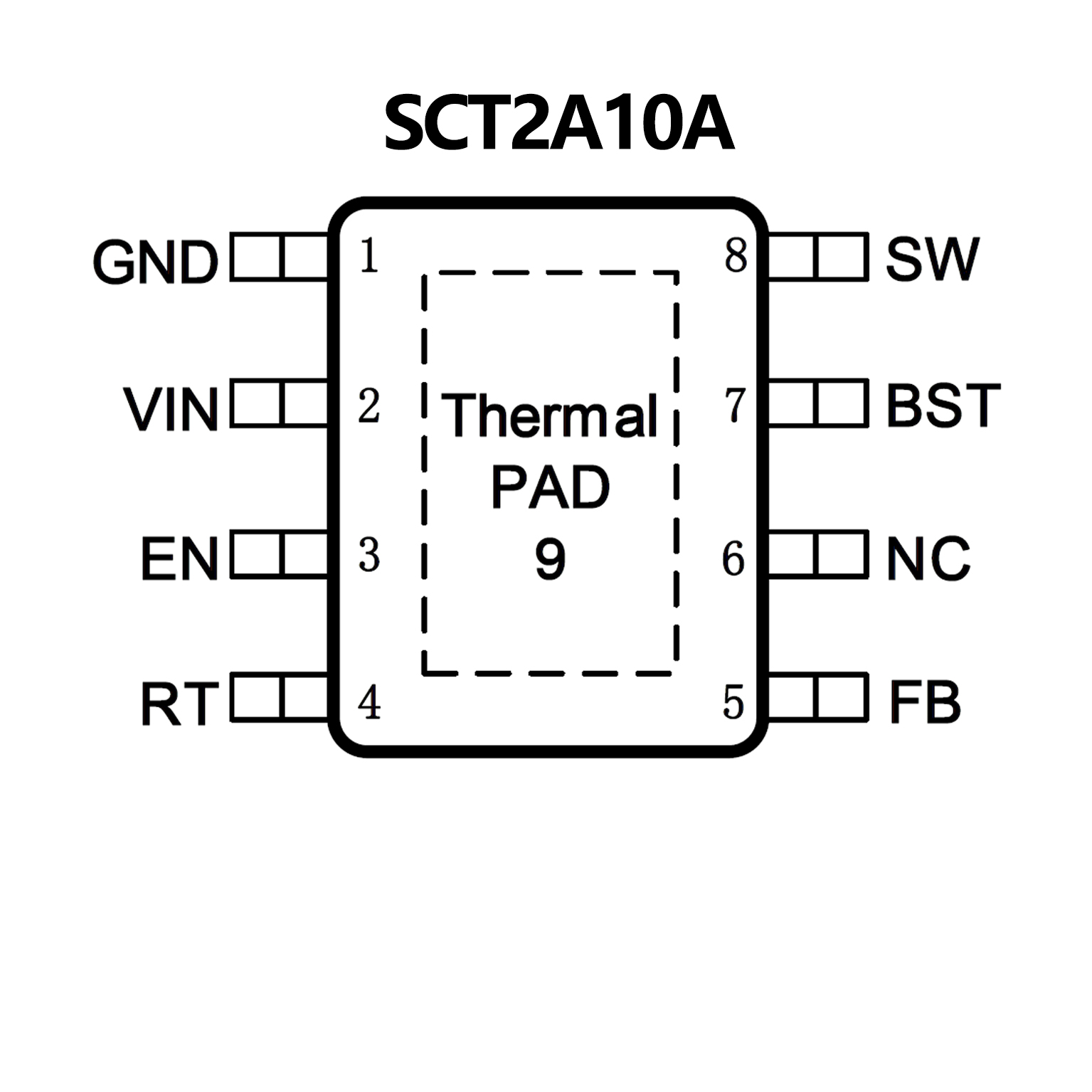

SCT2A10A.pdf? Wide Input Range: 4.5V-100V
? 0.6A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 770mΩ High-Side and 460mΩ Low-
Side Power MOSFETs
? Pulse Frequency Modulation (PFM) with 100uA
Quiescent Current in Sleep Mode
? 4ms Internal Soft-start Time
? Adjustable Frequency 300KHz to 800KHz
? Precision Enable Threshold for Programmable
Input Voltage Under-voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Cycle-by-Cycle Current Limiting
? Over-Voltage Protection
? Over-Temperature Protection
? Available in an ESOP-8 Package

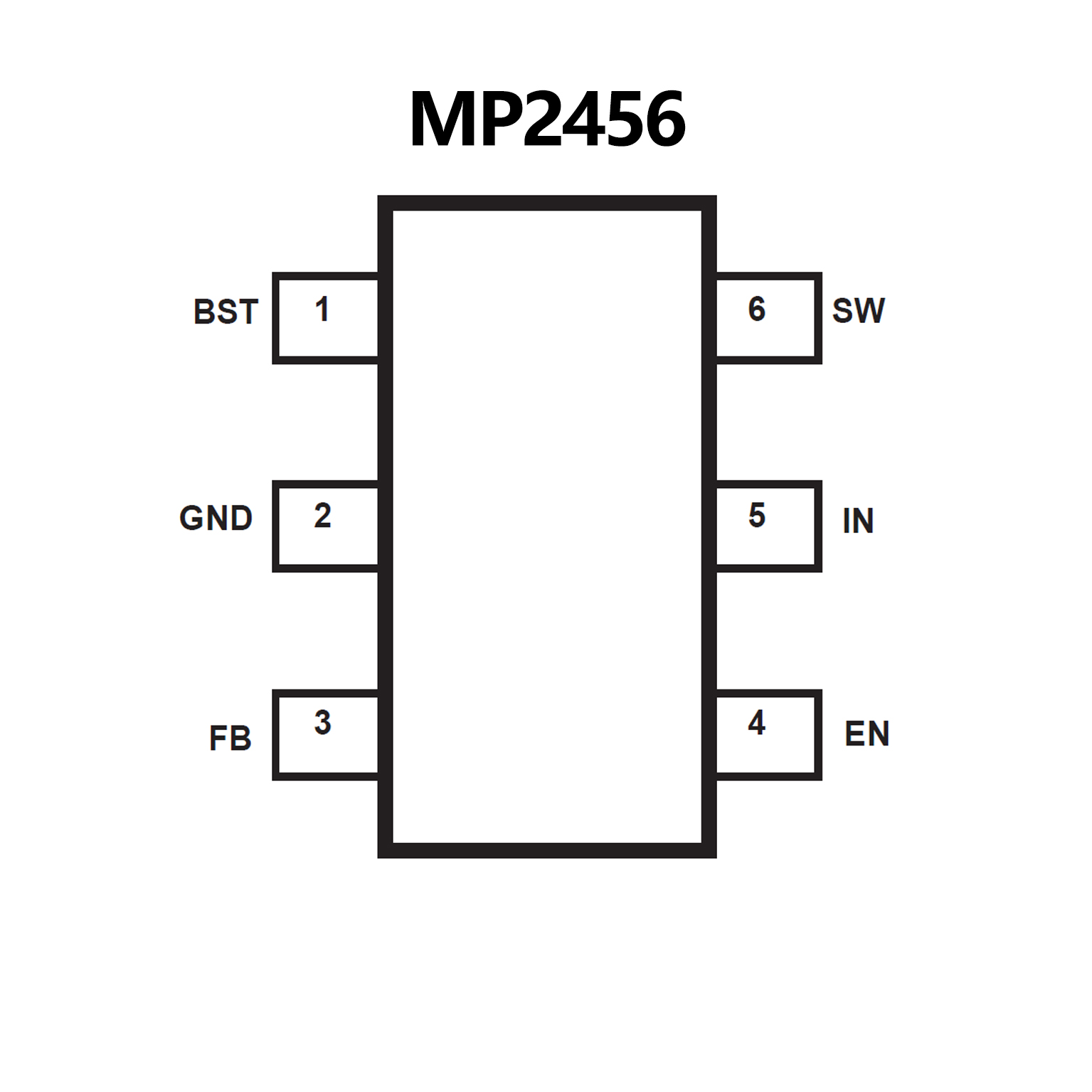

? 0.5A Peak Output Current
? 1Ω Internal Power MOSFET
? Capable to Start Up with Big Output
Capacitor
? Stable with Low-ESR Ceramic Output
Capacitors
? Up to 90% Efficiency
? 0.1μA Shutdown Mode
? Fixed 1.2MHz Frequency
? Thermal Shutdown
? Cycle-by-Cycle Over-Current Protection
? Wide 4.5V-to-50V Operating Input Range
? Output Adjustable from 0.81V to 0.9xVIN
? Available in a TSOT23-6 Package
