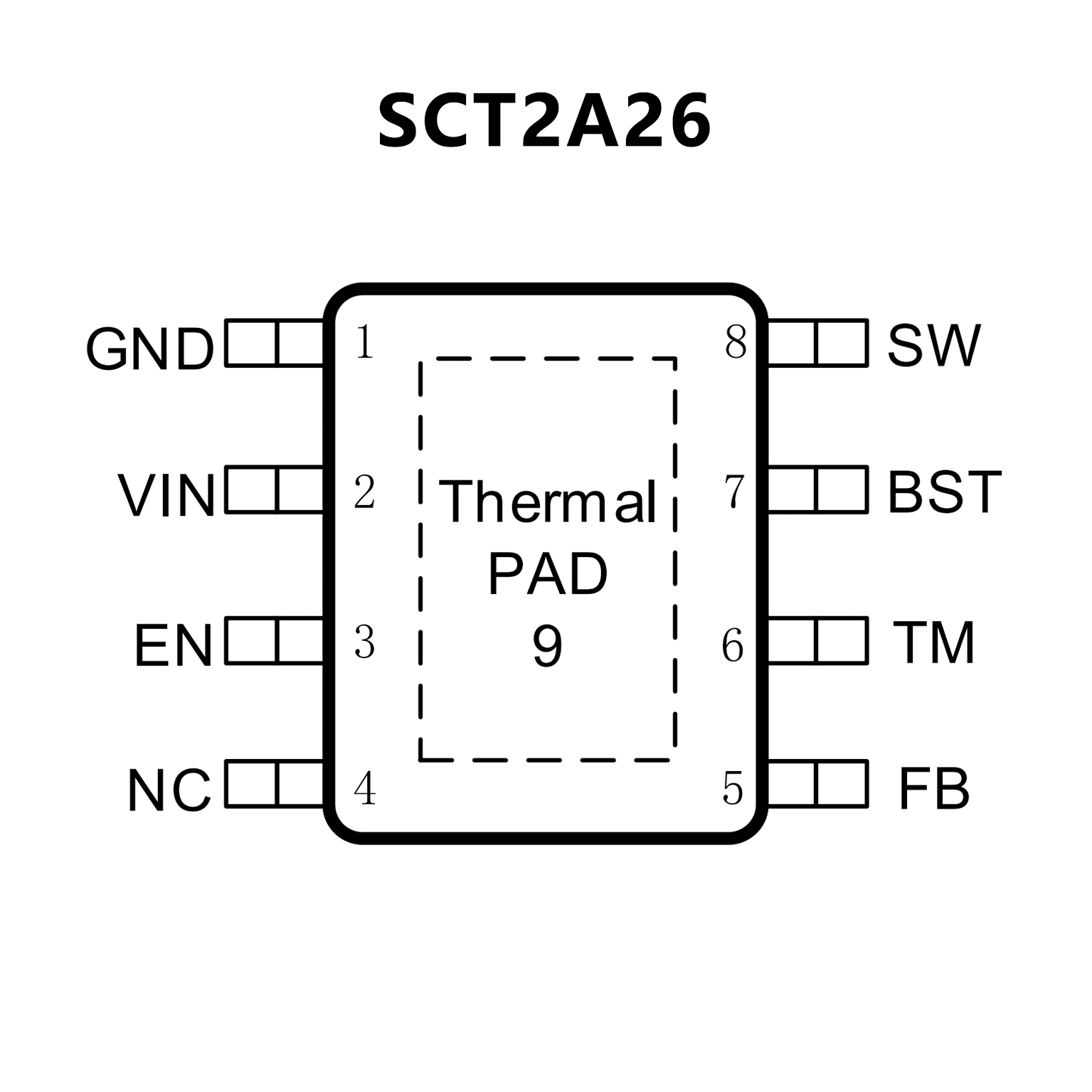

SCT2A26.pdf? Wide Input Range: 5.5V-100V

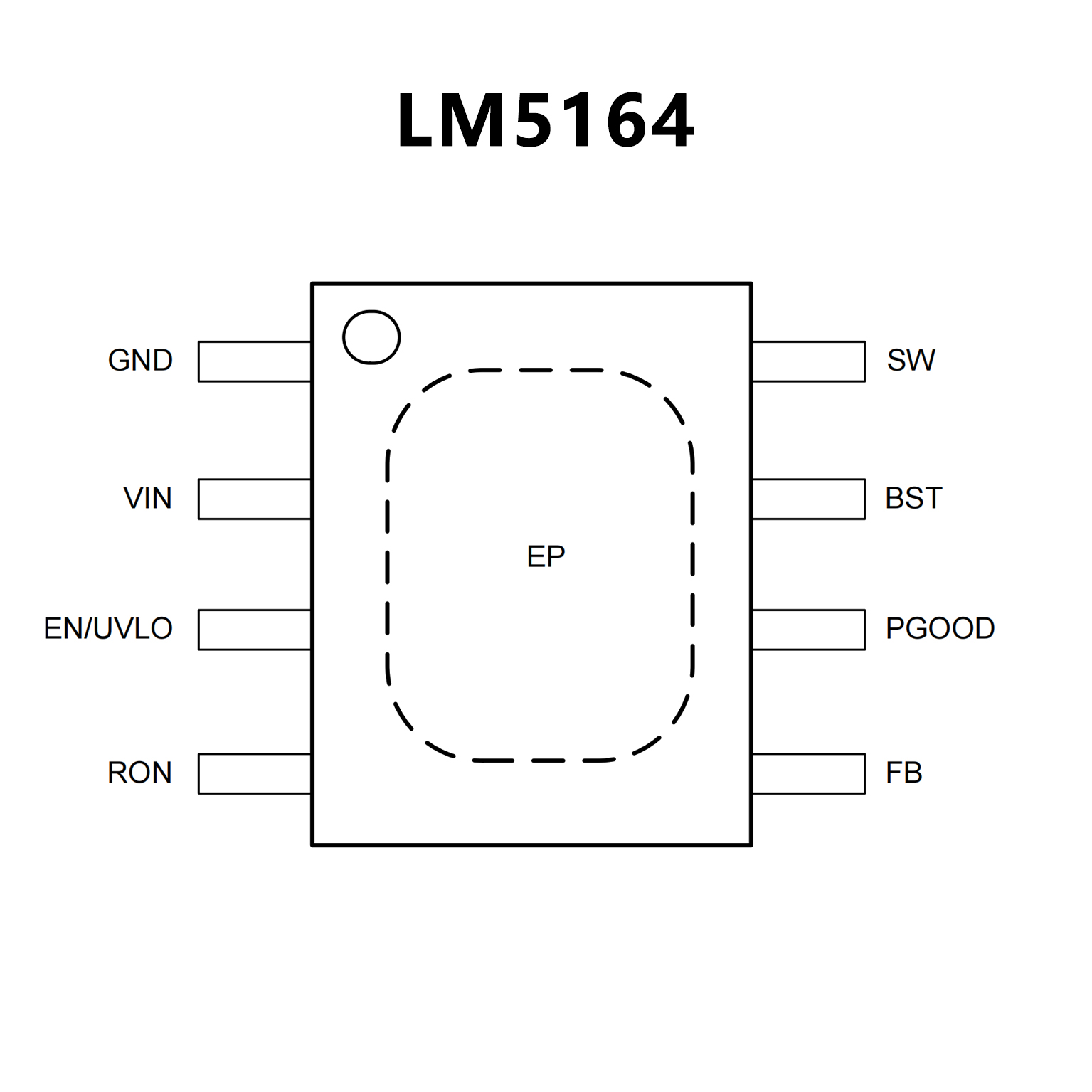

? Available in an ESOP-8 Package
? Designed for Reliable and Rugged Applications
– Wide Input Voltage Range of 6 V to 100 V
– Junction Temperature Range: –40°C to 150°C
– Fixed 3-ms Internal Soft-Start Timer
– Peak and Valley Current Limit Protection
– Input UVLO and Thermal Shutdown Protection
? Suited for Scalable Industrial Power Supplies and
Battery Packs
– Low Minimum On- and Off-Times of 50 ns
– Adjustable Switching Frequency up to 1 MHz
– Diode Emulation for High Light-Load Efficiency
– 10-?A No-Load Input Quiescent Current
– 3-?A Shutdown Quiescent Current
– Optimized for CISPR 32 EMI Standard
? Integration Reduces Solution Size and Cost
– COT Mode Control Architecture
– Integrated 0.7-Ω NFET Buck Switch Supports
Wide Duty-Cycle Range
– Integrated 0.3-Ω NFET Synchronous Rectifier
Eliminates External Schottky Diode
– 1.2-V ±1% Internal Voltage Reference
– No Loop Compensation Components
– Internal VCC Bias Regulator and Boot Diode
– Open-Drain Power Good Indicator
– 8-Pin SOIC Package With PowerPAD
? Create a Custom Design Using WEBENCH
Power Designer
