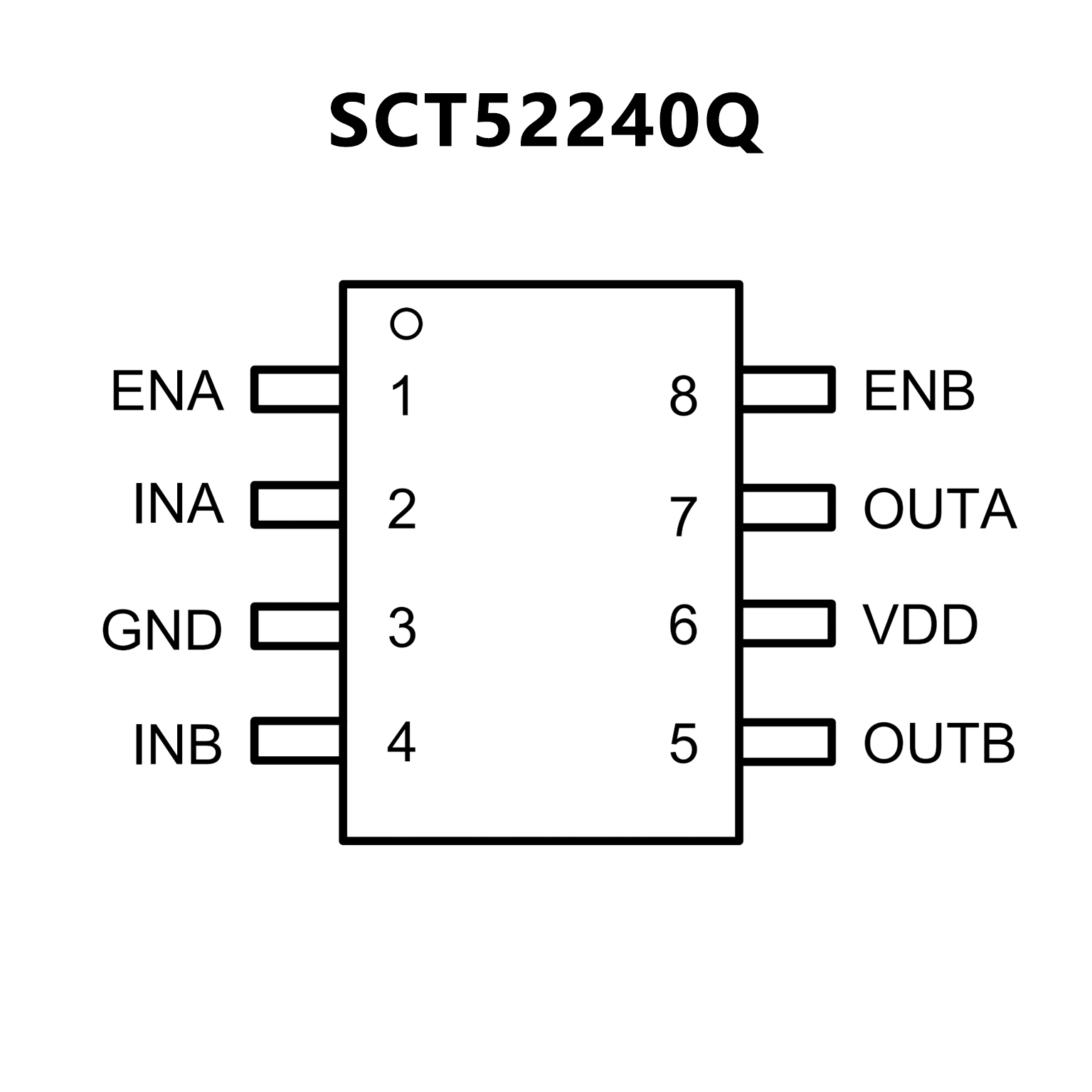

SCT52240Q.pdf? Qualified for Automotive Applications
? Available in SOP-8 Package
? Industry?Standard Pinouts
? 4.5 V to 18 V Operating Range
? 5 A Peak Sink/Source at VDD = 12 V
? 4.3 A Sink / 2.8 A Source at VOUT = 6 V
? Choice of TTL or CMOS Input Thresholds
? Three Versions of Dual Independent Drivers:
Dual Inverting + Enable (FAN3223)
Dual Non?Inverting + Enable (FAN3224)
Dual?Inputs (FAN3225)
? Internal Resistors Turn Driver Off If No Inputs
? MillerDrive Technology
? 12 ns / 9 ns Typical Rise/Fall Times (2.2 nF Load)
? Under 20 ns Typical Propagation Delay Matched
within 1 ns to the Other Channel
? Double Current Capability by Paralleling Channels
? 8?Lead SOIC and 8?Lead SOIC Exposed Pad Package
? Rated from –40°C to +125°C Ambient
? Automotive Qualified to AEC-Q100
? These are Pb?Free Devices
