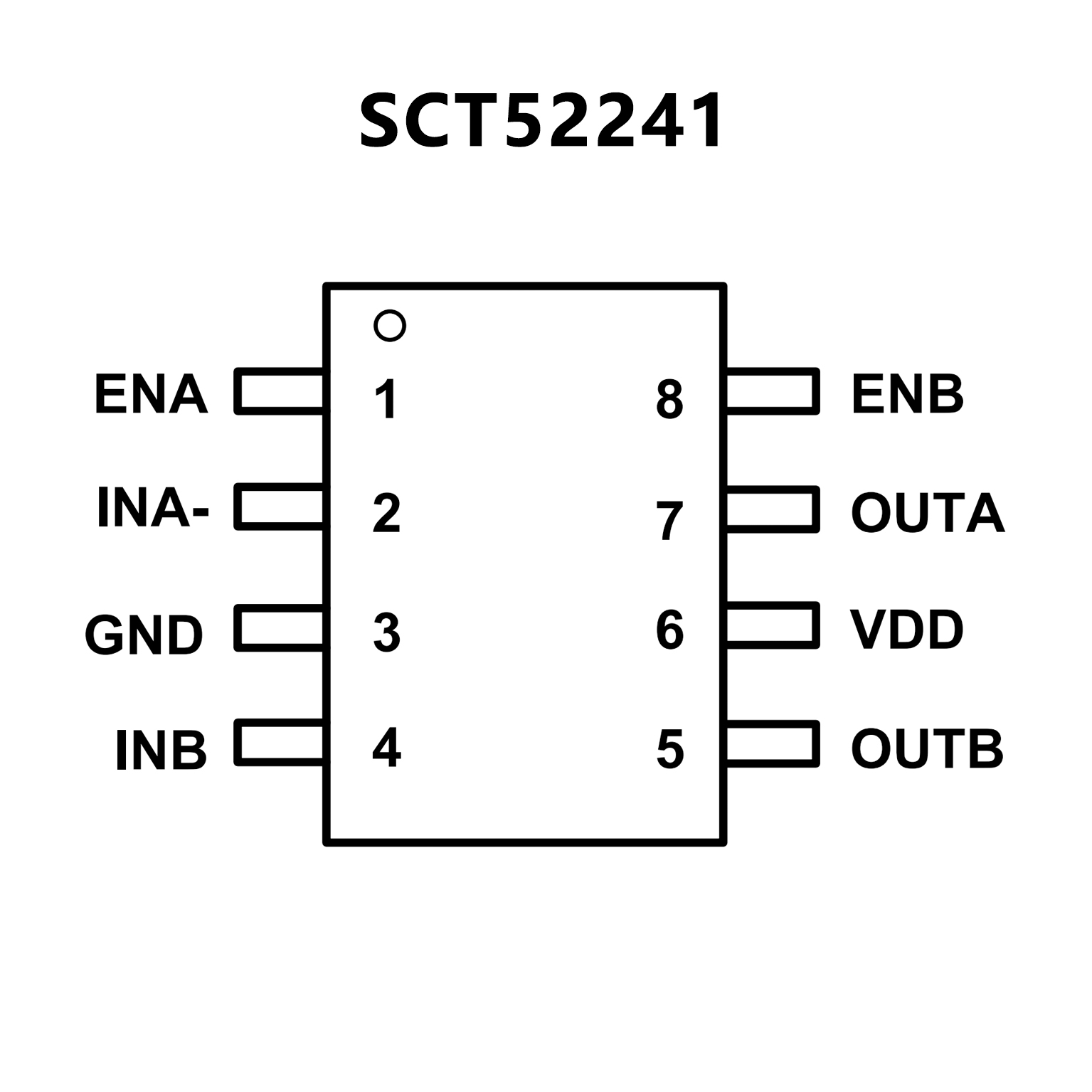

SCT52241.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink Current
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Low Quiescent Current: 55uA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package
? High Peak Output Current:1.5A
? Wide Operating Range: 4.5V to 18V
? High Capacitive Load
Drive Capability: 1000 pF in 25 nsec
? Short Delay Time: <40nsec Typ
? Consistent Delay Times With Changes in
Supply Voltage
? Low Supply Current
With Logic “1” Input : 4mA
With Logic “0” Input : 400?A
? Low Output Impedance: 7?
? Latch-Up Protected: Will Withstand >0.5A
Reverse Current: Down to – 5V
? Input Will Withstand Negative Inputs
? ESD Protected: 4kV

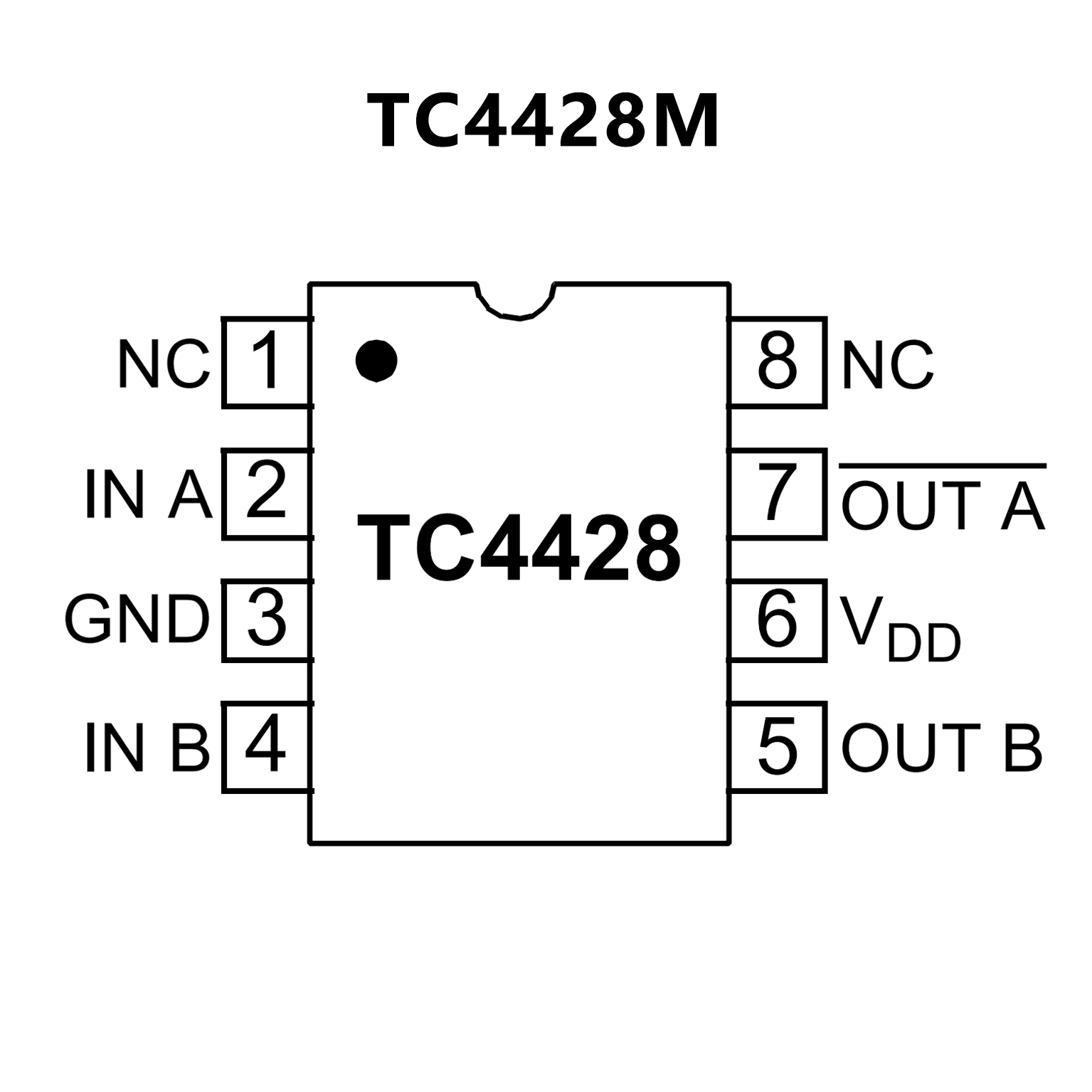

? Pinout Same as TC426/TC427/TC428
