SCT52A40.pdf? Wide supply rail from 8V-24V
? Drives Both High-side and Low-side N-Channel MOSFET
? 4A Peak Output Source and Sink Current
? Bootstrap Supply Voltage Range up to 120V
? Integrated Bootstrap Diode
? TTL Compatible Input, -10V Input Capability
? Quiescent Current 252uA
? 45ns Propagation Delay Times
? 2ns Delay Matching
? 7ns Rise and 4.5ns Fall Time with 1000pF Load
? 15ns Input Deglitching Time
? 40ns Minimum Pulse Width
? Supply Rail Under-Voltage Lockout (UVLO)
? Operation from -40°C~150?C

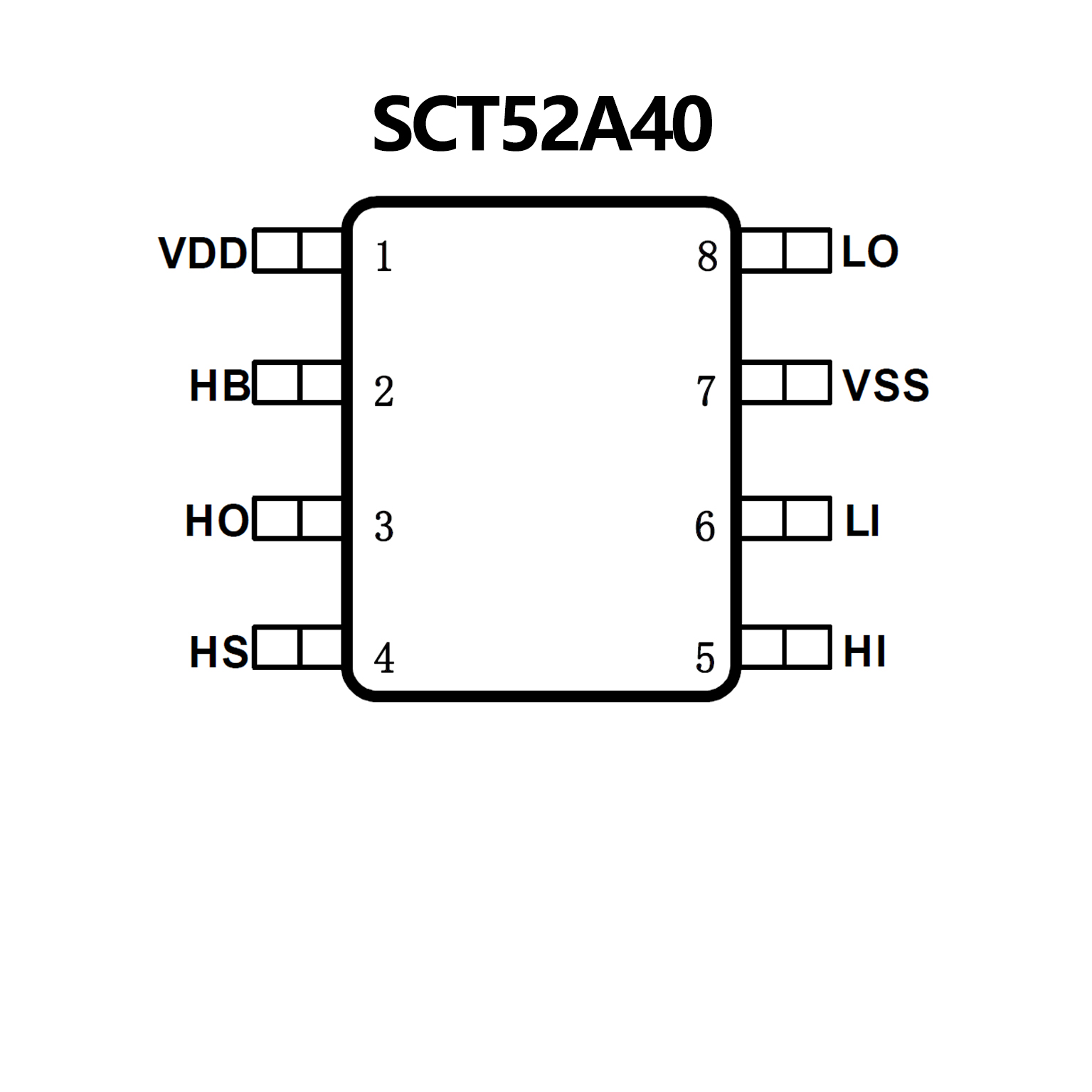

? Available in SOP-8L, ESOP-8L, DFN-9L 3mm x 3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x 4mm Package
? Drives N-Channel MOSFET Half Bridge

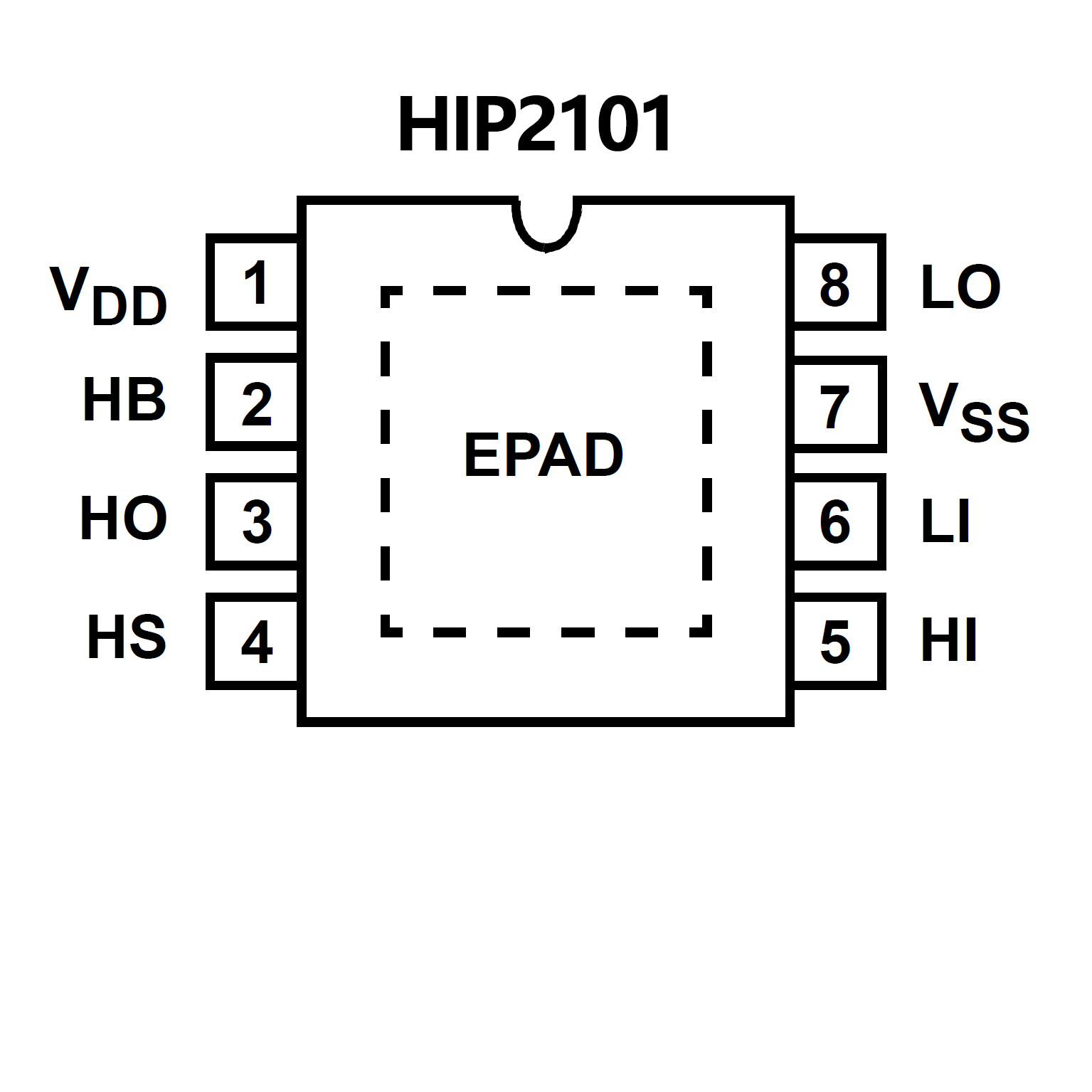

? SOIC, EPSOIC, QFN and DFN Package Options
? SOIC, EPSOIC and DFN Packages Compliant with 100V
Conductor Spacing Guidelines of IPC-2221
? Pb-free Product Available (RoHS Compliant)
? Bootstrap Supply Max Voltage to 114VDC
? On-Chip 1Ω Bootstrap Diode
? Fast Propagation Times for Multi-MHz Circuits
? Drives 1000pF Load with Rise and Fall Times Typ. 10ns
? TTL/CMOS Input Thresholds Increase Flexibility
? Independent Inputs for Non-Half Bridge Topologies
? No Start-Up Problems
? Outputs Unaffected by Supply Glitches, HS Ringing Below
Ground, or HS Slewing at High dv/dt
? Low Power Consumption
? Wide Supply Range
? Supply Undervoltage Protection
? 3Ω Output Driver Resistance
? QFN/DFN Package:
Compliant to JEDEC PUB95 MO-220
QFN - Quad Flat No Leads - Package Outline
Near Chip Scale Package footprint, which improves
PCB efficiency and has a thinner profile
