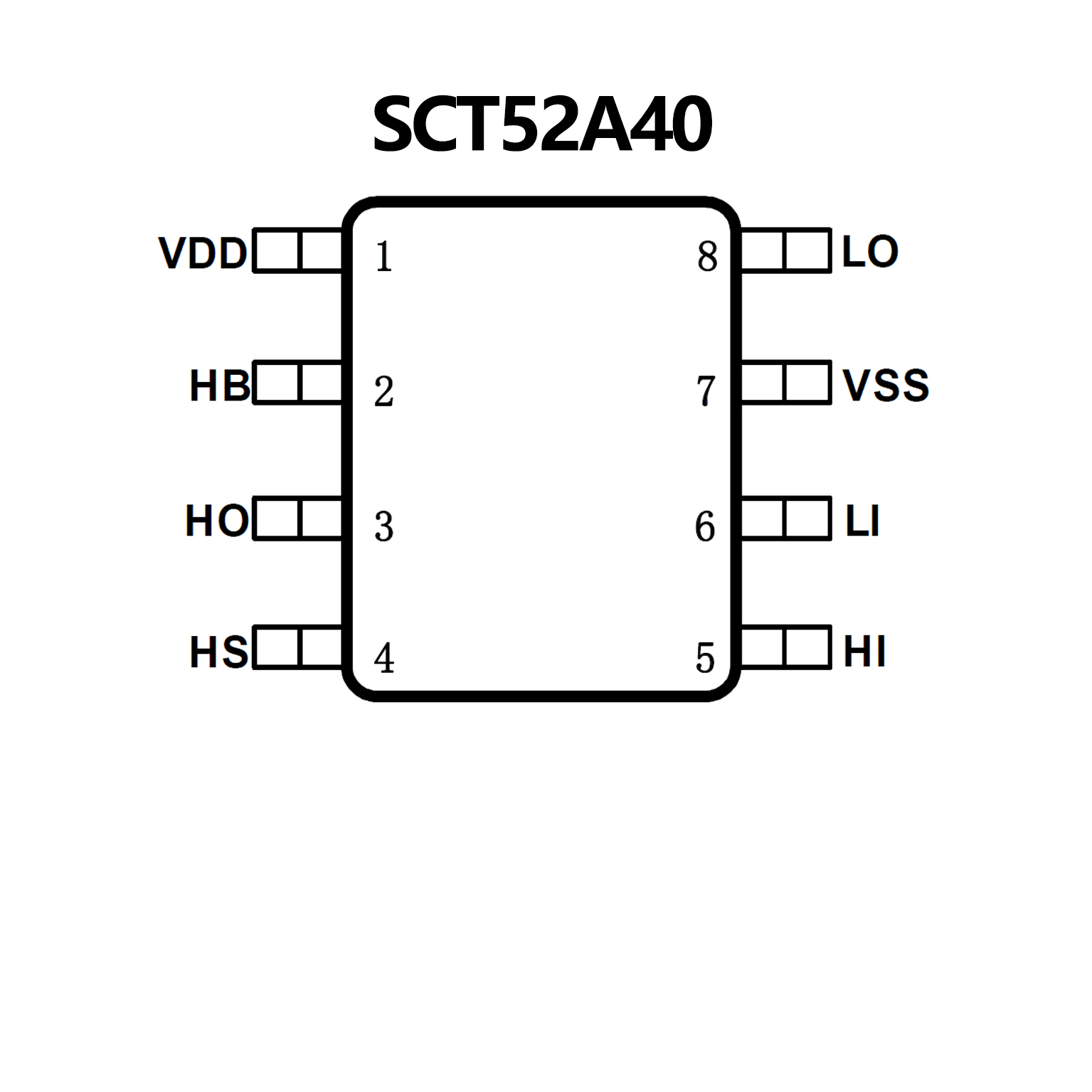

SCT52A40.pdf? Wide supply rail from 8V-24V
? Drives Both High-side and Low-side N-Channel MOSFET
? 4A Peak Output Source and Sink Current
? Bootstrap Supply Voltage Range up to 120V
? Integrated Bootstrap Diode
? TTL Compatible Input, -10V Input Capability
? Quiescent Current 252uA
? 45ns Propagation Delay Times
? 2ns Delay Matching
? 7ns Rise and 4.5ns Fall Time with 1000pF Load
? 15ns Input Deglitching Time
? 40ns Minimum Pulse Width
? Supply Rail Under-Voltage Lockout (UVLO)
? Operation from -40°C~150?C
? Available in SOP-8L, ESOP-8L, DFN-9L 3mm x 3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x 4mm Package

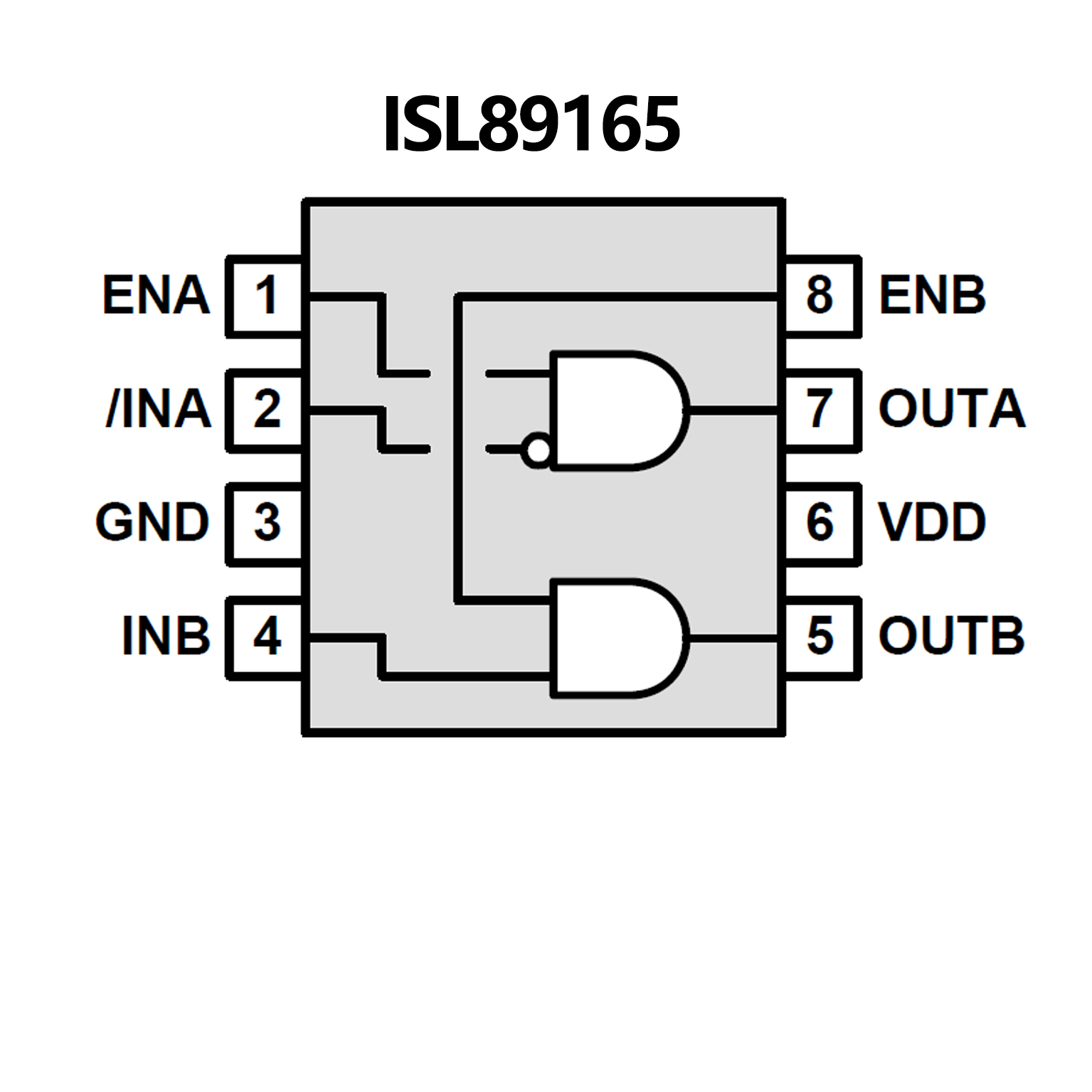

? Dual output, 6A peak currents, can be paralleled
? Dual AND-ed input logic, (input and enable)
? Typical ON-resistance <1Ω
? Specified Miller plateau drive currents
? Very low thermal impedance (θJC = 3°C/W)
? Hysteretic Input logic levels for 3.3V CMOS,
5V CMOS, TTL, and Logic levels proportional to VDD
? Precision threshold inputs for time delays
with external RC components
? 20ns rise and fall time driving a 10nF load.
