1.7V-6V Vin, 500mA, 8uA IQ, Low-Dropout Regulator, SCT71005 Replace ET53318.
SCT71005
SCT71005.pdf
SCT71005.pdfFEATURES
? Wide Input Range: 1.7V-6V (2.2V-6V for SCT71005A01)
? Maximum Output Current: 500mA
? Output Voltage:
- 1.2V,1.8V and 3.3V (Fixed Output)
- 0.7V~5V (Adjustable Output Version SCT71005A01)
- 0.5V~5V (Adjustable Output Version SCT71005A02)
? Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
? Low Quiescent Current: 8uA
? Ultra-Low Shutdown Current: 0.02uA
? Low Dropout Voltage(Adjustable Output Version) ：
- 54mV at 200mA load current
- 143mV at 500mA load current
? Support Output Capacitors Range:
- 2.2uF~220uF
- Low-ESR: 0.001Ω~ 5 Ω
? 1.4ms Internal Soft-start Time(VREF =500mV)
? 2.05ms Internal Soft-start Time(VREF =700mV)
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Enable pin is available
? Over-Temperature Protection
? Power-Good Feature is available
? Active Output Discharge
? Available Package:
SOT23-5/ TDFN2x2-6/ TDFN2x3-8/ DFN1x1-4

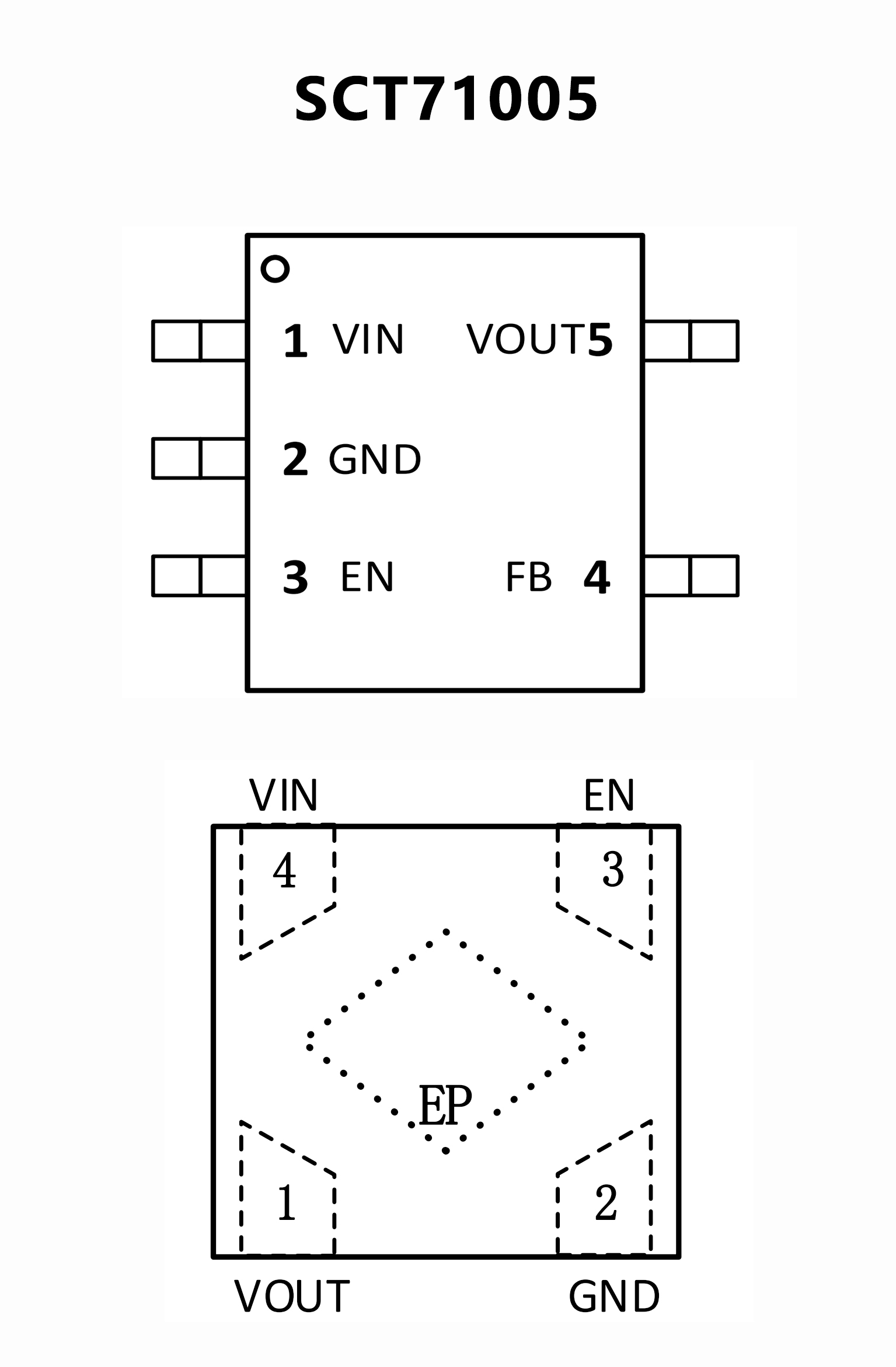

PIN CONFIGUTION
優勢替代
FEATURES
? Wide Input Voltage Range from 2.0V to 6.0V
? Up to 300mA Load Current
? Standard Fixed Output Voltage Options:1.2V,
1.8V, 2.5V, 2.8V, 3.0V and 3.3V etc
? Very Low IQ is 42?A typical
? Low Dropout is typical 240mV@2.8V at 300mA Load
? Very Low Noise is 45uVrms at 1.2V output
? Ultra-Fast Start-Up Time is 25?s typical
? Excellent Load/Line Transient Response
? Part No. and Package

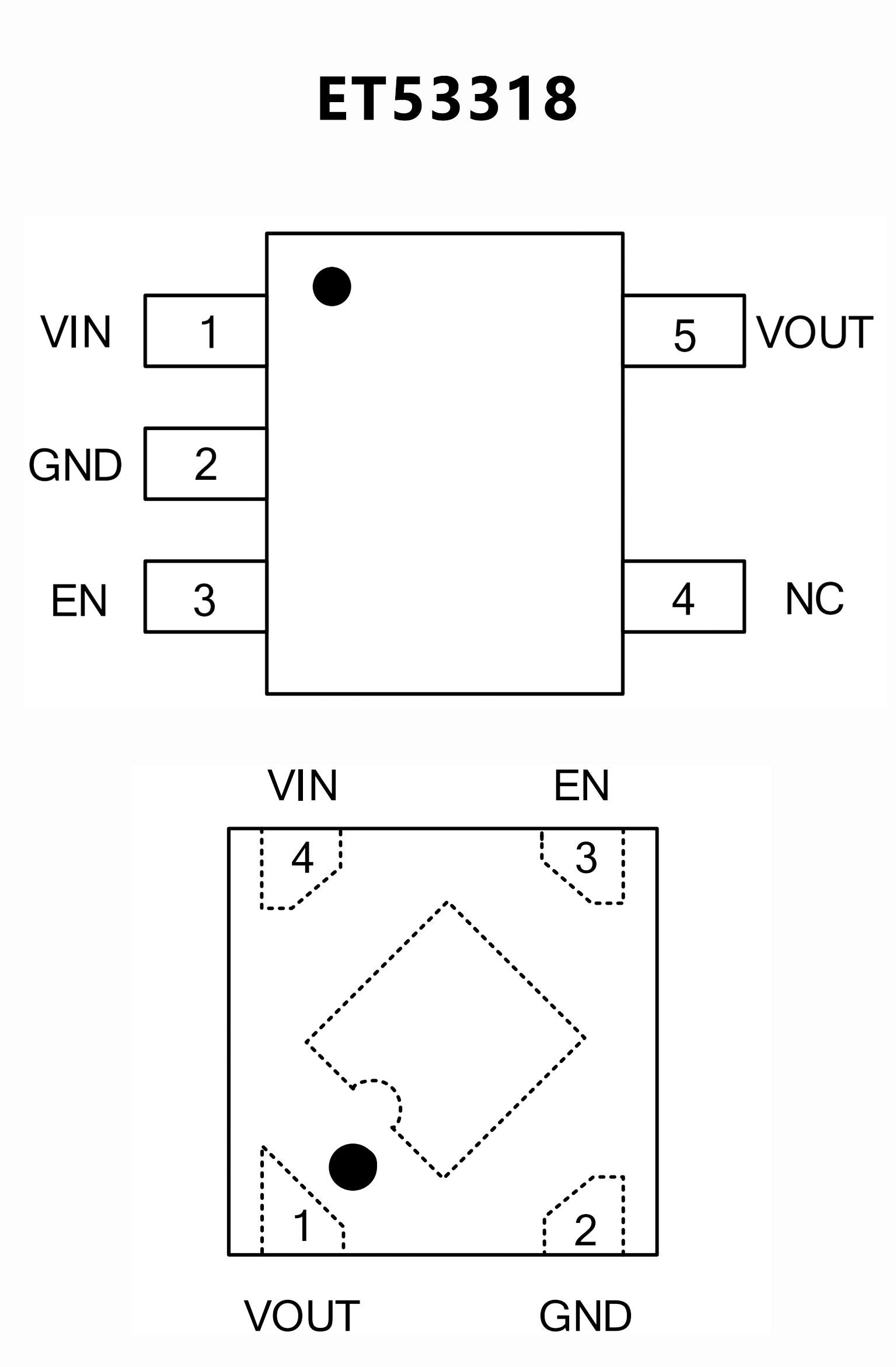

PIN CONFIGUTION
