1.7V-6V Vin, 500mA, 8uA IQ, Low-Dropout Regulator, SCT71005A01Q Replace TLV70025-Q1.
SCT71005A01Q
SCT71005A01Q.pdf
SCT71005A01Q.pdfFEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
? Wide Input Range: 1.7V-6V
(2.2V-6V for SCT71005A01Q)
? Maximum Output Current: 500mA
? Output Voltage:
- 1.2V,1.8V and 3.3V (Fixed Output)
- 0.7V~5V (Adjustable Output Version
SCT71005A01Q)
- 0.5V~5V (Adjustable Output Version
SCT71005A02Q)
? Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
? Low Quiescent Current: 8uA
? Ultra-Low Shutdown Current: 0.02uA
? Low Dropout Voltage(Adjustable Output Version) ：
- 54mV at 200mA load current
- 143mV at 500mA load current
? Support Output Capacitors Range:
- 2.2uF~220uF
- Low-ESR: 0.001Ω~ 5 Ω
? 1.4ms Internal Soft-start Time(VREF =500mV)
? 2.05ms Internal Soft-start Time(VREF =700mV)
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Over-Temperature Protection
? Power-Good Feature is available
? Active Output Discharge
? Available Package: SOT23-5/ TDFN2x2-6/
TDFN2x3-8

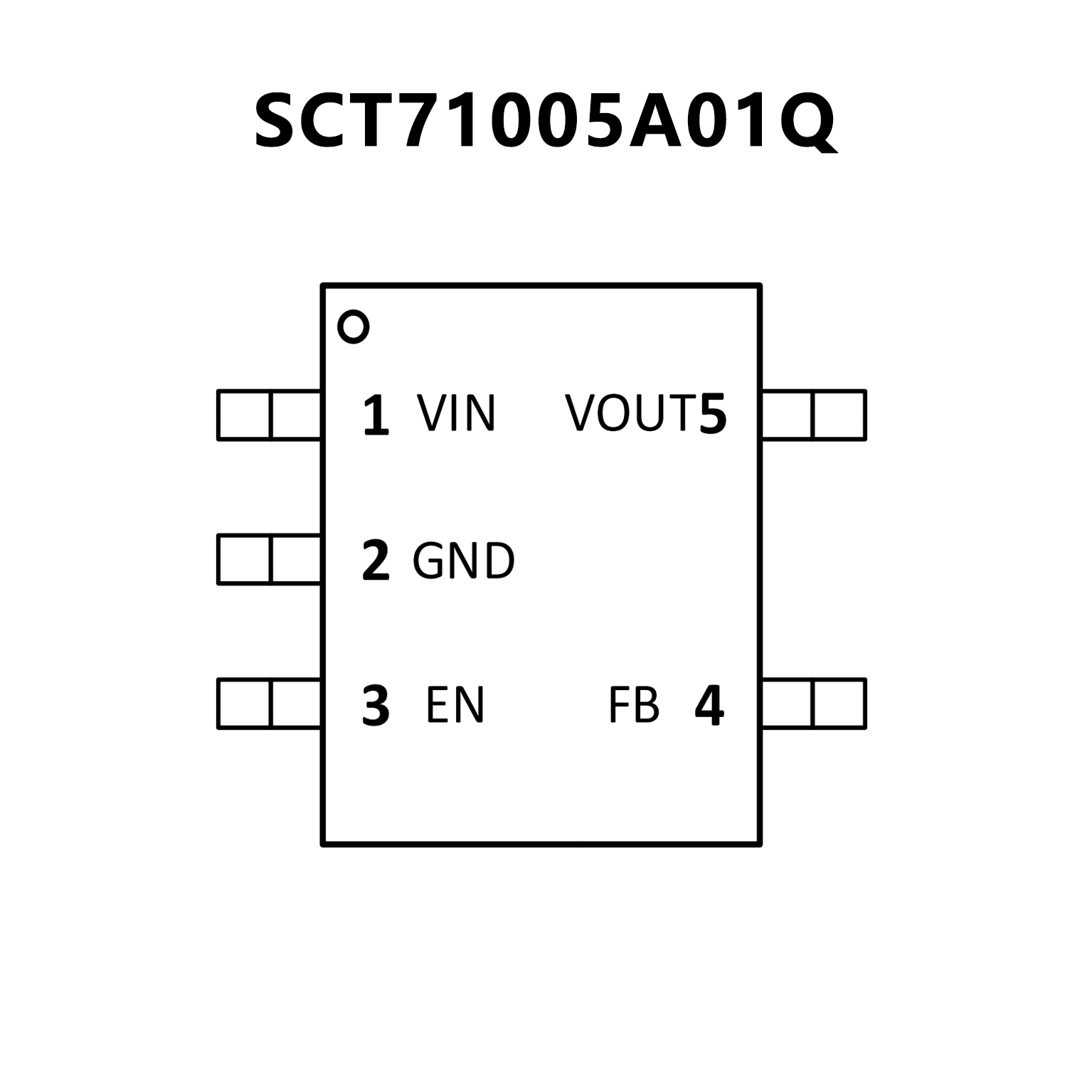

PIN CONFIGUTION
優勢替代
FEATURES
? AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to 125°C, TA
– Device HBM ESD classification level H2
– Device CDM ESD classification level C4B
? 2% accuracy
? Low IQ: 31?A
? Fixed output voltage combination possible from
1.9V to 4.8V
? High PSRR: 68dB at 1kHz
? Stable with effective capacitance of 0.1?F
? Thermal shutdown and overcurrent protection
? Latch-up performance meets 100mA per AEC
Q100, level I
? Available in SOT-23-5 and SC70 packages

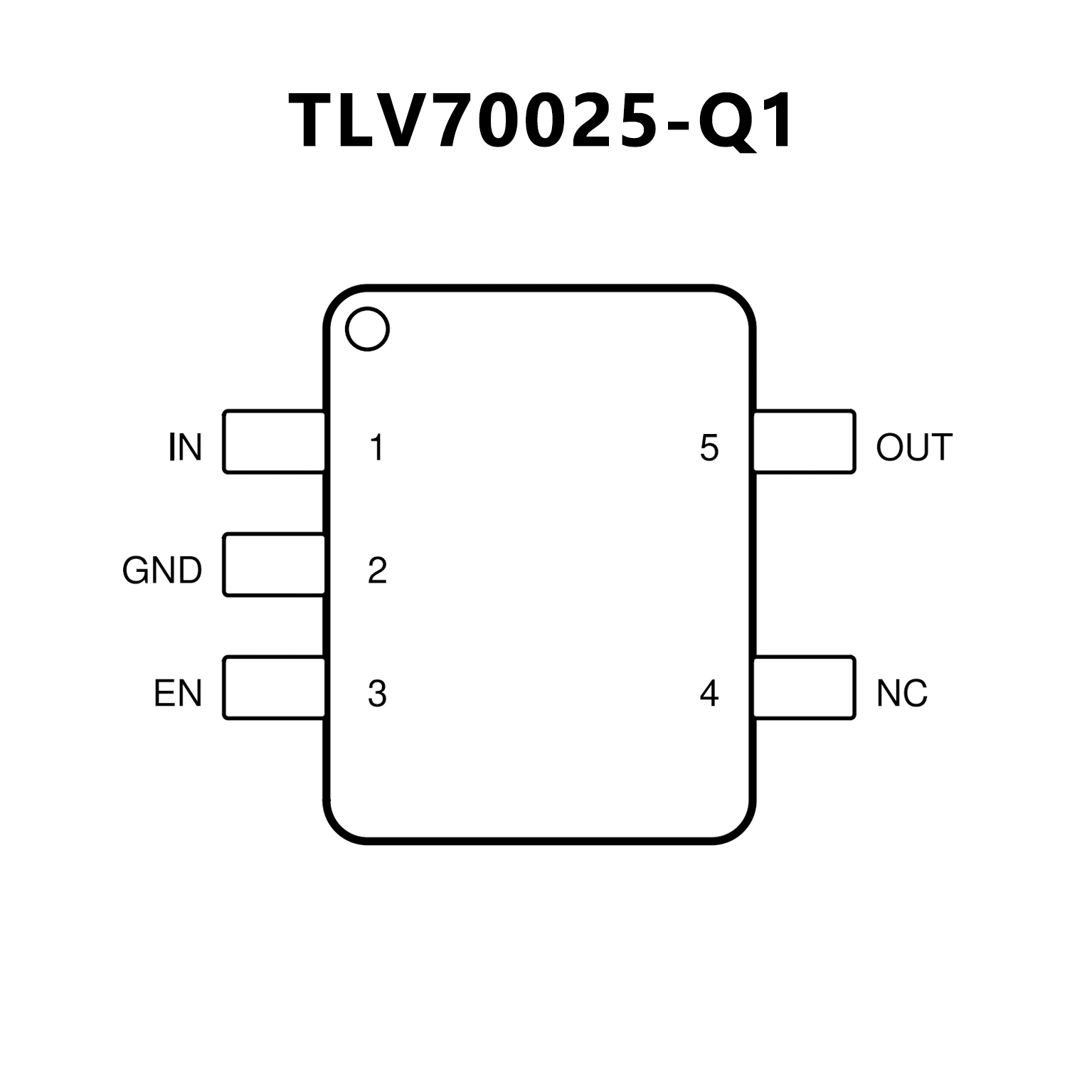

PIN CONFIGUTION
