3V-40V Vin, 150mA, 2.6uA IQ, Low-Dropout Regulator, SCT71401 Replace RS3002.
SCT71401
SCT71401.pdf
SCT71401.pdfFEATURES
? Wide Input Range: 3V-40V
? With up to 45V Transient Input Voltage
? Maximum Output Current: 150mA
? Output Voltage:
3.3V and 5V (Fixed Output)
Other Output Voltage Options
(Need contact SCT sales)
? Output Voltage Accuracy:
TJ= 25℃ : ±1%
TJ= -40℃~ 125℃ : ±2%
? Low Quiescent Current: 2.6uA
? Low Dropout Voltage ：
200mV at 50mA load current
613mV at 150mA load current
? Support Output Capacitors Range:
3.3uF~220uF
Low-ESR: 0.001Ω~ 5 Ω
? 550us Internal Soft-start Time
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Over-Temperature Protection
? Available Package:
SOT23-5 / SOT23-3 / SOT89-3

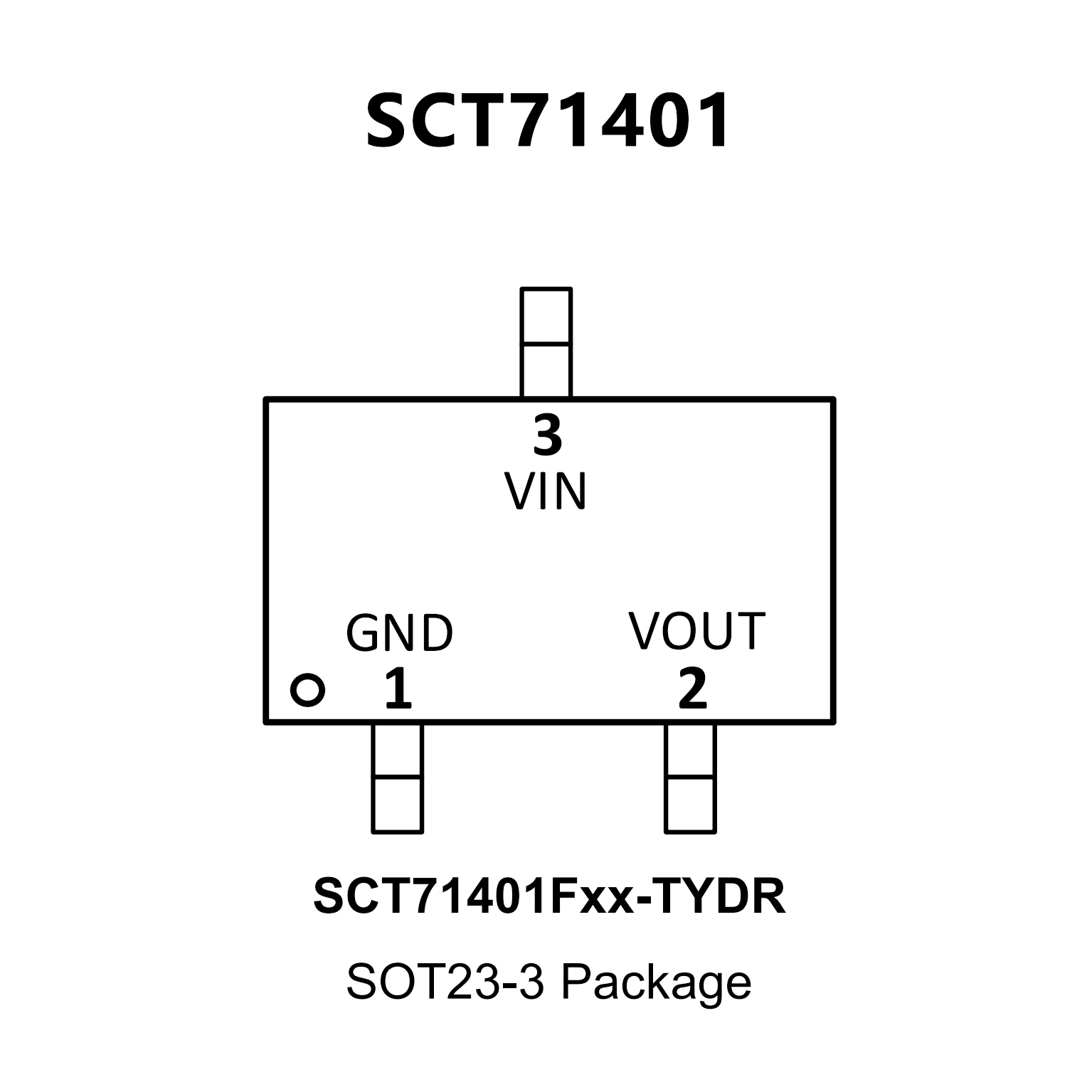

PIN CONFIGUTION
優勢替代
FEATURES
? Ultralow Quiescent Current IQ: 2.5?A Typical
at Light Loads 5?A Maximum at Light Loads
? 150mA Nominal Output Current
? Low Dropout Voltage
? Low Temperature Coefficient
? High Input Voltage (up to 36V)
? Output Voltage Accuracy: ±2.5% (Max at 25°C)
±1.0% (Class A Max at 25°C)
? Fixed 3.0V、3.3V、3.6V and 5.0V Output Voltage
? Operating Temperature Range: -40°C to +85°C
? Micro SIZE PACKAGES: SOT23-3、SOT23、
SOT89-3L 、SOT89-3L(L-Type) and SOT223

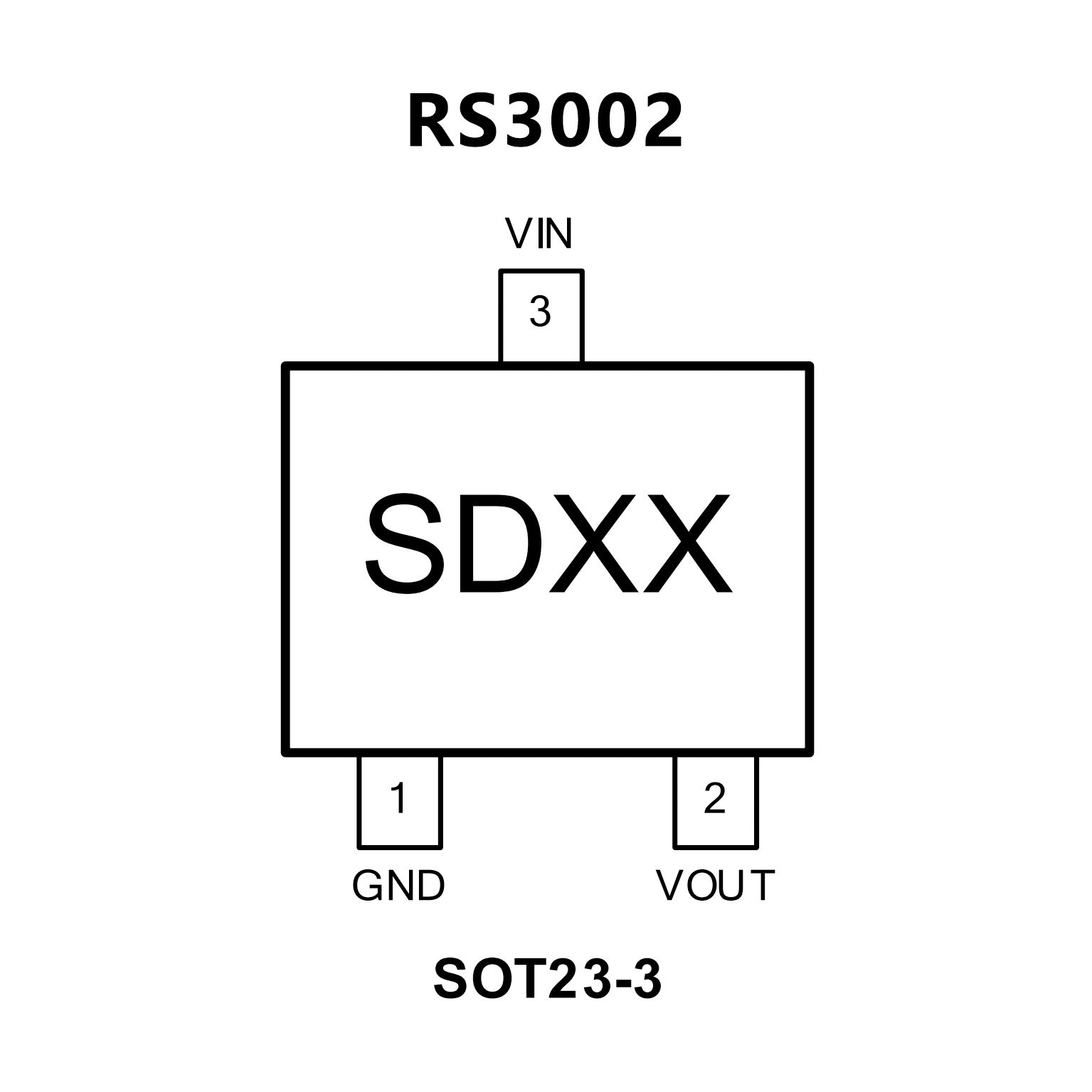

PIN CONFIGUTION
