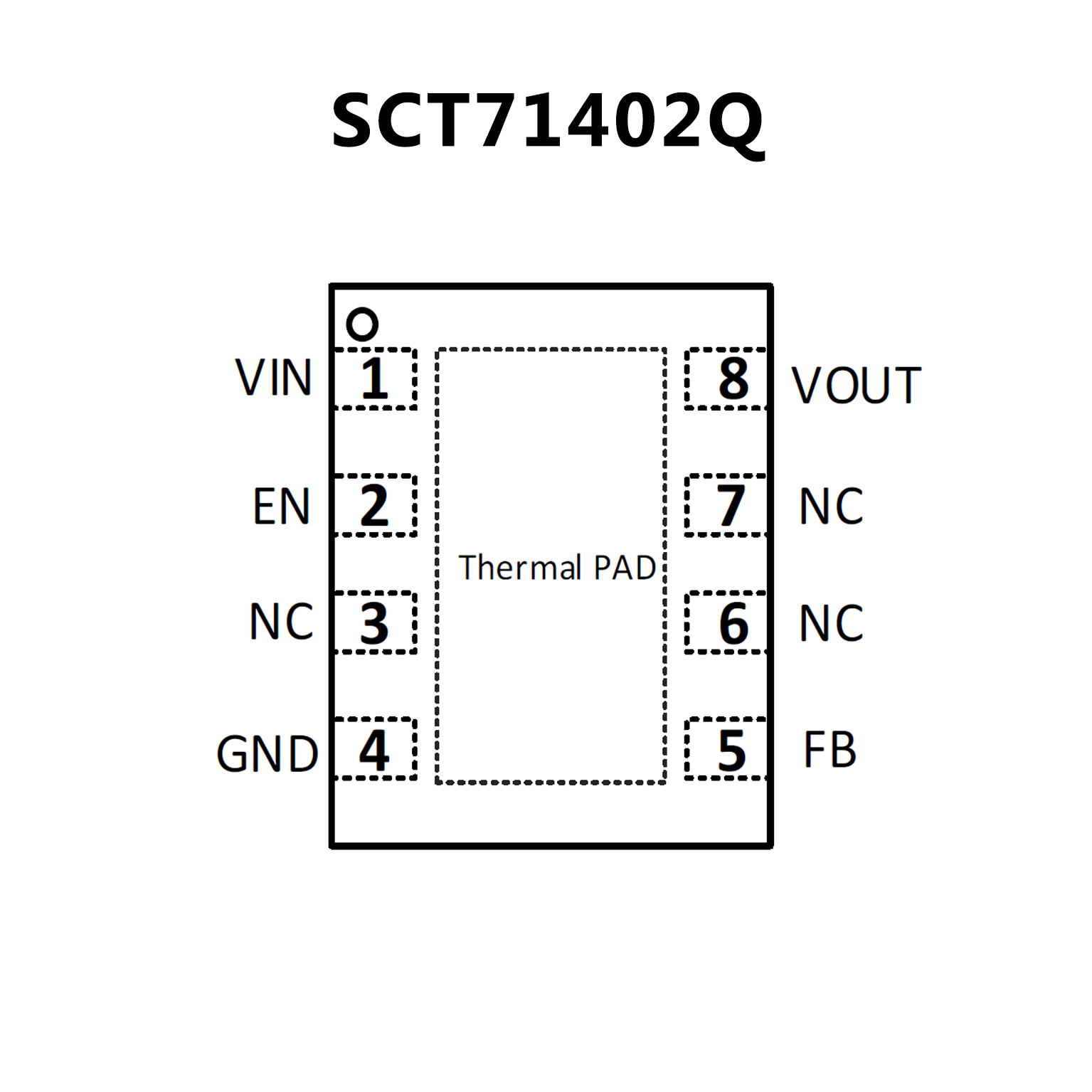

SCT71402Q.pdf? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
Device Temperature Grade 1:
-40°C to 125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C5
? Wide Input Range: 3V-40V
? With up to 45V Transient Input Voltage
? Maximum Output Current: 200mA
? Output Voltage: 1.215V~25V
? Output Voltage Accuracy:
TJ= 25℃ : ±1%
TJ= -40℃~ 150℃ : ±2%
? Ultra-Low Quiescent Current: 2.6?A
? Low Dropout Voltage ：
270mV at 200mA load current
? Support Output Capacitors Range:
3.3uF~220uF
Low-ESR: 0.001Ω~ 5 Ω
? 1.5ms Internal Soft-start Time
? Current Limit Protection with VIN_HIGH Control
? Precision Enable Threshold for Programmable Input Voltage Under-Voltage Lock Out Protection (UVLO) Threshold and Hysteresis
? Over-Temperature Protection
? Available Package: TDFN3X3-8

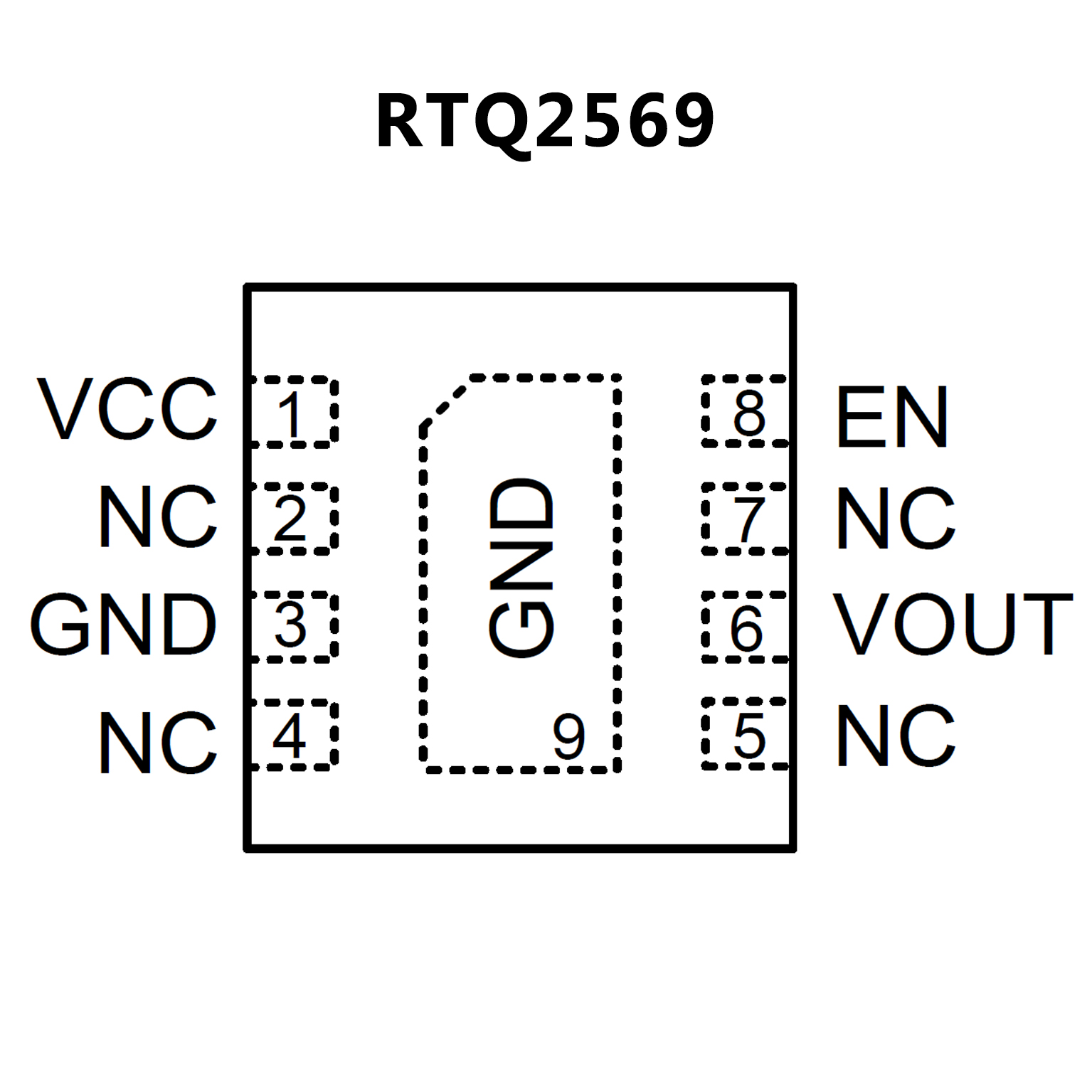

? AEC-Q100 Grade 1 Qualified
? Ultra low Quiescent Current 2?A (typ.)
? ±2% Output Accuracy
? 100mA Continuous Output Current
? Operating Input Voltage : 3.5V to 36V
? Low dropout voltage : 200mV at 10mA
? Fixed Output Voltage : 2.5V to 12V with 0.1V Per Step
? Current Limit Protection
? Over-Temperature Protection
? RoHS Compliant and Halogen Free
