SCT71403.pdf? Wide Input Range: 3V-40V
? With up to 45V Transient Input Voltage
? Maximum Output Current : 300mA
? Output Voltage:
- 3.3V and 5V (Fixed Output)
- 1.2V, 1.8V, 2.5V, 3V, 4.2V and 4.5V
(Need contact SCT sales)
? Output Voltage Accuracy:
- T=25℃ : ±1%
- T= -40℃~ 125℃ : ±2%
? Low Quiescent Current : 2.4uA
? Low Dropout Voltage ：
- 230mV at 100mA load current
- 470mV at 200mA load current
? Support Output Capacitors Range:
- 3.3uF~220uF
- Low-ESR : 0.001Ω~ 5 Ω
? 550us Internal Soft-start Time
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Power-Good Feature is available
? Over-Temperature Protection
? Available Package:

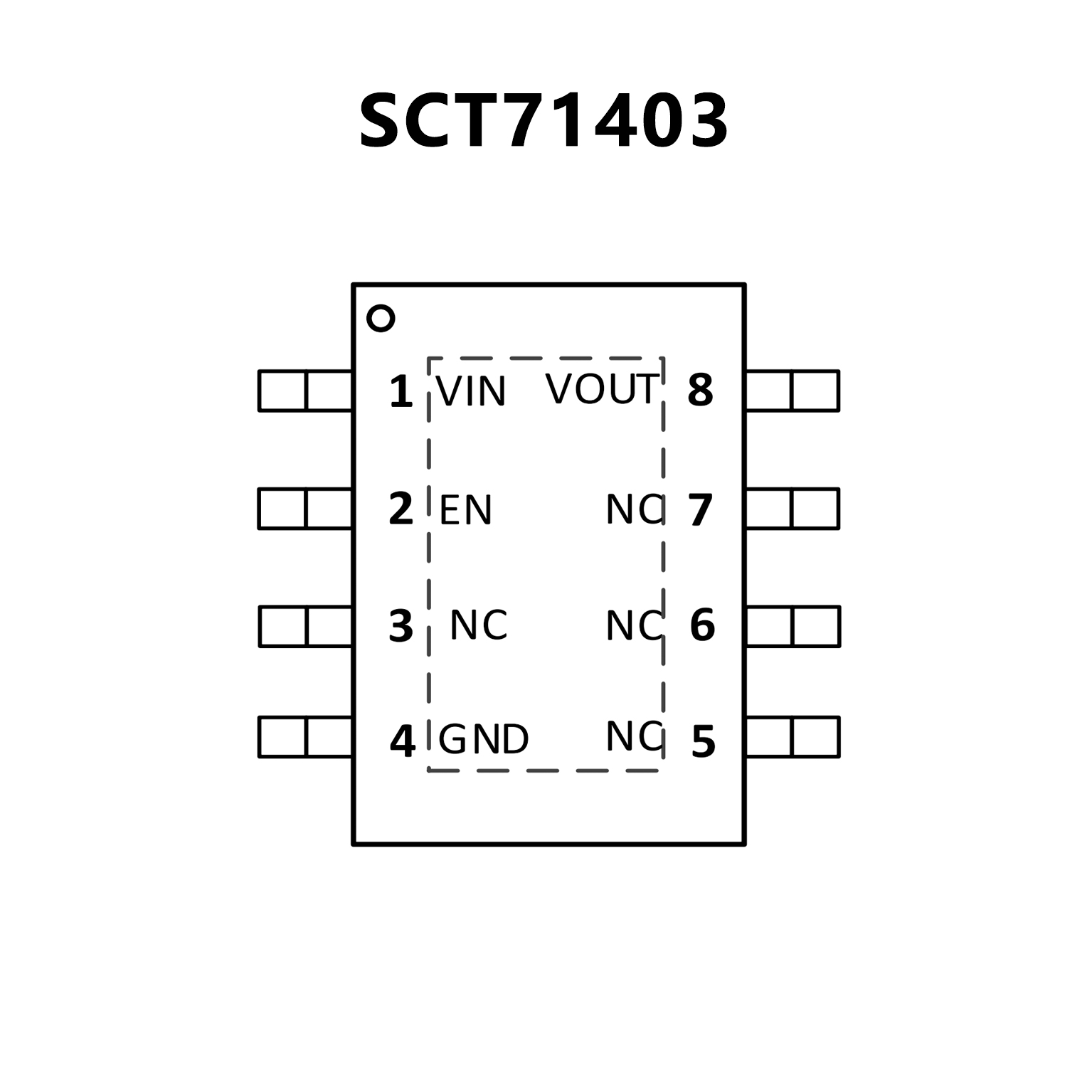

TSOT23-5 / TDFN2x2-6 / eMSOP3x3-8
? AEC-Q100 Qualified (Grade 1) for Automotive Applications
