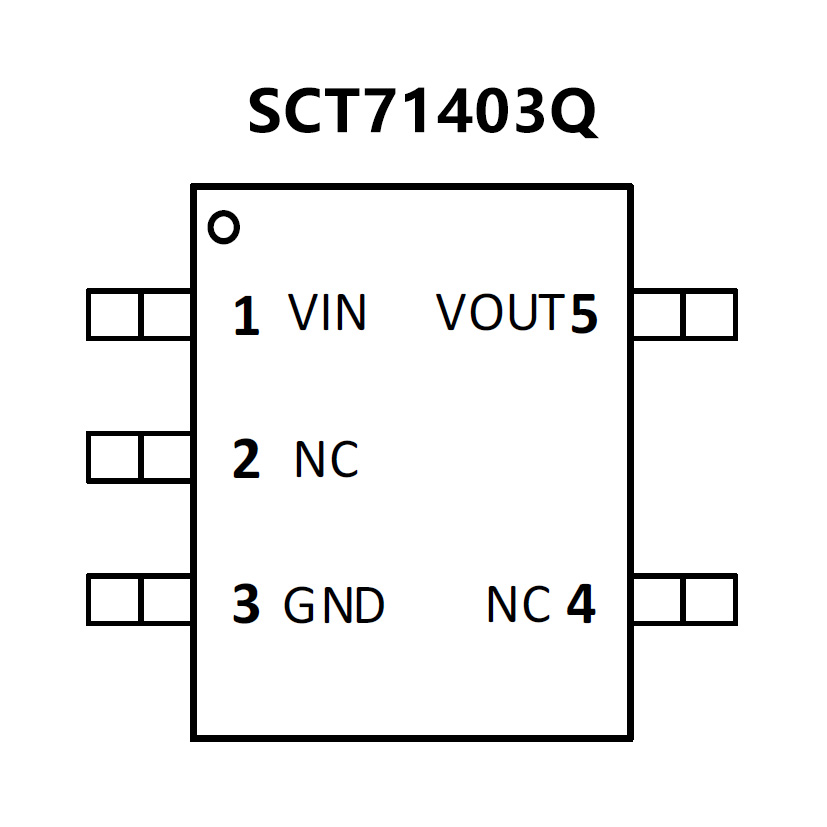

SCT71403Q.pdf? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C5
? Wide Input Range: 3V-40V
? With up to 45V Transient Input Voltage
? Maximum Output Current : 300mA
? Output Voltage:
? 3.3V and 5V (Fixed Output)
? 1.2V, 1.8V, 2.5V, 3V, 4.2V and 4.5V
(Need contact SCT sales)
? Output Voltage Accuracy:
? T=25℃ : ±1%
? T= -40℃~ 150℃ : ±2%
? Low Quiescent Current : 2.4uA
? Low Dropout Voltage ：
? 230mV at 100mA load current
? 470mV at 200mA load current
? Support Output Capacitors Range:
? 3.3uF~220uF
? Low-ESR : 0.001Ω~ 5 Ω
? 550us Internal Soft-start Time
? Integrated Short-Circuit Protection with
OCFB (Over Current Fold-back) Feature
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Power-Good Feature is available
? Over-Temperature Protection
? Available Package:
SOT23-5 / TDFN2x2-6 / eMSOP3x3-8 /TDFN3x3-8

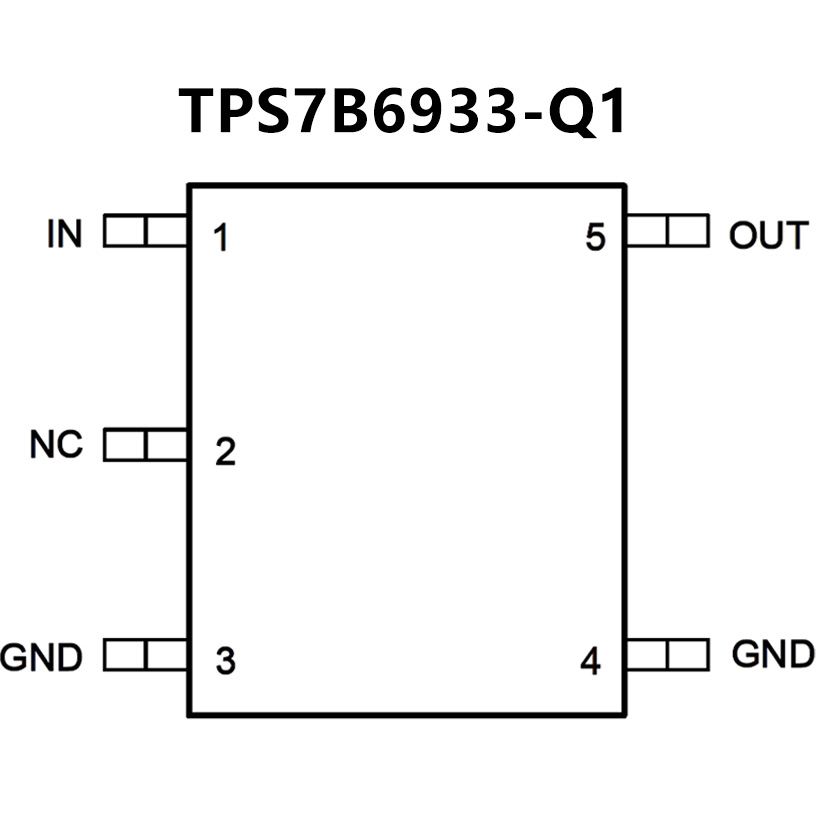

? ualified for Automotive Applications
Device Temperature Grade 1: –40°C to
125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C4B
? 4 to 40-V Wide VI Input Voltage Range With up to
45-V Transient
? Maximum Output Current: 15
0 mA
15 ?A Typical at Light Loads
25 ?A Maximum Under Full Temperature
? 450-mV Typical Low Dropout Voltage at 100
mA Load Current
? Stable With Low ESR Ceramic Output Capacitor
(2.2 to 100 ?F)
? Fixed 2.5-V, 3.3-V, and 5-V Output Voltage Options
? Integrated Fault Protection:
Thermal Shutdown
Short-Circuit Protection
? Packages:
4-Pin SOT-223 Package
5-Pin SOT-23 Package
