60V Input, 100mA Output Current, Low Quiescent Current LDO, SCT71601A00Q Replace TPS79801-Q1.
SCT71601A00Q
SCT71601A00Q.pdf
SCT71601A00Q.pdfFEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
? - Device Temperature Grade 1: -40°C to 125°C
? Wide Input Range: 3V-60V
? Maximum Output Current: 100mA
? Adjustable Voltage: 1.2V-30V
? Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
? Low Quiescent Current: 4 uA
? Ultra-Low Shutdown Current: 0.23uA
? Low Dropout Voltage ：
- 60mV at 20mA load current
- 340mV at 100mA load current
? 720us Internal Soft-start Time
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Enable pin is available
? Over-Temperature Protection
? Active Output Discharge
? Available Package: eMSOP3x3-8

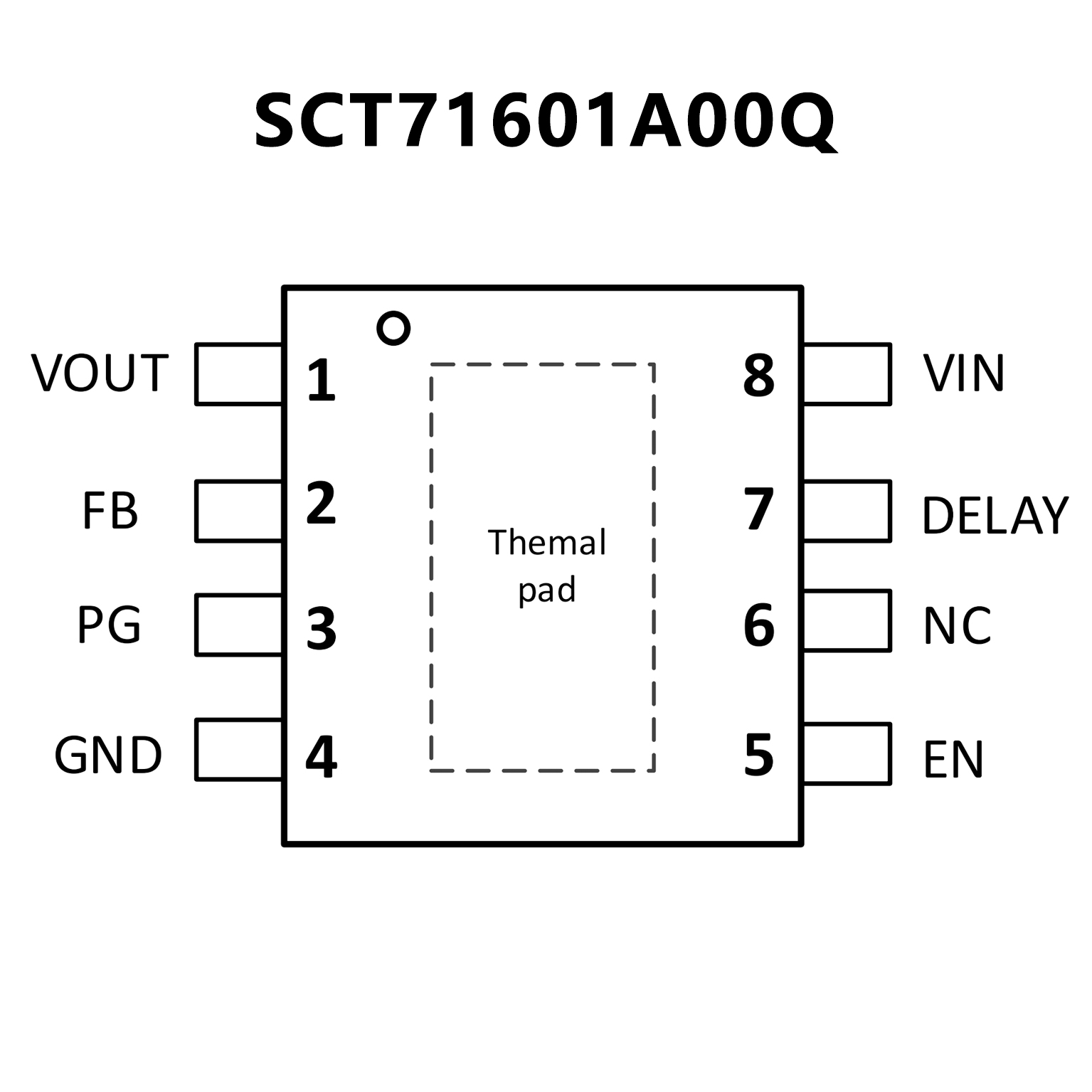

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Qualified for Automotive Applications
? Wide Input Voltage Range: 3 V to 50 V
? Low Quiescent Current: 40 ?A (Typical)
? Low Dropout Voltage: 300 mV (Typical)
? Output Current: 50 mA
? No Input Protection Diodes Needed
? Adjustable Output From 1.275 V to 28 V
? 1-?A Quiescent Current in Shutdown
? Stable With 1-?F Output Capacitor
? Stable With Aluminum, Tantalum, or Ceramic
Capacitors
? Reverse Input-Battery Protection
? Reverse Output Current Flow Protection
? Thermal Limiting
? Available in an 8-Pin MSOP-PowerPAD IC Package

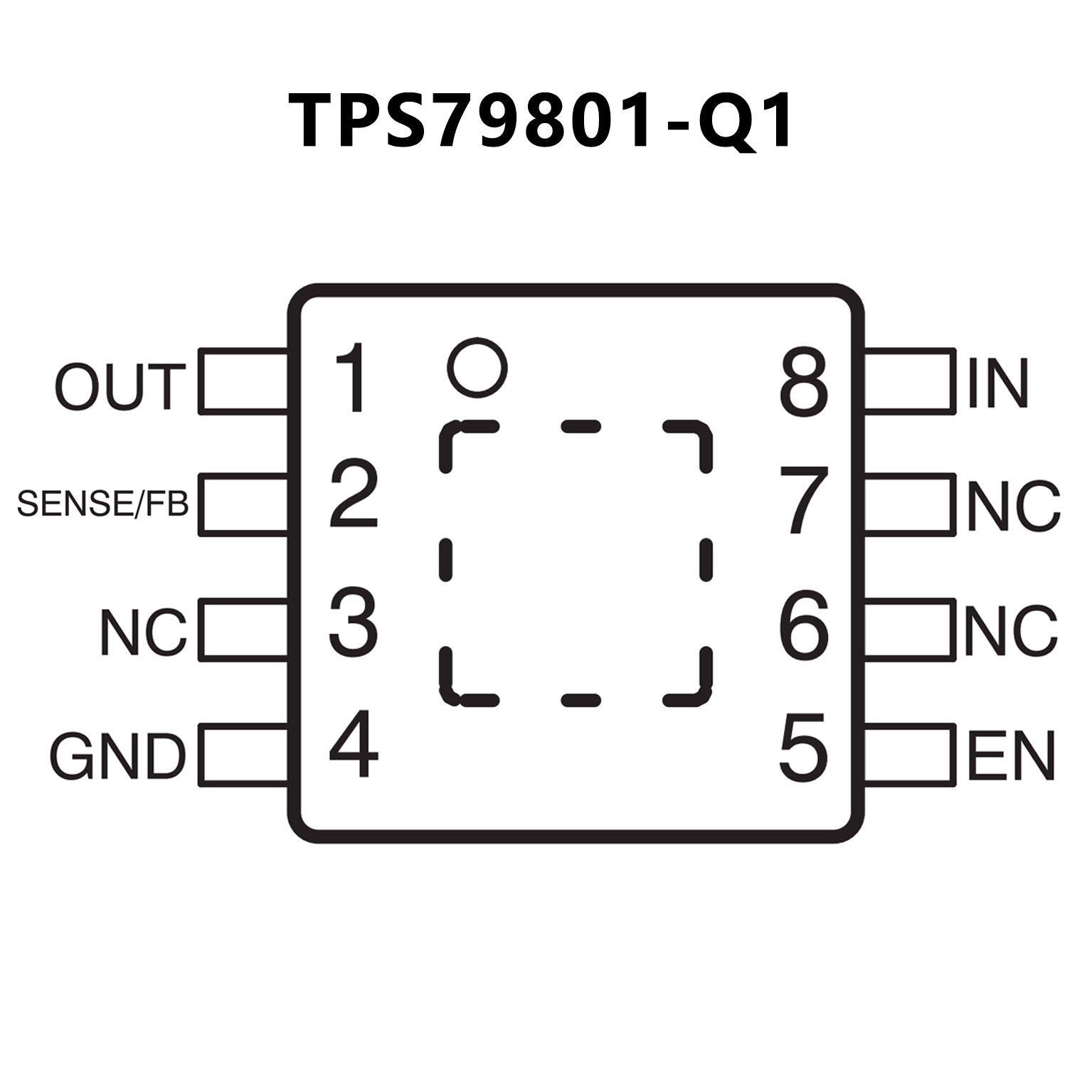

PIN CONFIGUTION
