80V Input, 100mA Output Current, Low Quiescent Current LDO, SCT71801 Replace TPS7A16A.
SCT71801
SCT71801.pdf
SCT71801.pdfFEATURES
? Wide Input Range: 3V-80V
? Maximum Output Current: 100mA
? Adjustable Voltage: 1.2V-30V
? Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
? Low Quiescent Current: 4 uA
? Ultra-Low Shutdown Current: 0.23uA
? Low Dropout Voltage ：
- 60mV at 20mA load current
- 340mV at 100mA load current
? 720us Internal Soft-start Time
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Enable pin is available
? Over-Temperature Protection
? Active Output Discharge
? Available Package: eMSOP3x3-8

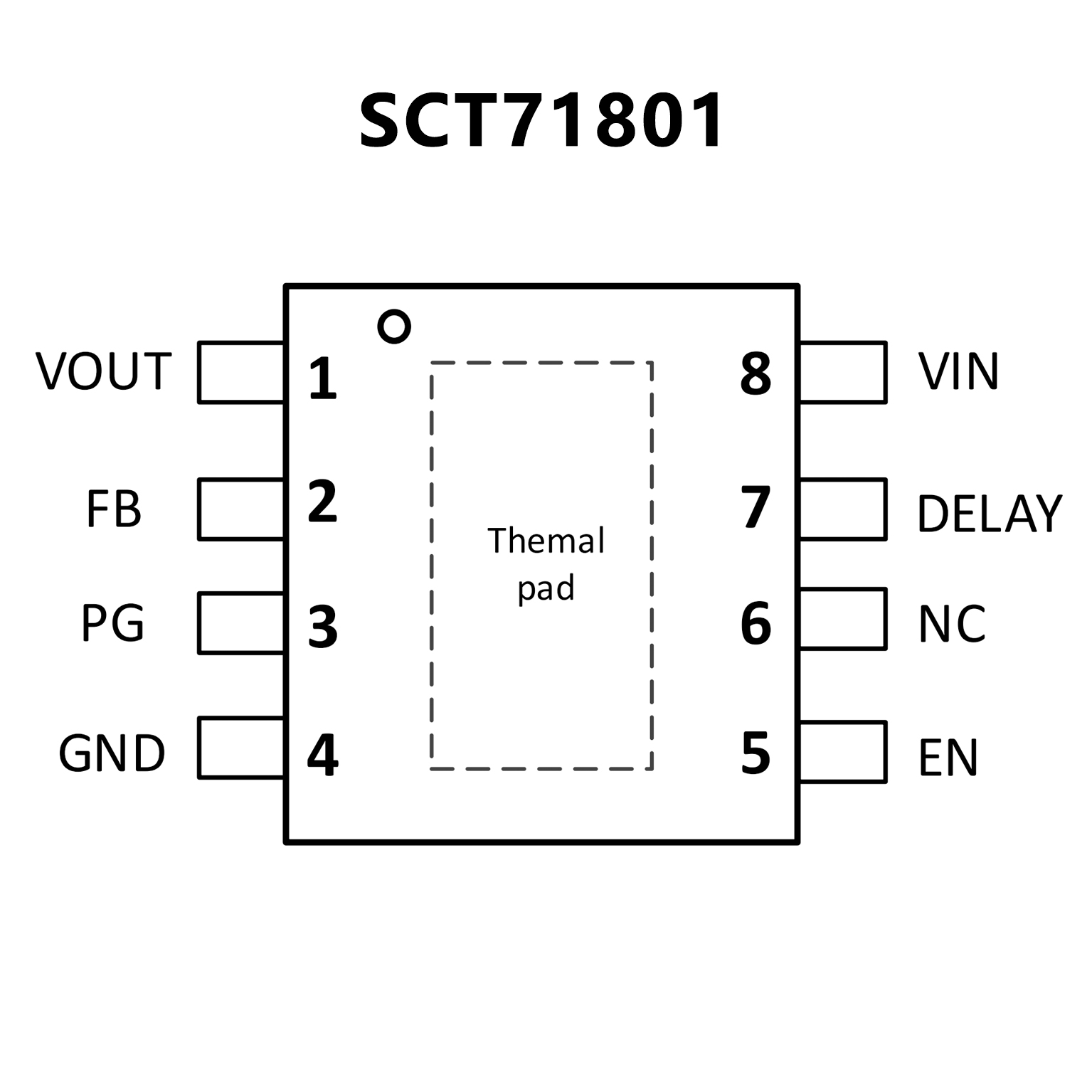

PIN CONFIGUTION
優勢替代
FEATURES
? Wide input voltage range: 3 V to 60 V
? Ultra-low quiescent current: 5 μA
? Quiescent current at shutdown: 1 μA
? Output current: 100 mA
? Low dropout voltage: 60 mV at 20 mA
? Accuracy: 2%
? Available in:
– Fixed output voltage: 3.3 V, 5 V
– Adjustable version: Approximately 1.2 to 18.5 V
? Power-good with programmable delay
? Current-limit and thermal shutdown protections
? Stable with ceramic output capacitors: ≥ 2.2 ?F
? Package: High-thermal-performance HVSSOP-8
PowerPAD?
PIN CONFIGUTION
